Equipment name

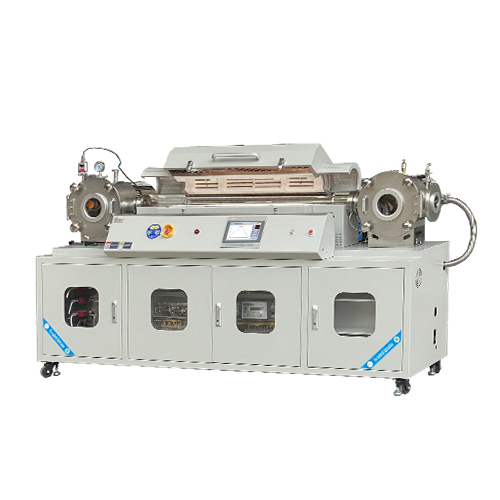

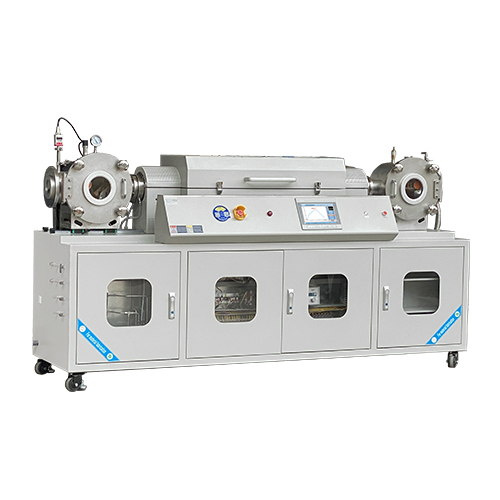

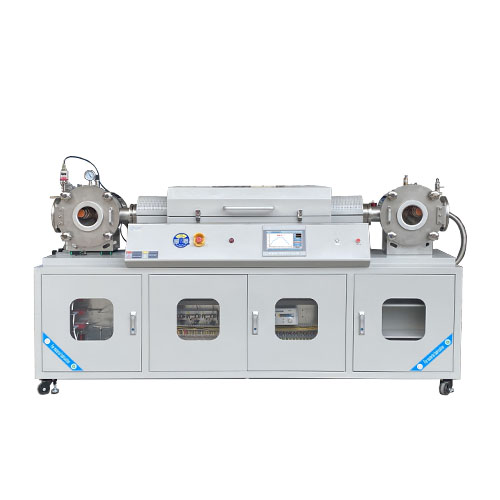

Roll to roll two-dimensional material preparation system

Specification and model

NBD-O1200-100TP3D4ZY-N

power supply

AC380V 50/60HZ

rated power

10KW

Number of temperature zones

Three temperature and three control

precision

±1℃

heating element

Alloy heating wire

sensor type

K-type thermocouple with a diameter of 2 * 420mm

Tmax

1200℃

Long term working temperature

1100℃

Recommended heating rate

≤10℃/min

Size of furnace temperature zone

Φ150*（200+400+200）mm

Furnace tube specifications

quartz tubeΦ100*1600*3mm

Four channel proton flowmeter control system

Voltage: AC220V/50HZ
Power: 23W nitrogen calibration (automatic gas exchange)
One way, two way, three way: S500 1000SCCM with a diameter of 6.35, double card sleeve, 2-meter short wire, fluorine rubber seal, nitrogen calibration
Four way: S500 3SLM with a diameter of 6.35, double card sleeve, 2-meter short wire, fluorine rubber seal, nitrogen calibration

Low vacuum unit

Vacuum pump pumping rate: ≥ 4.4L/s
Negative pressure and constant pressure range: 13-12000pa
Ultimate vacuum degree of vacuum chamber: ＜ 5 * 10-2 Torr (mechanically pumped for 20 minutes in cold state)

Roll to roll mechanism

A roll of copper foil weighs about 2KG, with a width of 80mm and a thickness of 0.04mm. Its moving speed is adjustable from 1-100mm/min;

Furnace body size

2700mm in length, 1400mm in height, and 900mm in depth

Furnace weight

About 530KG

control system

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;
2. Pre order sintering is available to achieve unmanned sintering process curve sintering;
3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;
4. Capable of remote control and real-time observation of equipment status;
5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

Equipment Details

Vacuum Chamber

Equipment usage precautions

1. When the furnace temperature of the equipment is≥300℃, it is forbidden to open the furnace to avoid injury;
2. Minor cracks caused by continuous use of the furnace are a normal phenomenon and do not affect the normal use of the equipment;

Service and Support

One year limited warranty with lifetime support (warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below).
