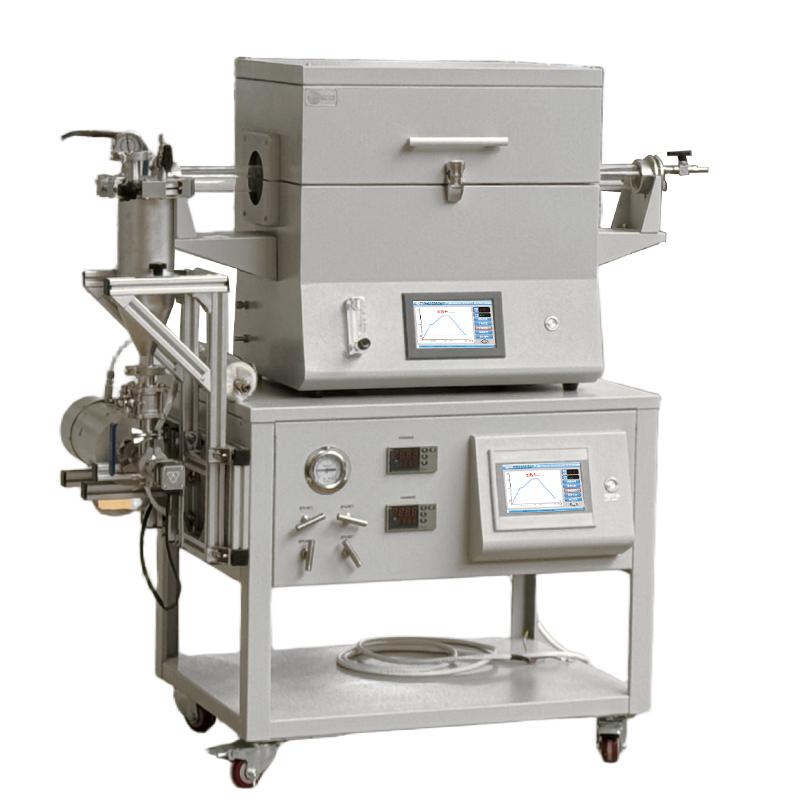

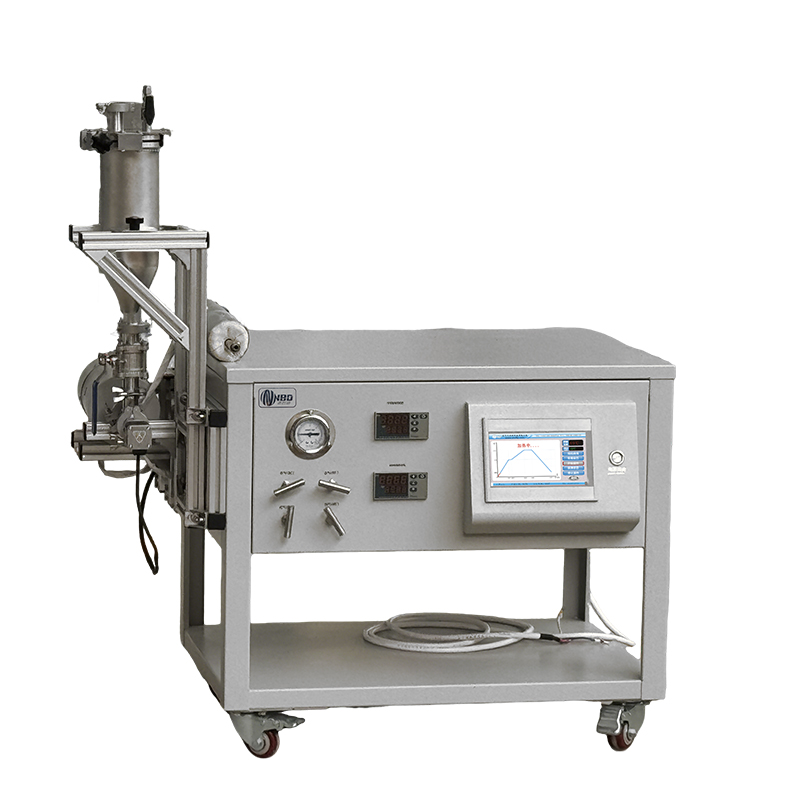

Gaseous sublimation furnaceGaseous sublimation furnace

Add Time： 2025-09-05 View：409

Gas sublimation furnace is a term in the field of materials science, chemistry or physicochemical. It describes the process of a substance (usually a solid) directly changing into a gaseous state without passing through a liquid, and this process occurs in a gaseous environment (such as a specific atmosphere, vacuum or carrier gas) or is closely related to the behavior of the gaseous phase.

Product Details

Application Field

Product Video

Application Cases

	Equipment characteristics: High-purity purification capacity: This is the most important function of the gas phase sublimation furnace. By controlling the temperature gradient, the target substance sublimates and condenses in the cold zone, while the impurities (volatile or non-volatile) stay in the source zone or are distributed in different temperature zones, so as to achieve effective separation and improve the material purity. Controlled temperature gradient: The equipment is designed with clear "hot zone" (sublimation zone) and "cold zone" (condensation zone) inside. A stable and adjustable axial or radial temperature gradient is formed through independent temperature control in the multi-temperature zone to precisely control the location and rate of sublimation and condensation. Closed Vacuum/Atmosphere: The furnace body is a fully sealed structure, which can be pumped to a high vacuum (10 ⁻ - 10 ⁻ Pa) or fed with high-purity inert gas (such as Ar, N) to prevent the material from oxidizing, decomposing or reacting with the ambient gas at high temperature, so as to ensure the purity of the purification or growth process.
Equipment name	Gaseous sublimation furnace
Power supply	AC 220V
Rated power	1.2KW
control accuracy	±1℃
Heating element, heating element	heat tracing cable
Tmax	400℃
Volume of feed tank	2L
Four-way mass flow controller	Way air mixing tank: Propylene 500SCCM; Hydrogen 200SCCM; Argon 500SCCM Way to sublimation tank: argon 500SCCM
control system		1. Sintering process curve setting: the setting curve is displayed dynamically, multiple process curves can be pre-stored for equipment sintering, and each process curve can be set freely; 2. Sintering can be reserved to realize unattended sintering process curve sintering; 3. Display sintering power voltage and other information in real time, record sintering data and export paperless records; 4. Remote control and real-time observation of equipment status; 5. Temperature correction: the difference between the main control temperature and the sample temperature, and nonlinear correction shall be carried out throughout the sintering process.
Temperature accuracy	+/- 1℃
Net weight	Approximately 72KG
Precautions for equipment use	1. When the equipment hearth temperature is ≥ 300 ℃, do not open the hearth to avoid injury; 2. Slight cracks caused by continuous use of the furnace are normal and do not affect the normal use of the equipment.
Service support	One year limited warranty with lifetime support (Consumable parts, such as processing tubes and O-rings, are not covered by this warranty. Please order replacement parts from the relevant products below.)
