Mini molten salt furnace

Add Time： 2025-10-29 View：20

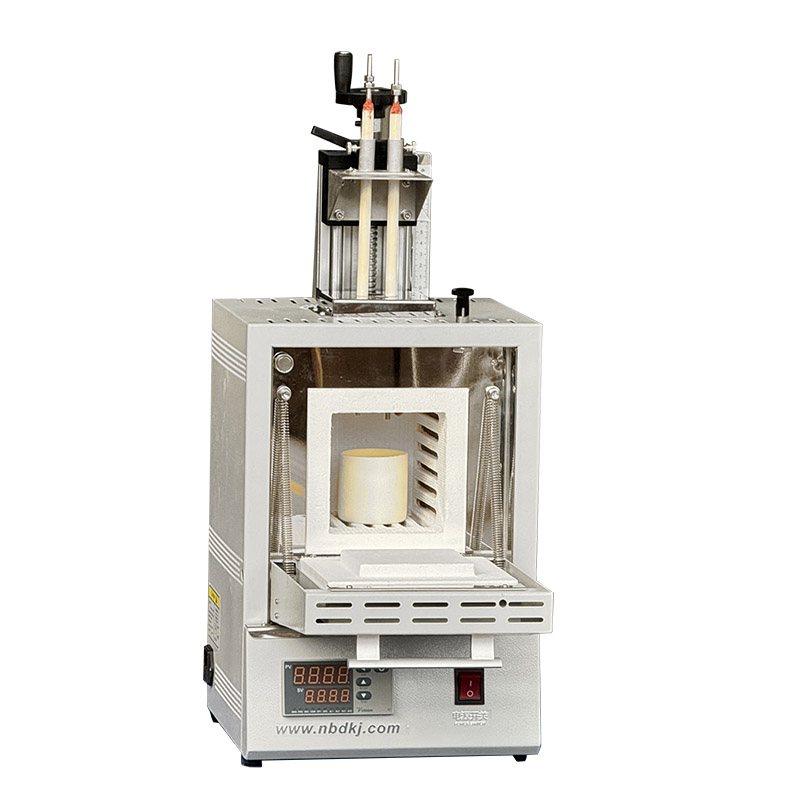

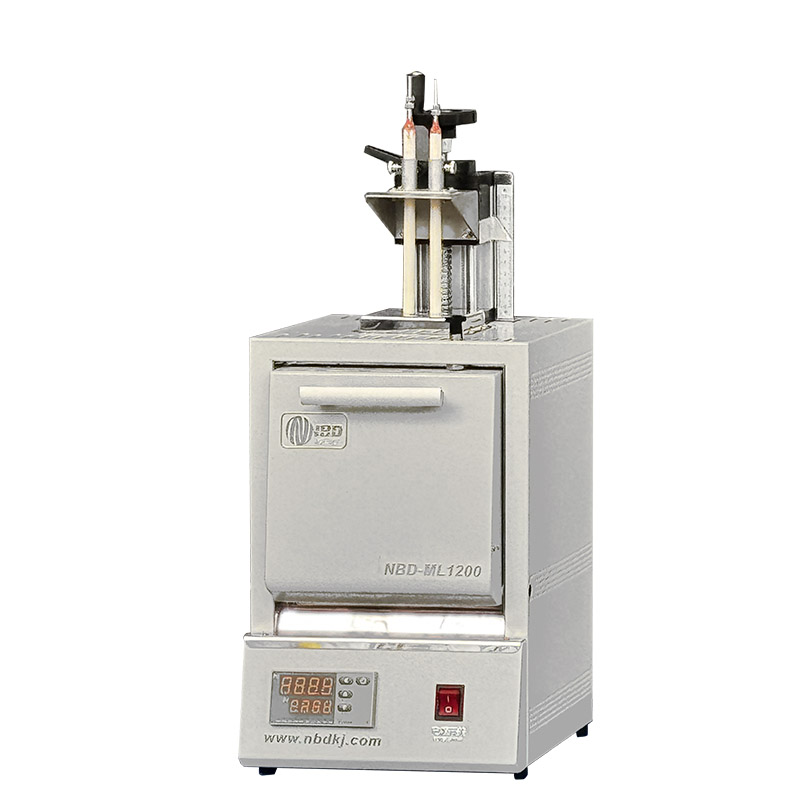

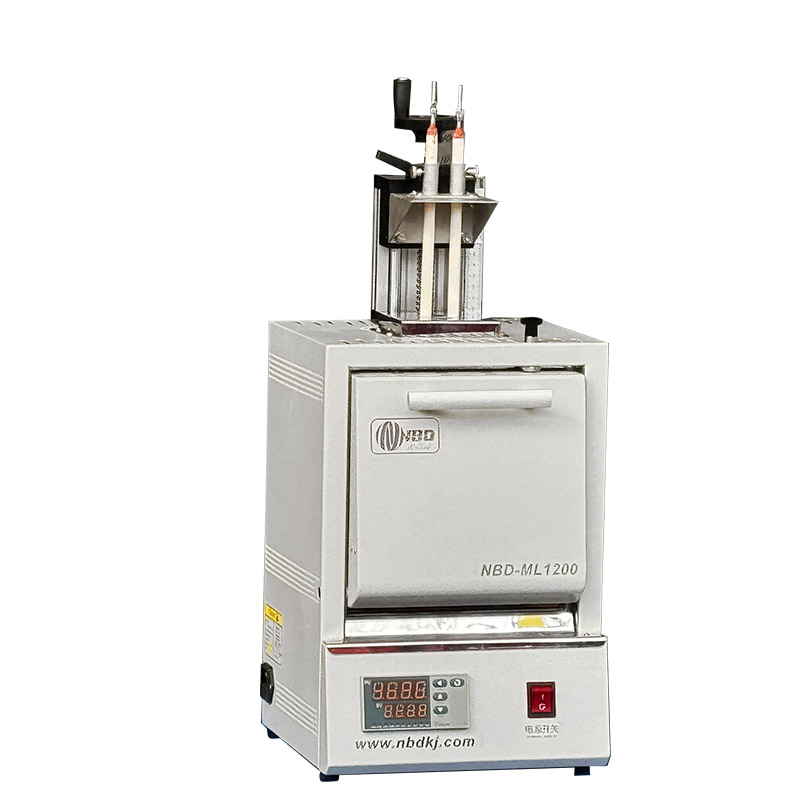

Mini molten salt furnace is a compact and functionally integrated high-temperature experimental equipment designed for small-scale molten salt electrochemical or high-temperature reaction research in limited spaces such as small glove boxes or fume hoods. It combines a micro heating furnace with a manually adjustable electrode lifting system, achieving precise control of electrode position through a handwheel, making it particularly suitable for laboratory exploratory research, teaching demonstr...

Product Details

Application Field

Product Video

Application Cases

	Equipment features: 1. Mini Compact Design The overall size is small (usually<40cm in height), occupying very little space, and can easily fit into a small glove box or standard fume hood, suitable for laboratories with limited space. 2. Handwheel lifting electrode Equipped with a precision handwheel adjustment device, the electrode rod is driven up and down by a screw to achieve smooth and position adjustment, facilitating precise control of electrode immersion depth and spacing. 3. Integrated structure The heating furnace, electrode holder, and electrode tube are integrated into one, with a stable structure, easy installation, and reduced external connection and leakage risks. 4. High temperature performance Using resistance wire heating, the temperature can reach 800-1100 ℃, meeting the melting needs of common molten salts such as chloride and fluoride eutectic salts. 5. Small sample size The reaction chamber is small, requiring only a few grams to tens of grams of molten salt to conduct experiments, saving expensive or sensitive materials.
Device Name	Mini molten salt furnace
Specification Model	NBD-ML1200-10CI（RY）
power supply	AC220V 50HZ
rated power	1.5KW
sensor type	Type K thermocouple
Tmax	1200℃
rated temperature	1150℃
Recommended heating rate	≤10℃/min
Size of furnace temperature zone	Length 100 * Height 100 * Depth 100mm
Maximum lifting stroke	60mm
Crucible specifications	Corundum crucibleφ60*60mm
Corundum crucible	Φ10*314mm M5screw
Furnace body size (with lifting mechanism)	长256高585深265mm
heating element		Alloy resistance wire
temperature accuracy	±1℃
Net weight	14KG
Equipment usage precautions	1. When the furnace temperature of the equipment is ≥ 300 ℃, it is forbidden to open the furnace to avoid injury; 2. Minor cracks caused by continuous use of the furnace are a normal phenomenon and do not affect the normal use of the equipment;
Service Support	One year limited warranty with lifetime support (warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below).
