Device Name

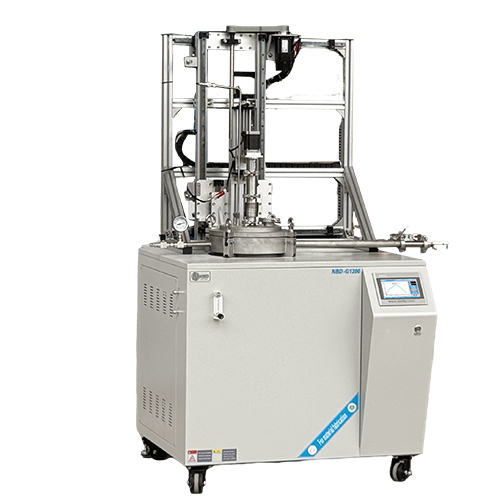

Molten salt heating and stirring device

Specification Model

NBD-G1200-270TIDFN-350

power supply

AC380V 50HZ

rated power

Total power: 14.34KW Heating power: 12.5KW

Number of temperature zones

single temperature single control

temperature control accuracy

±1℃

heating element

Alloy resistance wire

sensor type

Type K thermocouple

Tmax

1200℃

Long term use temperature

≤1150℃

Recommended heating rate

≤10℃/min

Size of furnace temperature zone

Φ350*430mm(Bottom heating+circular heating around)

Reactor specifications

310S stainless steel material, size Φ 273 * 700mm (inner diameter Φ 261)

Mixing rod rotation speed

Up to 200rpm adjustable

Flowmeter type

1-channel float flowmeter 0.1-0.8L/min

air intake

Φ 6.35mm double card sleeve joint

exhaust vent

20mm pagoda head

Vacuum pump specifications

DRV16 KF25

Water cooling machine capacity

10L

Furnace body size

Length 1250 * Height 1820 * Depth 905mm

Furnace weight

约300KG

control system

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;

2. Pre order sintering is available to achieve unmanned sintering process curve sintering;

3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;

4. Capable of remote control and real-time observation of equipment status;

5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

Appointment sintering

Optimize equipment utilization, ensure sintering process stability, save waiting time, and achieve efficient and orderly sample preparation.

data storage

Ensure data security, integrity, standardized management, and efficient retrieval

Nonlinear temperature correction

By using algorithms to nonlinearly correct the temperature deviation between the control point and the sample due to their different positions in the temperature field, the consistency between the control temperature and the sample temperature is improved, the operation is simplified, and the accuracy of experimental data is enhanced.

Multiple sets of exclusive process programs can be pre-set

Multiple types of experiment specific temperature programs can be preset to ensure experimental repeatability and ease of operation, support process optimization and data tracing, adapt to team collaboration and technical inheritance, greatly improving experimental efficiency and design flexibility.

remote control

You can log in to the control system anytime and anywhere through computers, mobile phones, and other terminals to view the operating status of the heating furnace (temperature, pressure, heating rate, etc.), and remotely adjust parameters and start/pause programs according to experimental needs. No need to travel back and forth to the laboratory at night or on holidays to meet the parameter tuning needs during the experimental process; Real time monitoring of key experimental processes can also be achieved during cross regional business trips, significantly reducing ineffective commuting time and allowing researchers to allocate work energy more efficiently.

Pressure measurement and monitoring

Mechanical pressure gauges are used, and the gauge housing is of an airtight structure, which can effectively protect the internal components from environmental influences and debris intrusion. At the same time, it has strong corrosion resistance and high temperature resistance.

float flow meter

Equipment usage precautions

When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure;

When used under vacuum, it is recommended that the equipment should not exceed a temperature of 800 ℃. If you have a higher temperature requirement, please contact us for consultation;

Before using this device, please carefully read the precautions for using corundum products;

Service Support

1年质保，提供终身支持（保修范围内不包括易耗部件，例如炉管和密封圈等）。
