Equipment introduction:

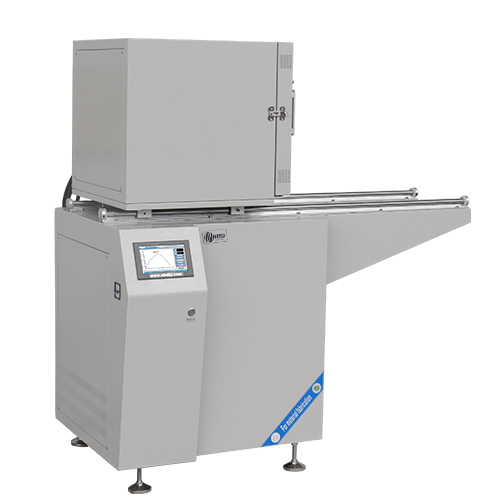

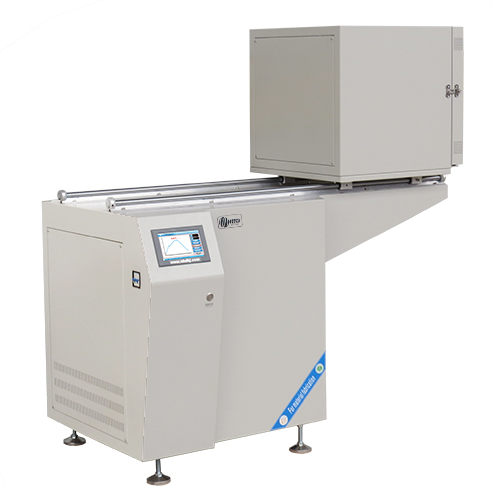

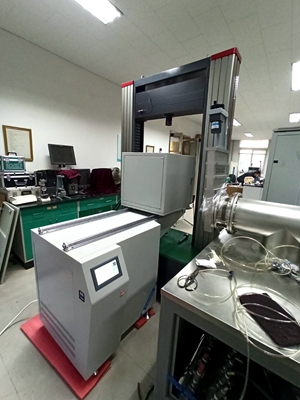

The equipment is a customized heating system for the universal testing machine. The equipment adopts split-type slide rail design, which is convenient to cooperate with the universal testing machine to do various heating work. High purity alumina fiber furnace and high density silicon-molybdenum heating elements ensure high heating efficiency.
The intelligent human-computer interaction touch control system developed by NOBODY makes the complex heating parameter setting and process control extremely simple and intuitive.

1. The double-layer air-cooled structure greatly reduces the surface temperature of the shell;

2. High purity heating element with excellent acid and corrosion resistance;
3. The use of vacuum forming process made of refractory insulation materials, small heat loss, effectively reduce the use of equipment power;
4. Modular mechanism, durable and easy to maintain;
5. Touch screen operation, intuitive display of temperature curve.

Electrical Spec.

Three-phase 380V; 50HZ

Tmax

1150℃

rated power

 thermocouple

Furnace size

 Recommended heating rate

 10℃/min

Temp. Accuracy

±℃

Control system

1, sintering process curve setting: dynamic display setting curve, equipment sintering can prestore multiple process curves, each process curve can be set freely;
2, can be reserved sintering, to achieve unattended sintering process curve sintering;
3, real-time display of sintering power and voltage information and record sintering data, and can be exported to achieve paperless recording;
4, with remote control, real-time observation of equipment status;
5, temperature correction: the difference between the main control temperature and the sample temperature, the whole sintering process for nonlinear correction.

heating element

Excellent acid and rot resistance

Cautions

1. When the furnace temperature of the equipment is ≥300℃, do not open the furnace to avoid damage;

2. Slight cracks caused by continuous use of the furnace are normal and do not affect the normal use of the equipment;

Service

One year limited warranty with lifetime support (warranty does not include consumable parts)
