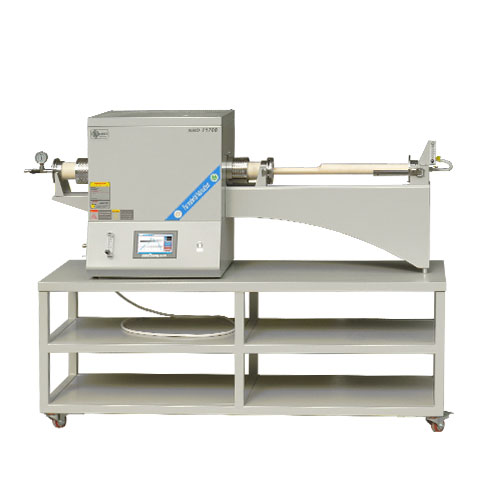

Push-pull tube sintering furnace

Release time：2021-03-02 Number of views：1078

Equipment introduction：

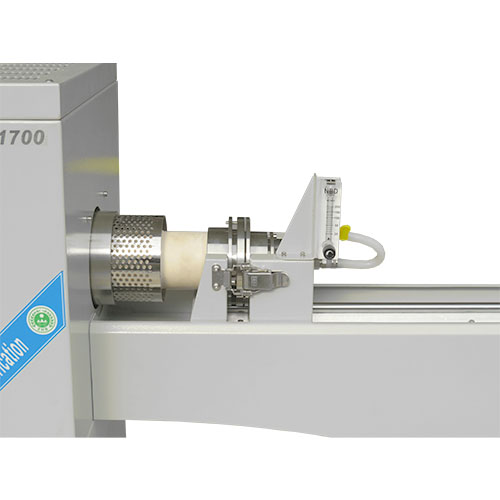

Push-pull tube sintering furnace not only has excellent shape and technology, but also has very precise temperature control. It adopts acid and alkali resistant, high temperature resistant, long service life corundum tube as the carrier of heating and sealing, so that the equipment is more stable. At the same time, this tubular furnace through the slide rail to drive the material table, to achieve the loading and unloading of materials convenient and fast function.

Configuration

	1. The furnace tube made of high purity alumina has excellent corrosion resistance and high temperature resistance. 2. High purity Al2O3 fiber refractory insulation material, insulation effect is superior, effectively reduce the power consumption of equipment; 3. The furnace body adopts double-layer air-cooled structure technology, greatly reducing the surface temperature of the shell; 4. Adopt intelligent PID fuzzy temperature control, 7 inch touch screen centralized control, can intuitively display the "time-temperature" curve; 5. In and out of the material using the sliding rail tube loading platform, progress material is convenient and fast.
Model	NBD-T1700-80TIZ
Electrical Spec	AC220V 4.5KW
Tmax	1700 ℃
Max working temps.	1650 ℃
Heating rate	≤ 20 ℃/min
Heating length	310mm
Tube size	Φ80*1000mm
Counter size	Φ50*660mm bevel 230mm
Temperature field distribution		As shown in the figure: This is the temperature zone diagram of the equipment.
Control system		1, sintering process curve setting: dynamic display setting curve, equipment sintering can prestore multiple process curves, each process curve can be set freely; 2, can be booked sintering, unattended sintering process curve sintering; 3, real-time display of sintering power and voltage information and record sintering data, and can be exported to achieve paperless record; 4, with remote control, real-time observation of equipment status; 5. Temperature correction: the difference between the main control temperature and the sample temperature, and the whole sintering process is nonlinear correction.
Temp Accuracy	+/- 1 ℃
Heating element		Adopt high purity silicon molybdenum rod with good corrosion resistance
Sealing system
	Vacuum degree: ≤10Pa (mechanical pump)
Pressure measurement and monitoring		The mechanical pressure gauge with damping oil is used to produce damping when the pressure fluctuates and reduce the pointer to swing back and forth.
Gas supply system
	The inlet and outlet flow rate is controlled by float flowmeter at the furnace and the furnace tail, which is integrated with the equipment to meet the requirements of regulating the pressure in the furnace, and the leakage test has been carried out before leaving the factory.
Net weight	300KG
Cautions	1. When the equipment is in use, the reading of the absolute pressure gauge should not be greater than 0.15MPa to prevent equipment damage caused by excessive pressure. 2. When used in vacuum, the operating temperature of the equipment shall not exceed 800℃. 3. Before using the equipment, please read carefully the precautions for the use of corundum products.
Service	1 year warranty with lifetime support (the warranty does not cover consumable parts, such as furnace tubes and sealing rings).
