Equipment introduction：

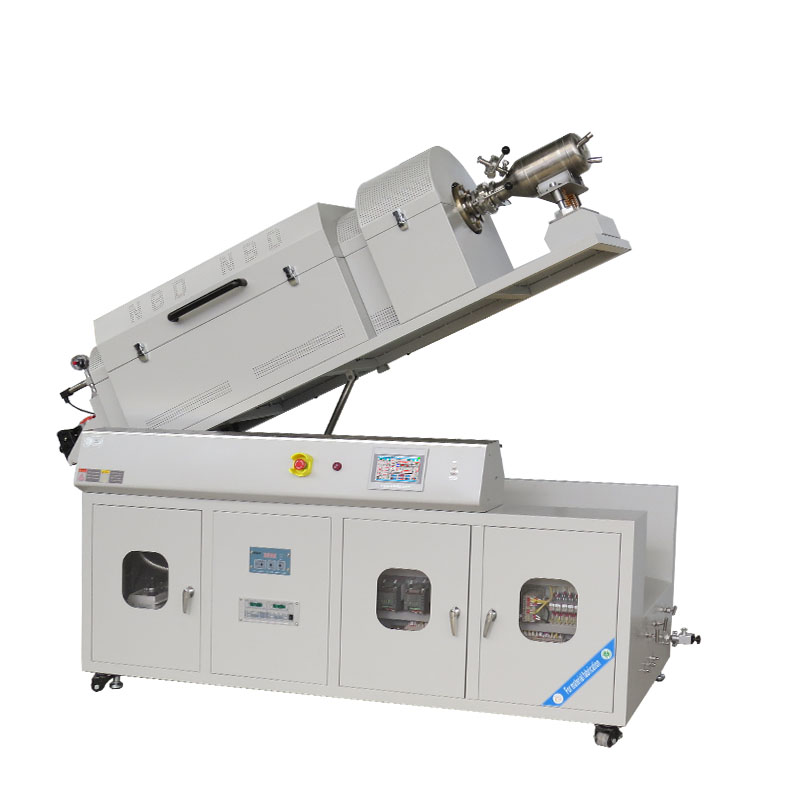

NBD-RT1200-200ⅡTZD rotary furnace with high temperature, high pressure and high vacuum automatic feeding and unloading adopts international advanced manufacturing technology as a whole, designed from the perspective of aesthetics and art according to the perspective of human safety. The furnace lining is made of high purity alumina light fiber material, and the control system is made of advanced PLC+ touch screen control system, which makes the operation more simple and convenient. The control mathematical model adopts advanced PID self-learning fuzzy control, which keeps the temperature control accuracy at ±1℃. This equipment is a high vacuum sintering furnace, the highest vacuum degree up to 8.0*10-2Pa, the highest sintering temperature 800℃, and has rotation, lifting and other functions.

1, the control system adopts advanced PLC+ touch screen control system, the operation is more simple and convenient. The control mathematical model adopts advanced PID self-learning fuzzy control, which keeps the temperature control accuracy at ±1℃.

2. The system is designed with multiple protection functions to ensure the safety of operators and equipment to the greatest extent. The system functions are highly integrated to reduce the labor intensity of operators to the greatest extent.

3. The high vacuum rotary tube furnace can rapidly rise and cool down, and can realize automatic feeding and unloading, which is convenient for customers to load, fire and observe the materials. The automatic rotation of the furnace tube can make the materials keep churning and stirring in the constant temperature zone, so that the materials are fired more evenly.

Electrical Spec

Three-phase 380V; 50HZ

Tmax

800℃

Rated power

Thermocouple type

Size of heating zone

φ250*870mm

Effective working area of furnace tube

φ187*600mm

Furnace tube volume

24L

angle of inclination

rotate speed of tube

Maximum working pressure of furnace tube at normal temperature

Maximum pressure resistance of transfer tank

8.0*10-2Pa

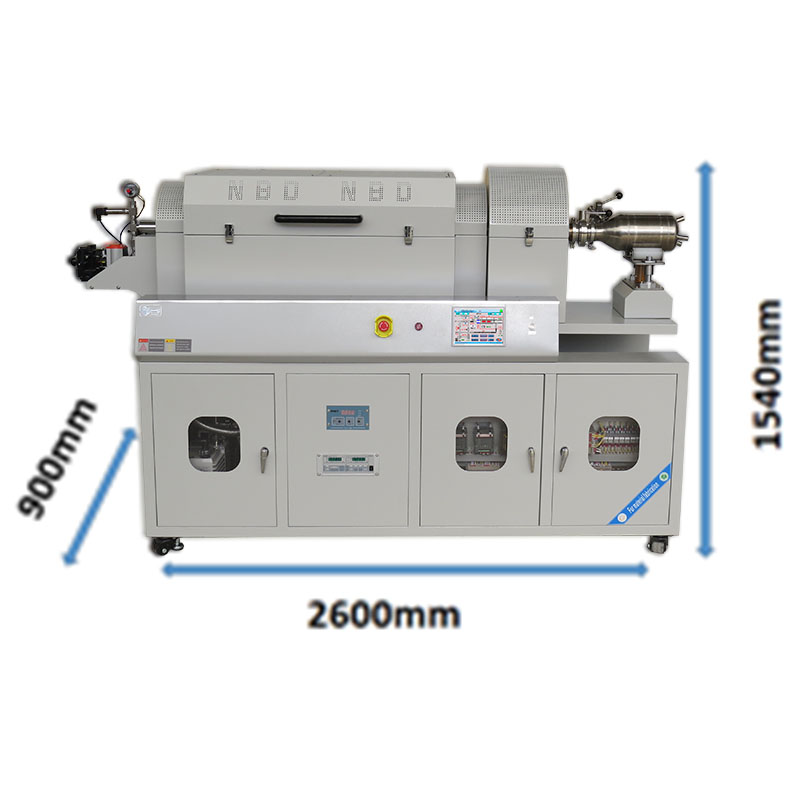

Furnace dimensions

 Recommended heating rate

 10℃/min

Temp Accuracy

+/- 1 °C

Equipment details

Net weight

Approx. 550KG

Cautions

1. Users are not allowed to modify the equipment without permission;

2. It is forbidden to place toxic and harmful chemical products and high-pollution articles into the furnace chamber;

3. When the temperature of the furnace surface is heated continuously, the local temperature may be over 70℃. Please do not touch the surface of the furnace directly with your body to avoid damage;

4. Please cut off the power supply when cleaning the furnace body and wipe it with a wet cloth.

5. Do not click on the display screen of the control unit/with sharp objects, so as to avoid screen damage and physical injury;

6, the system is equipped with exhaust fan, exhaust fan is used to control the system temperature, to ensure the safety of the system, do not block the top cover of the furnace body;

7, this product should avoid liquid and oil, can not be used in the liquid medium work, can only be used in the gas working medium. The gas must be clean and dry, free of particulates and moisture. Otherwise, it is necessary to install filters and dryers in the gas path to meet the requirements. Pay attention to keep the controller air path clean, once polluted, will seriously affect the accuracy of the product.

Service

One year limited warranty with lifetime support (warranty does not include consumable parts).
