Device Name

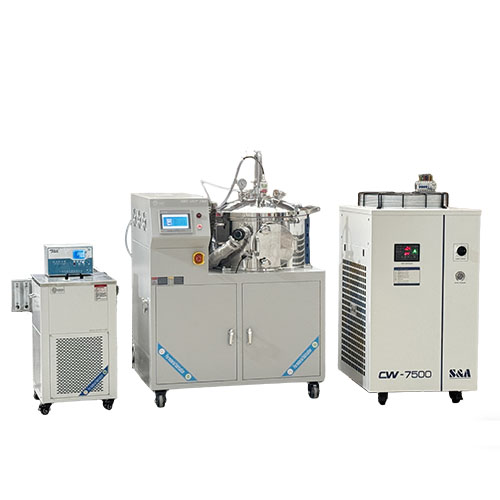

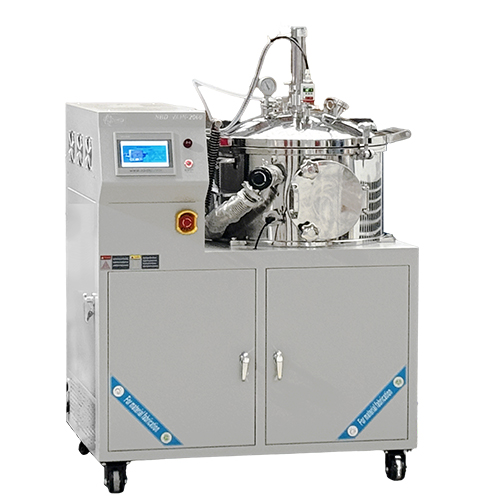

Comprehensive Calibration System for Complex Environment Sensors (Radiation Heat Flow Calibration System)

Specification Model

NBD-G2500-RLTID

power supply

AC380V 50HZ

rated power

52KW (heater power 38.4KW)

DC power supply specifications

24V 1600A

temperature control accuracy

The constant temperature fluctuation of graphite heating element shall not exceed 0.5%/min

heating element

Graphite heating element (size 200*30mm)

sensor type

Tmax

2500℃

Recommended heating rate

≤20℃/min

1. 0 to 1Mw/continuously adjustable;

2. Repeatability of heat flux density measurement: ± 0.5%;

3. Standard radiation heat flux meter, with a measurement accuracy of ± 2%;

4. The heat flux consistency at symmetrical positions on both sides of the center of the graphite heating element shall not exceed 0.5%.

Vacuum chamber size

Φ625*422mm

Observation window size

Φ40mm

Float flowmeter (heat flow meter water circuit)

two routes0.6-6L/min

System vacuum

degree of vacuum≤10P

排气口

Φ8mm宝塔接头

真空泵

DRV10 KF25接口

水冷机容量

70L

炉体尺寸

长1110*高1540*深950mm

重量

约320KG

控制系统

1、烧结工艺曲线设置：动态显示设置曲线，设备烧结可预存多条工艺曲线，每条工艺曲线可自由设置；

2、可预约烧结，实现无人值守烧结工艺曲线烧结；

3、实时显示烧结功率电压等信息并记录烧结数据，并可导出实现无纸记录；

4、具有实现远程操控，实时观测设备状态；

5、温度校正：主控温度和试样温度的差值，烧结全程进行非线性修正。

Appointment sintering

Optimize equipment utilization, ensure sintering process stability, save waiting time, and achieve efficient and orderly sample preparation.

Nonlinear temperature correction

By using algorithms to nonlinearly correct the temperature deviation between the control point and the sample due to their different positions in the temperature field, the consistency between the control temperature and the sample temperature is improved, the operation is simplified, and the accuracy of experimental data is enhanced

remote control

 You can log in to the control system anytime and anywhere through computers, mobile phones, and other terminals to view the operating status of the heating furnace (temperature, pressure, heating rate, etc.), and remotely adjust parameters and start/pause programs according to experimental needs. No need to travel back and forth to the laboratory at night or on holidays to meet the parameter tuning needs during the experimental process; Real time monitoring of key experimental processes can also be achieved during cross regional business trips, significantly reducing ineffective commuting time and allowing researchers to allocate work energy more efficiently.

data storage

Ensure data security, integrity, standardized management, and efficient retrieval

Multiple sets of exclusive process programs can be pre-set

Multiple types of experiment specific temperature programs can be preset to ensure experimental repeatability and ease of operation, support process optimization and data tracing, adapt to team collaboration and technical inheritance, greatly improving experimental efficiency and design flexibility.

可预设多类实验专属温度程序、保障实验重复性与操作便捷性，支持工艺优化与数据追溯，适配团队协作与技术传承，大幅提升实验效率与设计灵活性。

Multiple sets of exclusive process programs can be pre-set

Multiple types of experiment specific temperature programs can be preset to ensure experimental repeatability and ease of operation, support process optimization and data tracing, adapt to team collaboration and technical inheritance, greatly improving experimental efficiency and design flexibility.

可预设多类实验专属温度程序、保障实验重复性与操作便捷性，支持工艺优化与数据追溯，适配团队协作与技术传承，大幅提升实验效率与设计灵活性。

Multiple sets of exclusive process programs can be pre-set

Multiple types of experiment specific temperature programs can be preset to ensure experimental repeatability and ease of operation, support process optimization and data tracing, adapt to team collaboration and technical inheritance, greatly improving experimental efficiency and design flexibility.

Service Support

One year limited warranty with lifetime support (warranty does not include consumable parts)
