1. The double-layer air-cooled structure greatly reduces the surface temperature of the shell;

2. High purity heating element with excellent acid resistance and corrosion resistance;

3. The use of advanced refractory insulation materials, small heat loss, effectively reduce the use of equipment power;

4. Modular mechanism, durable and easy to maintain;

5. The top of the furnace is provided with an exhaust chimney to effectively eliminate the volatile matter produced in the sintering process;

6. Touch screen operation, intuitive display temperature curve.

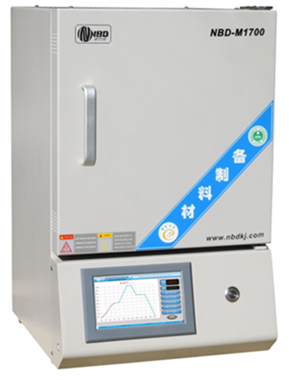

Model

NBD-M1700-12TI

Electrical Spec

AC220V  1.8KW

Tmax

1700℃（<1 hour）

Max working temps

1650℃

可Max heating rate

≤20℃/min

Chamber size

120*120*120mm

control system

1.NBD-101E embedded operating system English and Chinese interchange graphical interface, 7 inch real color touch screen input, intelligent man-machine dialogue mode, real-time heating power display, non-linear pattern temperature correction;

2. 15 curves can be pre-stored, and each curve can be set with 30 "time-temperature" nodes, eliminating the process of modifying curves repeatedly;

3. It has the functions of overtemperature alarm, broken couple prompt, leakage protection and so on.

Temp Accuracy

+/- 1℃

heating element

High purity silicon molybdenum rod with excellent acid and corrosion resistance

Net weight

80KG

Cautions

1. When the furnace temperature of the equipment is greater than or equal to 300℃, it is forbidden to open the furnace to avoid injury;

2. Slight cracks caused by continuous use of furnace are normal phenomena and do not affect the normal use of equipment.

Service

1 year warranty with lifetime support (The warranty does not include consumable parts, such as furnace tubes and sealing rings)
