Device Name

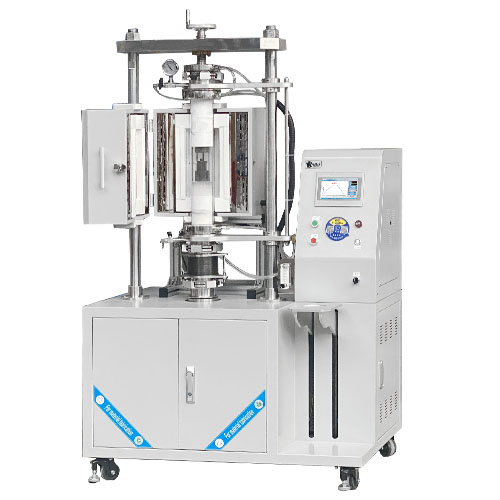

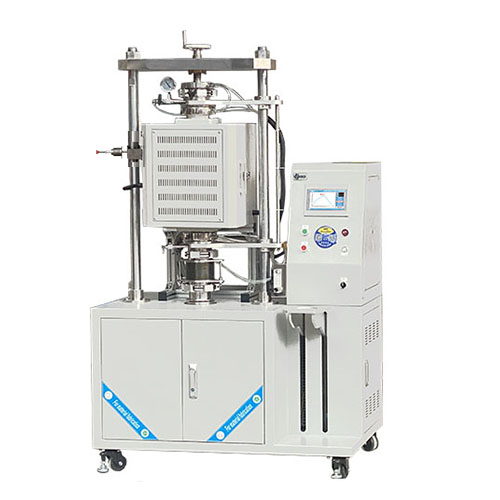

High temperature and high pressure electric pressure furnace

Specification Model

NBD-RYM15-50TIY20T-22

power supply

AC380V 50HZ

rated power

4KW

Number of temperature zones

single temperature single control

temperature control accuracy

±1℃

heating element

High density silicon carbide rod

sensor type

S-type thermocouple

Tamx

≤1300℃

rated temperature

≤1150℃

Recommended heating rate

≤10℃/min

Size of furnace temperature zone

Length 220 * Height 260 * Depth 220mm

Column head size

Φ70mm

Sample size

Ceramic parts 10 * 10 * 10mm (with a maximum length of approximately 30mm)

Hydraulic station cylinder diameter

Φ65mm

Maximum pressure of hydraulic station

6MPa

Furnace body size

Length 1190 * Height 1890 * Depth 750mm

Total weight of furnace body

About 500KG

control system

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;

2. Pre order sintering is available to achieve unmanned sintering process curve sintering;

3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;

4. Capable of remote control and real-time observation of equipment status;

5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

Appointment sintering

Optimize equipment utilization, ensure sintering process stability, save waiting time, and achieve efficient and orderly sample preparation

data storage

Ensure data security, integrity, standardized management, and efficient retrieval

Nonlinear temperature correction

By using algorithms to nonlinearly correct the temperature deviation between the control point and the sample due to their different positions in the temperature field, the consistency between the control temperature and the sample temperature is improved, the operation is simplified, and the accuracy of experimental data is enhanced.

Multiple sets of exclusive process programs can be pre-set

Multiple types of experiment specific temperature programs can be preset to ensure experimental repeatability and ease of operation, support process optimization and data tracing, adapt to team collaboration and technical inheritance, greatly improving experimental efficiency and design flexibility.

remote control

You can log in to the control system anytime and anywhere through computers, mobile phones, and other terminals to view the operating status of the heating furnace (temperature, pressure, heating rate, etc.), and remotely adjust parameters and start/pause programs according to experimental needs. No need to travel back and forth to the laboratory at night or on holidays to meet the parameter tuning needs during the experimental process; Real time monitoring of key experimental processes can also be achieved during cross regional business trips, significantly reducing ineffective commuting time and allowing researchers to allocate work energy more efficiently

Pressure measurement and monitoring

Mechanical pressure gauges are used, and the gauge housing is of an airtight structure, which can effectively protect the internal components from environmental influences and debris intrusion. At the same time, it has strong corrosion resistance and high temperature resistance.

float flow meter

Equipment usage precautions

When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure;

When used under vacuum, it is recommended that the equipment should not exceed a temperature of 800 ℃. If you have a higher temperature requirement, please contact us for consultation;

Before using this device, please carefully read the precautions for using corundum products;

Service Support

1-year warranty with lifetime support (warranty does not include consumable parts such as furnace tubes and seals).
