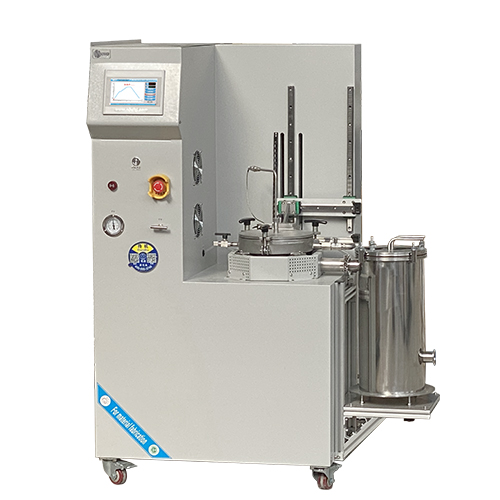

Equipment name

Experimental apparatus for reducing and extracting alloy preparation

power supply

Single phase 220V 50HZ

rated power

6KW (including 2KW molecular pump unit)

heating element

HRE alloy resistance wire

Furnace temperature control accuracy

±1℃

Temperature control sensor (furnace)

K-type thermocouple with a diameter of 2 * 420mm

Temperature control accuracy of reaction kettle

±5℃

Temperature sensor (reactor)

K-type right angle thermocouple with a diameter of 8mm * 100+450

Tmax

1200℃

rated temperature

1150℃

Recommended heating rate

≤20℃/min

Size of furnace temperature zone

φ240*220mm

Sintering crucible size

Outer diameter of 133mm, height of 180mm (at 1100 ℃)

Collect crucible dimensions

Outer diameter of 120, inner diameter of 34.5, height of 30 (at 200-300 ℃)

Molecular pump unit power supply

380V 50HZ

Vacuum pump model

DRV30 KF40 connector extraction speed of 8.3L/s

Molecular pump model

FF-160/620F LF interface with a pumping speed of 600L/s and a speed of 27000 r/min

Overall ultimate vacuum degree of the system

≤5.3×10^-4Pa

Furnace body size

Length 1150 * Height 1480 * Depth 700mm

Furnace weight

About 200KG

control system

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;
2. Pre order sintering is available to achieve unmanned sintering process curve sintering;
3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;
4. Capable of remote control and real-time observation of equipment status;
5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

heating element

HRE alloy resistance wire

condenser

The condenser collector is made of 304 stainless steel material and has a built-in water-cooled structure. It condenses the metal vapor brought out by the molecular pump or airflow, reduces the temperature of the reaction mixture, and prevents the generation of by-products. Avoid causing damage to the molecular pump unit.

Equipment usage precautions

1.When the furnace temperature of the equipment is ≥ 300 ℃, it is forbidden to open the furnace to avoid injury;

2.Minor cracks caused by continuous use of the furnace are a normal phenomenon and do not affect the normal use of the equipment;

Service Support

One year limited warranty with lifetime support (warranty does not include consumable parts)
