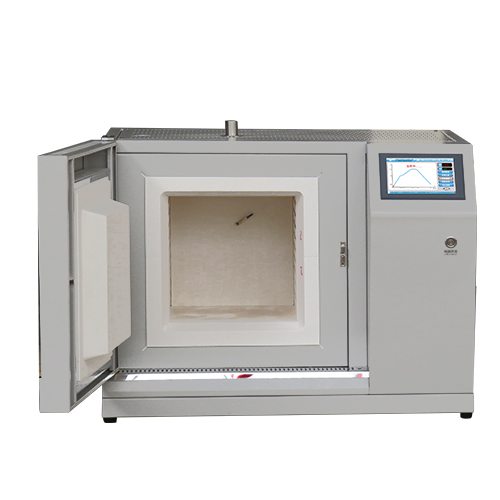

Equipment features: 1. The furnace volume is moderate, suitable for various material heat treatment processes; 2. Advanced technology refractory and insulating materials are used, with low heat loss, effectively reducing the power consumption of the equipment; 3. Modular structure, durable and easy to maintain; 4. An exhaust chimney is set on the top of the furnace, effectively removing volatiles produced during sintering; 5. Touch screen operation, intuitively displaying temperature curves.

Product Model

NBD-M1200-30TI(B型)

Tmax

rating

7KW

Sensor type

Type K thermocouple

Long-term operating temperature range

300~1150℃

temperature rise

1℃/H-20℃/Min

Furnace size

W300*H300*D300mm

L860*H650*W670mm

control system

1.NBD-101E embedded operating system in English and Chinese interchangeable graphical interface, 7 inches of true-colour touch screen input, intelligent man-machine dialogue mode, non-linear sample temperature correction;
2. 15 curves can be pre-stored, each curve can be set up 30 "time - temperature" node, eliminating the need to repeat the time to modify the curve;
3. With over-temperature alarm, broken even tips, leakage protection and other functions;

Temperature Accuracy

+/- 1℃

heating element

Mo-doped Fe-Cr-Al alloys

Atmosphere protection box
(Optional)

net weight

≈120KG

Precautions for the use of equipment

1. When the temperature of the furnace chamber of the equipment is ≥300℃, it is forbidden to open the furnace chamber to avoid being hurt;
2. The slight crack produced by the continuous use of the furnace chamber is a normal phenomenon, does not affect the normal use of equipment

Service Support

1 year warranty with lifetime support (consumable parts are not included in the warranty).
