1200°C Mixing Chamber/Tube Furnace
Release time: 2024-06-26 02:28:08 Number of views: 170

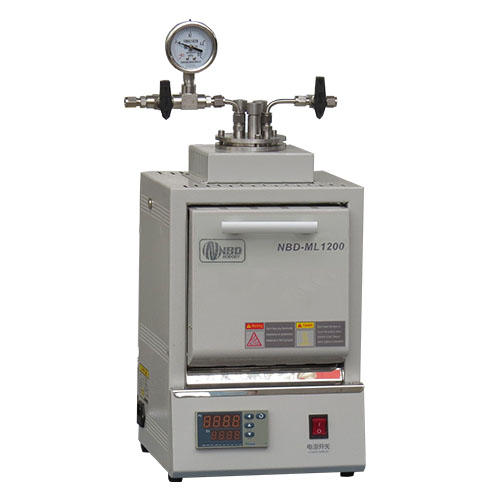

This equipment is a small vertical hybrid tube/chamber furnace, its chamber size is 100*100*130mm, as a simple chamber furnace can be heat-treated samples in the air environment. The equipment is equipped with a single-end sealed quartz tube and stainless steel sealing flange, the sample can be heat-treated in a vacuum or atmosphere protected environment. With a temperature limit of 1200°C and a maximum power of only 1000 W, the unit is small enough to be operated in a glove box.
Configuration Details Equipment features: Specification NBD-M1200-60CI heating rate rating 1.2KW Sensor type 1200℃ Tmax ≤20℃/MIN rated temperature 1150℃ Furnace effective space Sealed Quartz Tube Size L260×H600×D260mm control system 1.NBD-101E embedded operating system in English and Chinese interchangeable graphical interface, 7-inch color touch screen input, intelligent man-machine dialogue mode, non-linear style temperature correction; Temperature Accuracy +/- 1℃ heating element Mo-doped Fe-Cr-Al alloys net weight ≈23KG Precautions for the use of equipment 1. When the temperature of the furnace chamber of the equipment is ≥300℃, it is forbidden to open the furnace chamber to avoid being hurt; Service Support 1 year warranty with lifetime support (consumable parts are not included in the warranty). Disclaimer: The content of this site product introduction (including product images, product descriptions, technical parameters, etc.), is for reference only. May be due to the update is not timely, perhaps leading to the content of the said and the actual situation there are certain differences, please contact our customer service staff to confirm. The information provided on this site does not constitute any offer or commitment, Nobadi company from time to time to improve and modify any information on the site, without notice.
1, can be placed directly in the large excessive warehouse into the glove box, under the protective gas for heat treatment of samples, the
2, the use of advanced technology made of refractory insulation materials, heat loss is small, effectively reducing the power of the equipment;
3, can meet a variety of materials heat treatment sintering process;
4、Small volume, light weight, does not occupy the laboratory space.1℃/H-20℃/Min L100*H100*D100mm φ60*230mm Furnace net dimensions
2. 15 pre-stored curves, each curve can be set up 30 "time - temperature" node, eliminating the need to repeat the time to modify the curve;
3. With over-temperature alarm, broken even tips, leakage protection and other functions;

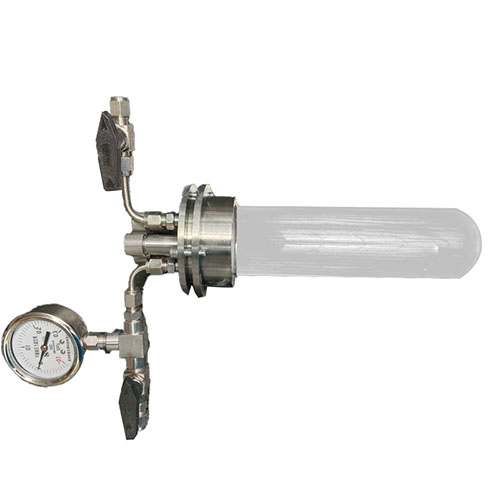

Sealing flange structure
Adopt corrosion-resistant and high-temperature-resistant flanges for sealing Electrode customisation (optional)
The number of electrodes and furnace tube material can be customised according to the requirements of material, design and manufacturing process. Inside the furnace chamber
Adopting high purity quartz as the furnace tube, it has good high temperature and corrosion resistance, and is suitable for heating samples in high vacuum or specific atmospheres to maintain the purity of the samples.
2. The slight crack produced by the continuous use of the furnace chamber is a normal phenomenon, does not affect the normal use of the equipment;
