Release time:2024-05-22 Number of views:51
|
Equipment Introduction:
|
||
|
|
Configuration details
|
Equipment features:
|
||||||||
Product model |
NBD-VA1200-20TI |
NBD-VA1500-22TI |
NBD-VA1700-22TI |
||||||
Electrical specifications |
AC220V 4KW |
AC380V 6KW |
AC380V 7KW |
||||||
Reachable temperature |
1150℃ |
1450℃ |
1650℃ |
||||||
Continuous temperature |
1100℃(连续) |
1400℃(连续) |
1600℃(连续) |
||||||
Heating rate |
≤20℃/MIN |
||||||||
System vacuum |
≤100 Pa | ||||||||
Furnace size |
200*200*300mm |
220*220*300mm |
220*220*300mm |
||||||

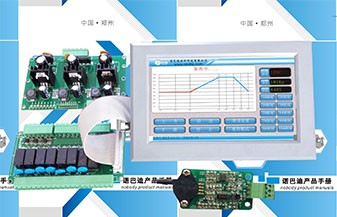

control system |
|
1. Sintering process curve setting: dynamically display the setting curve, the equipment sintering can pre store multiple process curves, and each process curve can be freely set;
|
|||||||
Temperature accuracy |
+/- 1℃ |
||||||||
Heating element |
|
||||||||
Alloy heating wire/high-purity silicon carbon rod/silicon molybdenum rod heating element with superior acid and corrosion resistance performance |
|||||||||
Equipment usage precautions |
1.When the furnace temperature of the equipment is ≥ 300 ℃, it is prohibited to open the furnace to avoid injury;
|
||||||||
Service support |
1-year warranty with lifetime support (excluding consumables such as sealing rings). |
Disclaimer: The product introduction content on this website (including product images, product descriptions, technical parameters, etc.) is for reference only. Due to untimely updates, there may be some discrepancies between the described content and the actual situation. Please contact our customer service personnel for confirmation. The information provided on this website does not constitute any offer or commitment, and Novartis may periodically improve and modify any information on the website without prior notice.
