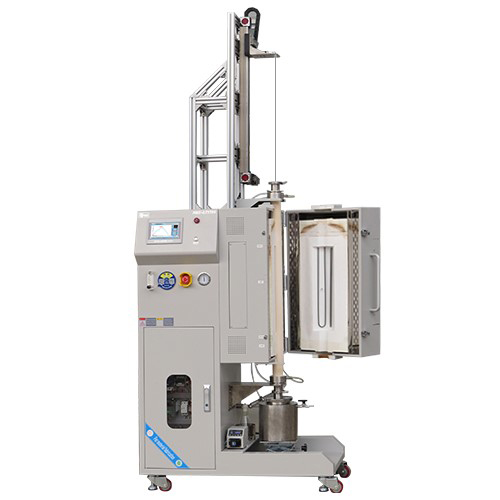

Saturated steam vertical oxidation quenching furnace

Release time：2024-05-14 Number of views：129

Equipment Introduction:

This device is a specialized device developed for higher education institutions, research institutes, and industrial and mining enterprises to conduct oxidation experiments on metal materials under a certain saturated water vapor pressure. It adopts PLC control and touch screen operation, and can start the preset experimental program with just a simple touch. It is especially suitable for repetitive experiments or standard operating procedures, greatly improving work efficiency.

	Equipment features: 1. Equipped with an electric lifting device with adjustable speed, it can achieve rapid temperature rise and fall, quenching of samples, and cold and hot fatigue experiments under atmosphere protection. 2. The use of platinum suspension wire for sample suspension can meet the suspension sintering of samples at 1500 ℃. 3. Equipped with an efficient steam generator, it is possible to conduct oxidation experiments on samples in a saturated steam environment. 4. Equipped with electric grippers, it is easy to achieve automatic release of samples, with a maximum clamping force of 40N. 5. Stable and reliable control, convenient operation. 6. Adopting advanced PID self-learning fuzzy control, the temperature control accuracy is high and maintained at ± 1 ℃. 7. The furnace lining is made of high-purity alumina lightweight fiber material, which has better insulation effect, energy conservation and consumption reduction. 8. The data storage function can store important sintering parameters for up to 30 days (8 hours per day). 9. Formula function, can pre store more than 100 formulas. 10. Multiple anti fooling functions make it safer for customers to use. 11. Networking function, using RJ45 interface and TCP/IP protocol, can connect the system to the upper computer (the upper computer needs to install corresponding software).
Device Name	High temperature oxidation vertical quenching furnace
Tmax	1650℃
Specification and model	NBD-LT1700-60TIFN
Power supply	Three phase 380V 50HZ
Long term use temperature range	300~1150℃
Rated power	12KW
Steam generator power	800W+150W tropical tracing zone
Temperature measuring element type	B-type thermocouple 150mm
Heating element	High purity silicon molybdenum rod
Heating temperature zone size	120120500mm
Furnace body size	Length 1005 * Height 2750 * Depth 650mm
Furnace tube size	corundumΦ60*1200mm
Lifting stroke	700mm
Lifting speed	0-140mm/s
Steam temperature control	360℃
Heating strip temperature control	150℃
Maximum evaporation capacity	10ml/min
Air intake interface	Φ6.35Double Ferrule Joint
Exhaust interface	Φ8mmPagoda joint
Air intake method	One way float flowmeter0.1-0.8L/min
Quenching jar dimensions	Φ129*220mm
heating rate	1℃/H-20℃/Min
control system			1. Sintering process curve setting: dynamically display the setting curve, the equipment sintering can pre store multiple process curves, and each process curve can be freely set; 2. Can schedule sintering and achieve unmanned sintering process curve sintering; 3. Real time display of sintering power and voltage information, recording sintering data, and export to achieve paperless recording; 4. Capable of remote control and real-time observation of equipment status; 5. Temperature correction: The difference between the main control temperature and the sample temperature is corrected nonlinearly throughout the sintering process.
Electric lifting device			The speed is adjustable, which can achieve rapid temperature rise and fall, quenching of samples, and cold and hot fatigue experiments under atmosphere protection.
Platinum suspension wire			Platinum suspension wire can be used for sample suspension and sintering at 1500 ℃.
Steam generator, quenching tank			1. Equipped with an efficient steam generator, it is possible to conduct oxidation experiments on samples in a saturated steam environment. 2. Quenching jar - quickly transfer to the quenching jar after heating to an appropriate temperature.
Heating element			Heating element
control accuracy	±1℃
Sealing system
	Vacuum degree: 10Pa (mechanical pump)
Pressure measurement and monitoring		Using a mechanical pressure gauge, the outer shell of the gauge is an airtight structure, which can effectively protect the internal components from environmental impact and debris intrusion, and has strong corrosion and high temperature resistance.
Gas supply system		The gas flow rate is controlled by a float flowmeter, which is integrated with the equipment and has undergone leak testing before leaving the factory.
Net weight	260kg
Equipment usage precautions	When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure; When used under vacuum, the operating temperature of the equipment shall not exceed 800 ℃.
Service support	Service support
