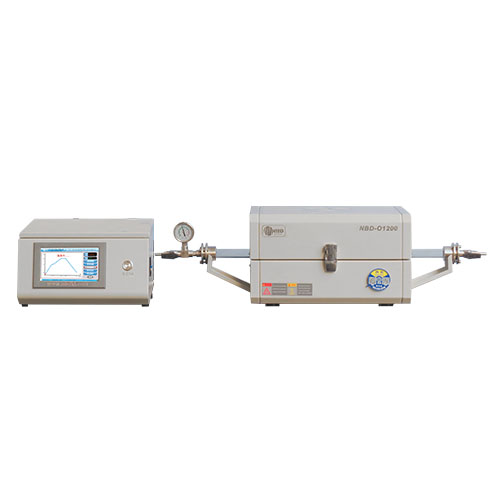

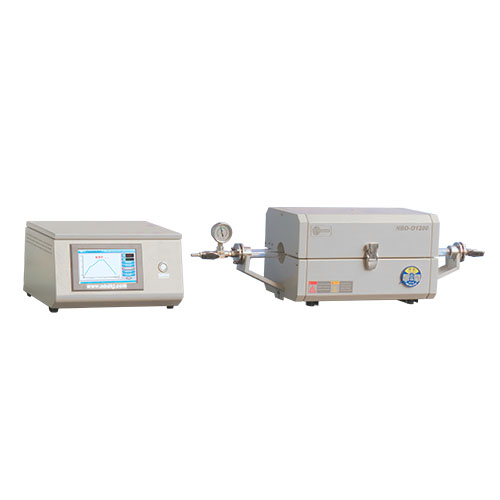

Split type mini tube furnace

Release time：2024-05-14 Number of views：131

Equipment Introduction:

Nobardi can open a split mini tube furnace, with a separate design for the heating chamber and control system. It is suitable for experiments where the reactants or products are toxic, harmful, flammable, or explosive, or have the above hazardous factors during the process.

The equipment is easy to operate, safe and reliable. It can also be developed as a specialized equipment for sintering, melting, and analyzing metal, non-metal, and other compound materials under vacuum or atmosphere conditions.

Configuration details

	Equipment features: 1. Double layer air-cooled structure; 2. High purity Al2O3 fiber refractory insulation material, energy-saving and consumption reducing; 3. The high-purity aluminum oxide coating on the heating element can extend its service life; 4. The NBD-101 intelligent control system allows you to operate worry free and get started in 3 minutes.
Product model	NBD-O1200-25TIY
Touch screen size	7"
Rated power	1.2KW
Sensor type	K-type thermocouple
Tmax	1200℃
Heating temperature zone	300mm
Rated temperature	1150℃
Long term usage temperature	300~1150℃
pipe diameter	Φ25mm
Furnace body size	Length, height, and depth of 430260280mm
heating rate	1℃/H-20℃/Min
weight	≈30KG
System protection	Over temperature alarm, overcurrent protection, and disconnection prompt
Sealing system
control system		1. 15 temperature curves can be pre stored to avoid the trouble caused by repeated settings of different experimental processes; 2. The experimental process is more intuitive and the operation is more convenient; 3. NBD-101E embedded operating system with Chinese and English interchangeable graphical interface, 7-inch true color touch screen input, intelligent human-machine dialogue mode, non-linear style temperature correction;
Pressure measurement and monitoring		Using a mechanical pressure gauge, the outer shell of the gauge is an airtight structure, which can effectively protect the internal components from environmental impact and debris intrusion, and has strong corrosion and high temperature resistance.
Temperature accuracy	+/- 1 ℃
Heating element		Mo doped Fe Cr Al alloy
Service items	Transportation and insurance fees, packaging fees, installation and technical service fees; 12 month warranty provided, touch system 24 Six months, lifetime warranty.

Disclaimer: The product introduction content on this website (including product images, product descriptions, technical parameters, etc.) is for reference only. Due to untimely updates, there may be some discrepancies between the described content and the actual situation. Please contact our customer service personnel for confirmation. The information provided on this website does not constitute any offer or commitment, and Novartis may periodically improve and modify any information on the website without prior notice.
