Having eight parallel heating tube shaped cavity channels, heating experiments can be conducted independently or simultaneously to improve experimental efficiency and throughput, while also allowing for comparative experiments to improve data reliability and repeatability.

Equipment characteristics
1. High temperature sintering.
2. Stable and reliable control, convenient operation, and complete safety protection measures.
3. Adopting advanced PID self-learning fuzzy control, the temperature control accuracy is high and maintained at ± 1 ℃.
4. The furnace lining is made of high-purity alumina lightweight fiber material, which has better insulation effect, energy conservation and consumption reduction.
5. Equipped with Internet of Things (WIFI) function, it can remotely monitor and operate devices through mobile phones and computers.
6. The data storage function can store important sintering parameters for up to 30 days (8 hours per day).
7. Formula function, can pre store more than 20 formulas.
8. Networking function, using RJ45 interface and TCP/IP protocol, can connect the system to the upper computer (the upper computer needs to install corresponding software).

Device Name

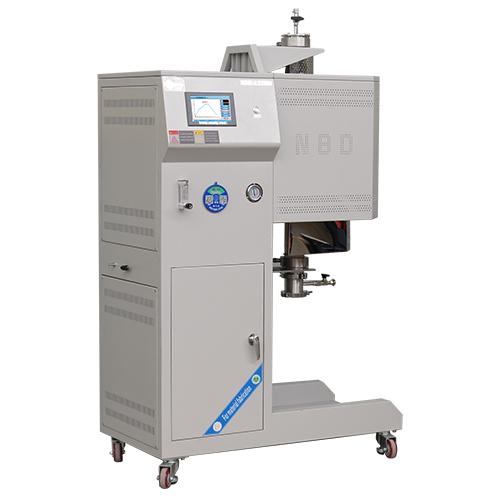

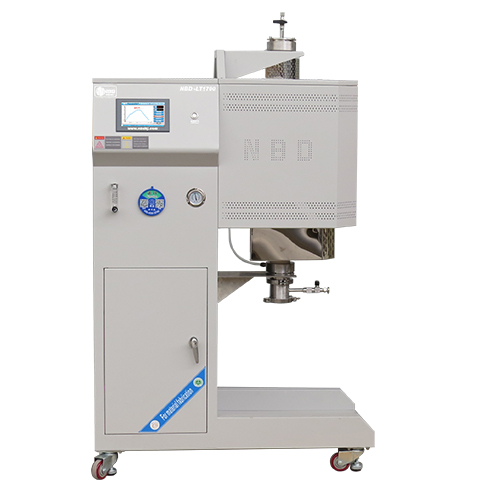

Vertical eight channel tube furnace

Specification and model

NBD-T1200-LTS-MC8

Tmax

heating rate

Power supply

Three phase 380V 50HZ

Rated power

Number of temperature zones

control accuracy

±1℃

K-type thermocouple

Inner diameter * height Φ 80 * 200mm

1690 * 1400 * 700 (length * height * depth mm)

control system

1. Sintering process curve setting: dynamically display the setting curve, the equipment sintering can pre store multiple process curves, and each process curve can be freely set;
2. Can schedule sintering and achieve unmanned sintering process curve sintering;
3. Real time display of sintering power and voltage information, recording sintering data, and export to achieve paperless recording;
4. Capable of remote control and real-time observation of equipment status;
5. Temperature correction: The difference between the main control temperature and the sample temperature is corrected nonlinearly throughout the sintering process.

Temperature accuracy

±1℃

Heating element

Mo doped Fe Cr Al alloy

Sealing system

Vacuum degree: 10Pa (mechanical pump)

Pressure measurement and monitoring

Gas supply system

Net weight

约260KG

Equipment usage precautions

When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure;
When used under vacuum, the operating temperature of the equipment shall not exceed 800 ℃.

Service support

One year limited warranty with lifetime support (warranty does not include consumable parts such as handling pipes and O-rings. Please order replacement parts at the relevant product section below.)
