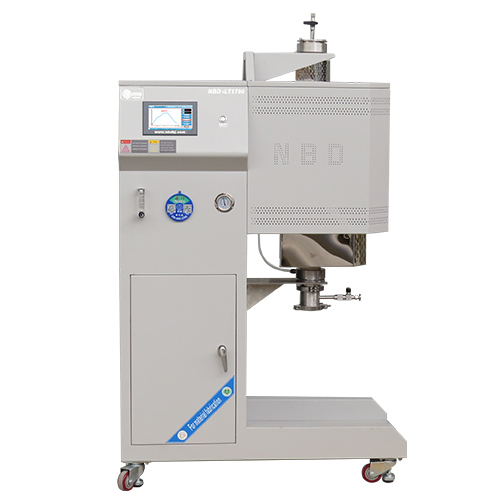

Vertical high-temperature tube furnace (Type 1)
Release time: 2024-5-10 10:25:06 Number of views: 183
|
|
Equipment Introduction
The NBD-LT series high-temperature furnace adopts international advanced manufacturing technology as a whole, and is designed from an aesthetic and artistic perspective based on human safety. The furnace liner is made of high-purity aluminum oxide lightweight fiber material, and the control interface is equipped with an intelligent touch screen for foolproof operation. The control mathematical model adopts advanced PID self-learning fuzzy control to maintain temperature control accuracy at ± 1℃. After long-term and multiple sample verifications, it can be applied to the calcination of almost all types of materials. Due to the batch standardization of its production process, the consistency of sample quality can be ensured.
|
||
|
|
|
|
|
配置详情
|
|
Equipment features: |
|||||||||||||
|
Product specifications |
NBD-LT1500-60TI-200 |
NBD-LT1700-60TI-200 |
NBD-LT1500-80TI-200 |
NBD-LT1700-80TI-200 |
||||||||||
|
Tmax |
1500℃ |
1700℃ |
1500℃ |
1700℃ |
||||||||||
|
Long term usage temperature |
300~1450℃ |
300~1650℃ |
300~1450℃ |
300~1650℃ |
||||||||||
|
Heating element |
High purity silicon carbon rod | High purity silicon molybdenum rod |
High purity silicon carbon rod |
High purity silicon molybdenum rod |
||||||||||
|
Power specifications |
AC220V/4.5KW |
|||||||||||||
|
control accuracy |
±1℃ |
|||||||||||||
|
Temperature measuring element type |
S-type thermocouple |
B-type thermocouple |
S-type thermocouple |
B-type thermocouple |
||||||||||
|
Furnace tube diameter |
60mm |
60mm |
80mm |
80mm |
||||||||||
|
Size of constant temperature zone |
80mm |
|||||||||||||
|
Effective space of furnace |
Φ200*200mm |
|||||||||||||
|
heating rate |
1℃/H-20℃/Min |
|||||||||||||
|
Furnace body size |
Length 1100 * Height 1780 * Depth 600mm
|
|||||||||||||
|
weight(KG) |
150 |
175 |
155 |
185 |
||||||||||
|
Temperature accuracy |
±1℃ | |||||||||||||
|
Pressure measurement and monitoring |
 |
Using a mechanical pressure gauge, the outer shell of the gauge is an airtight structure, which can effectively protect the internal components from environmental impact and debris intrusion, and has strong corrosion and high temperature resistance. |
||||||||||||
|
Sealing system |
|
|
|
|||||||||||
|
Vacuum degree: 10Pa (mechanical pump) |
||||||||||||||
|
Gas supply system |
|
The gas flow rate is controlled by a float flowmeter, which is integrated with the equipment and has undergone leak testing before leaving the factory.
|
||||||||||||
|
control system |
|
1. Sintering process curve setting: dynamically display the setting curve, the equipment sintering can pre store multiple process curves, and each process curve can be freely set; 2. Can schedule sintering and achieve unmanned sintering process curve sintering; 3. Real time display of sintering power and voltage information, recording sintering data, and export to achieve paperless recording; 4. Capable of remote control and real-time observation of equipment status; 5. Temperature correction: The difference between the main control temperature and the sample temperature is corrected nonlinearly throughout the sintering process. |
||||||||||||
|
Equipment usage precautions |
When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure;
|
|||||||||||||
|
Service support |
One year limited warranty with lifetime support (warranty does not include consumable parts such as handling pipes and O-rings. Please order replacement parts at the relevant product section below.) |
|||||||||||||
Disclaimer: The product introduction content on this website (including product images, product descriptions, technical parameters, etc.) is for reference only. Due to untimely updates, there may be some discrepancies between the described content and the actual situation. Please contact our customer service personnel for confirmation. The information provided on this website does not constitute any offer or commitment, and Novartis may periodically improve and modify any information on the website without prior notice.
|
|
Equipment Introduction
The NBD-LT series high-temperature furnace adopts international advanced manufacturing technology as a whole, and is designed from an aesthetic and artistic perspective based on human safety. The furnace liner is made of high-purity aluminum oxide lightweight fiber material, and the control interface is equipped with an intelligent touch screen for foolproof operation. The control mathematical model adopts advanced PID self-learning fuzzy control to maintain temperature control accuracy at ± 1℃. After long-term and multiple sample verifications, it can be applied to the calcination of almost all types of materials. Due to the batch standardization of its production process, the consistency of sample quality can be ensured.
|
||
|
|
|
|
|
配置详情
|
|
Equipment features: |
|||||||||||||
|
Product specifications |
NBD-LT1500-60TI-200 |
NBD-LT1700-60TI-200 |
NBD-LT1500-80TI-200 |
NBD-LT1700-80TI-200 |
||||||||||
|
Tmax |
1500℃ |
1700℃ |
1500℃ |
1700℃ |
||||||||||
|
Long term usage temperature |
300~1450℃ |
300~1650℃ |
300~1450℃ |
300~1650℃ |
||||||||||
|
Heating element |
High purity silicon carbon rod | High purity silicon molybdenum rod |
High purity silicon carbon rod |
High purity silicon molybdenum rod |
||||||||||
|
Power specifications |
AC220V/4.5KW |
|||||||||||||
|
control accuracy |
±1℃ |
|||||||||||||
|
Temperature measuring element type |
S-type thermocouple |
B-type thermocouple |
S-type thermocouple |
B-type thermocouple |
||||||||||
|
Furnace tube diameter |
60mm |
60mm |
80mm |
80mm |
||||||||||
|
Size of constant temperature zone |
80mm |
|||||||||||||
|
Effective space of furnace |
Φ200*200mm |
|||||||||||||
|
heating rate |
1℃/H-20℃/Min |
|||||||||||||
|
Furnace body size |
Length 1100 * Height 1780 * Depth 600mm
|
|||||||||||||
|
weight(KG) |
150 |
175 |
155 |
185 |
||||||||||
|
Temperature accuracy |
±1℃ | |||||||||||||
|
Pressure measurement and monitoring |
|
Using a mechanical pressure gauge, the outer shell of the gauge is an airtight structure, which can effectively protect the internal components from environmental impact and debris intrusion, and has strong corrosion and high temperature resistance. |
||||||||||||
|
Sealing system |
|
|
|
|||||||||||
|
Vacuum degree: 10Pa (mechanical pump) |
||||||||||||||
|
Gas supply system |
|
The gas flow rate is controlled by a float flowmeter, which is integrated with the equipment and has undergone leak testing before leaving the factory.
|
||||||||||||
|
control system |
|
1. Sintering process curve setting: dynamically display the setting curve, the equipment sintering can pre store multiple process curves, and each process curve can be freely set; 2. Can schedule sintering and achieve unmanned sintering process curve sintering; 3. Real time display of sintering power and voltage information, recording sintering data, and export to achieve paperless recording; 4. Capable of remote control and real-time observation of equipment status; 5. Temperature correction: The difference between the main control temperature and the sample temperature is corrected nonlinearly throughout the sintering process. |
||||||||||||
|
Equipment usage precautions |
When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure;
|
|||||||||||||
|
Service support |
One year limited warranty with lifetime support (warranty does not include consumable parts such as handling pipes and O-rings. Please order replacement parts at the relevant product section below.) |
|||||||||||||
Disclaimer: The product introduction content on this website (including product images, product descriptions, technical parameters, etc.) is for reference only. Due to untimely updates, there may be some discrepancies between the described content and the actual situation. Please contact our customer service personnel for confirmation. The information provided on this website does not constitute any offer or commitment, and Novartis may periodically improve and modify any information on the website without prior notice.
