Liquid vapor phase generator, type Ι

Release time: 2022-7-14 14:37:35 Number of views: 953

Equipment introduction:

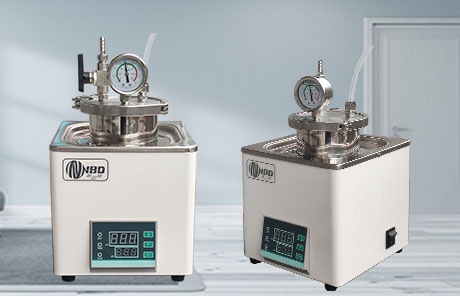

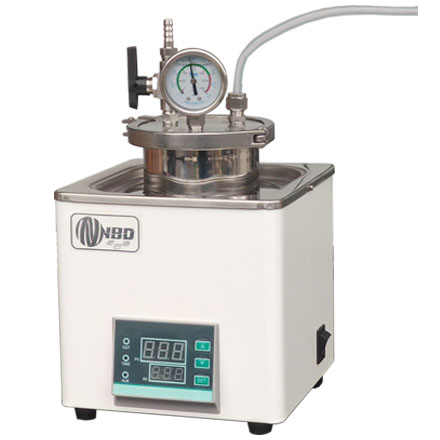

NOBODY liquid vapor generator heating tank and liquid injection chamber are using one-time molding technology, no interface and no weld, the bottom surface is arc shape, no dead Angle is easy to clean, extending the service life of the equipment, heating tank and liquid injection chamber are imported 304 stainless steel material, the surface is reprocessed, with corrosion resistance, difficult to rust characteristics, the control system is protected by concave and convex surface frame. Prevent the boiling liquid from overflowing during the heating process of the instrument and damage the temperature control meter. The control panel has a tilt Angle to increase the operator's comfort. The double row blue LED display makes the digital display clearer and softer.

Configuration

	Safety guide 1. Please do not open the product without permission. Do not replace the power cable without permission. 2. Without the express permission of the Company, any alteration or modification of the product may cause inconvenience and injury to the user. 3. If there is any abnormal situation in the work of the thermostat, please shut down and cut off the power immediately. If maintenance is needed, it must be carried out by professionals. 4. Turn off the power and unplug the water bath before cleaning or moving it. 5. In order to make the product work normally and prevent unnecessary accidents, please pay attention to the environment; Avoid tilting, keep steady and avoid direct sunlight; And try to avoid use in cold environments.
Model	NBD-GTS0.5L(low temperature)
boundary dimension	200L400H200D
Temp Accuracy	±0.5℃
Temperature control range	RT~100℃
Rated power	AC220V/300W
Function	Timing, heat up
Injection cavity	304 stainless steel quick flange, effective volume 500mL
Vacuum degree of injection chamber	＜3pa
Heating medium volume	1700mL
protection	Protection against dry burning
Suitable evaporative material	Suitable for all kinds of liquids evaporated under atmospheric pressure and vacuum;
air inlet	Φ8.3 Pagoda mouth
air outlet	Φ8mm polytetrafluoroethylene (can be directly connected to the temperature hole to enter)
Pressure display	CSilicone rubber inlet pipe 1.5m, PTFE outlet pipe 0.5m, 1 power cord

Related products

Disclaimer:

The product introduction content of this site (including product pictures, product descriptions, technical parameters, etc.) is for reference only. There may be some difference between the stated content and the actual situation due to the delay in updating. Please contact our customer service staff for confirmation. The information provided by this Site does not constitute any offer or acceptance. NOBODY will improve and modify any information on this site from time to time without prior notice.
