Liquid Vapor Phase Generator (Type II)

Release time: 2022-4-21 15:55:06 Number of views: 1134

Equipment introduction:

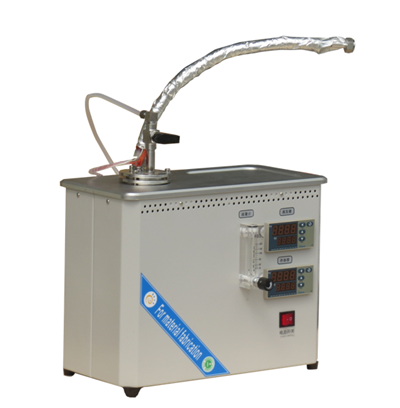

NOBODY uniform temperature susaturated gas generator is mainly used for the evaporation of liquid reactants, can load gas to drive the evaporated reaction gas into the reaction chamber, can also achieve the reaction gas under vacuum conditions, easy to operate, and the reaction tube is very easy to clean, the pipe containing the solution is made of high-purity quartz tube, resistant to high temperature and acid and alkali corrosion, sealed with 304 stainless steel flange seal. The inlet pipe is directly inserted into the solution to ensure the complete evaporation of the reaction solution to the maximum extent. The outside of the outlet pipe is wrapped with silica gel accompanied by tropical heat preservation to prevent the evaporating gas from condensing after cold.

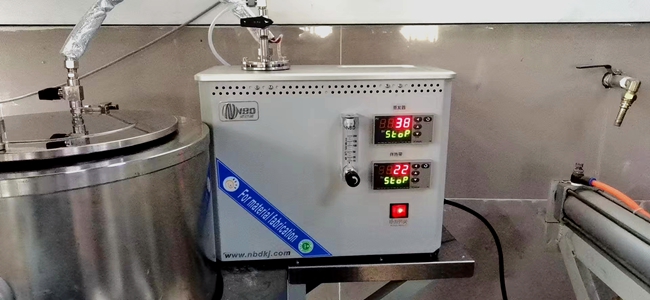

(Laboratory shooting)

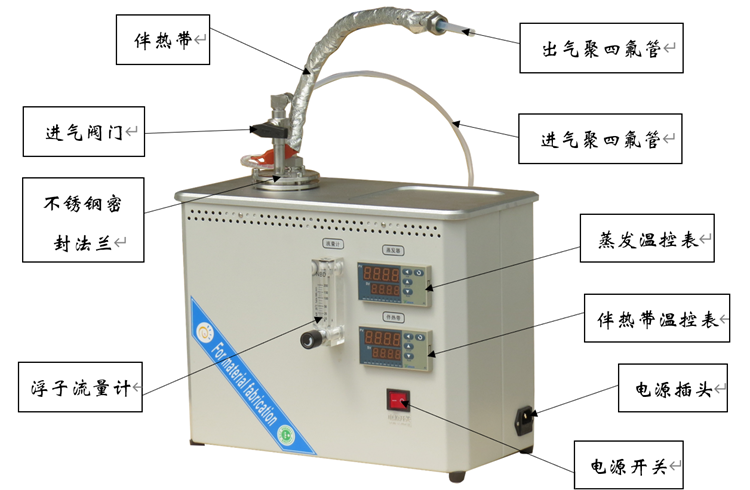

Configuration

Model：NBD-GTS0.1LZ（medium temperature）

	1. Special gasification structure, high gasification temperature; 2. Adjustable gasification temperature; 3. Liquid flow controllable; 4. Gas transmission preheating system to prevent gas condensation reflux; 5. Automatic liquid feeding, stepless speed regulation; 6. High sealing design, can gasify toxic and harmful liquids; 7. Easy to install, can be used with a variety of manufacturers pipe furnace.
boundary dimension	L410×H350×D210mm
Temp Accuracy	±1℃
Rated power	1300W（aerification）+75W（tracing heat）
Thermocouple type	K Type
rated temperature	400℃（aerification）+150℃（tracing heat）
Recommended heating rate	≤10/min
Air inlet connection	Φ6.35 PTFE pipe
Air outlet connection	Φ8 PTFE pipe
Effective volume of gasification source	50ml/100ml optional
Atmospheric condition	Mixture, vacuum, etc
weight	Approx.10KG
Service	Note: At 1 atmosphere, water expands by about 1244.44 times after vaporization at 100 degrees. The water expanded by about 2,249.33 times after 180 degrees of vaporization 1 year warranty with lifetime support (warranty does not include consumable parts)

Related products

Disclaimer:

The product introduction content of this site (including product pictures, product descriptions, technical parameters, etc.) is for reference only. There may be some difference between the stated content and the actual situation due to the delay in updating. Please contact our customer service staff for confirmation. The information provided by this Site does not constitute any offer or acceptance. NOBODY will improve and modify any information on this site from time to time without prior notice.
