Graphite heater furnace

Release time: 2022-2-19 15:34:11  Number of views: 985




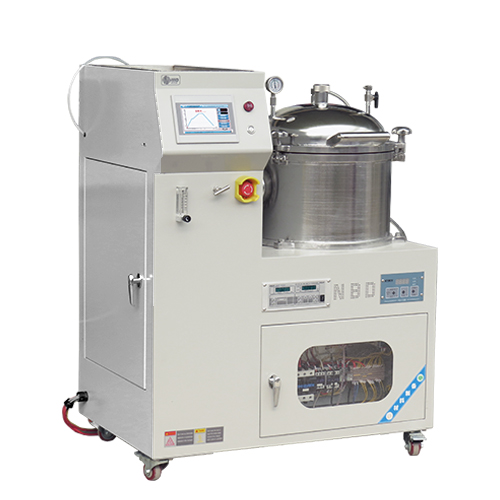

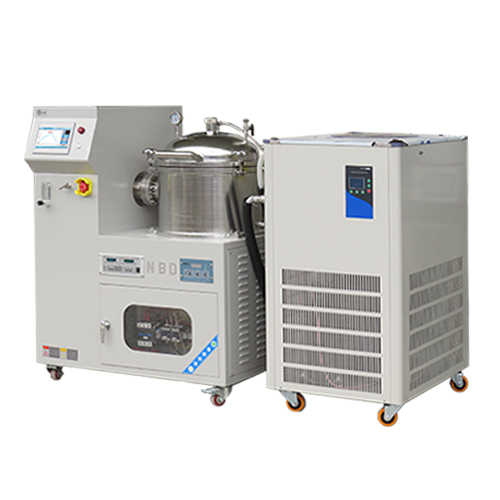

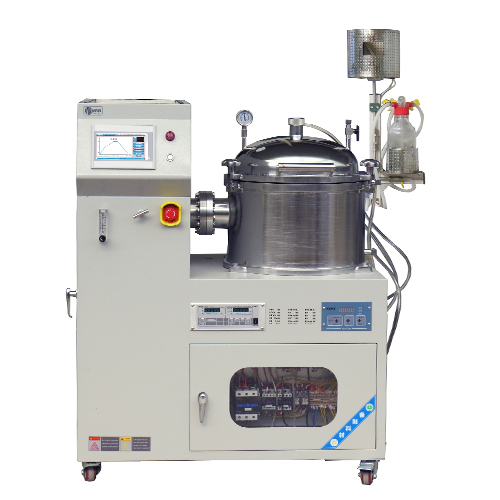

Equipment introduction:

NOBODY graphite heating furnace has compact structure and scientific design. The heating elements and insulation materials are made of high purity graphite materials with different densities, and the built-in infrared thermometer is used as the temperature measurement and control device. The equipment can reach 3000℃ in the protective gas environment. Preset 6 water-cooled circulation channels, which can effectively ensure the long-term stable operation of the equipment. It is widely used in graphitization, pyrolysis, silicification, tempering, brazing, degassing, carbonization, rapid prototyping, sintering, degreasing, synthesis and other experiments at ultra-high temperature.







      click here for more info.

    Configuration






Equipment features:

1, high purity process space;

2, equipped with closed sample loading fixture, which can realize the stable control of high vacuum state during powder material sintering;

3, open sample loading platform design, matching a variety of forms of sample sintering experiment;

4, scientific and reasonable design, can easily achieve high vacuum, ultra-high temperature and low radiation of external heat.

Model

Three-phase 380V/50HZ

heating system
Tmax
2750℃

Rated power

20KW

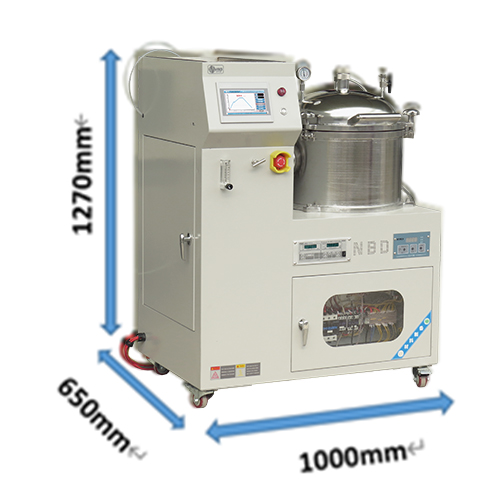

Boundary dimension
L1000*H1270*W650mm
Master heating rate
≤5℃/min
Heating chamber size
120*60*60mm
Effective volume
6ml
Heating and loading area

temperature measurer

Two-color infrared thermometer resolution 0.1℃ repeatability ±2℃ protection class IP65
Temp Accuracy
±1℃
Master insulation material
Pressed high purity graphite hard felt
Structure operation mode
Upper open heating integral sealing, furnace body and top cover double water cooling
control system
Control mode


1, sintering process curve setting: dynamic display setting curve, equipment sintering can prestore multiple process curves, each process curve can be set freely;
2, can be reserved sintering, to achieve unattended sintering process curve sintering;
3, real-time display of sintering power and voltage information and record sintering data, and can be exported to achieve paperless recording;
4, with remote control, real-time observation of equipment status;
5, temperature correction: the difference between the main control temperature and the sample temperature, the whole sintering process for nonlinear correction.
Temperature curve setting
The main heating can pre-store 15 temperature curves, each curve can be set 20 "time-temperature curve", real-time monitoring, dynamic real display of "time-temperature curve"
temperature correction
Master the difference between the temperature control temperature and the sample temperature, the system is nonlinear correction throughout the whole process (ask the customer common temperature points, do special effect)
data logging
Real-time monitoring, dynamic real display of "time-temperature curve"
system protection
Overtemperature alarm, overcurrent protection, thermocouple break warning
Gas supply system
Flowmeter type
1 float flowmeter (mass flow controller can be selected according to experimental needs)
Gas pipe core
Special stainless steel gas piping (1/4")
Regulating valve type
manual control valve
Pipeline normality
normal close
Temp Accuracy
±1.0%F.S
degree of linearity
±0.5%F.S
repeated accuracy
±0.2%F.S
pressure range
-0.1-0.15 MPa
response time
2S
Accuracy guaranteed temperature
(15~35℃)
vacuum system
High vacuum system

mechanical vacuum pump
10C direct rotary vane vacuum pump (Double stage rotary vane)
pumping rate
(10(L/s)
Inlet and exhaust connection port
KF16/25(mm)
oil capacity
0.6~1L
motor speed
1440(rpm)
operating ambient temp.
5~40℃

Noise (dB)

≤56
molecular pump
FJ-110molecular pump
pumping rate
100(L/s)
rated speed
4300R/min
type of cooling
Air/water cooled
Else
Vacuum gauge type Analog vacuum gauge
Total system limit vacuum 4.3×10-3Pa

Service

One year limited warranty with lifetime support (warranty does not include consumable parts)
