medium frequency induction melting furnace
Release time: 2022-01-03 11:37:11 Number of views: 1233

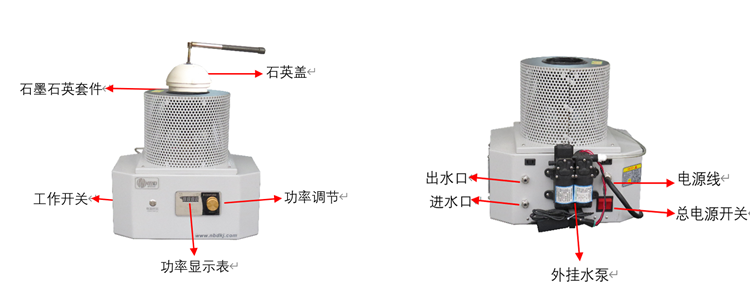

Equipment introduction:
The equipment adopts medium frequency induction heating and DSP digital control circuit technology, patent magnetic thermal technology drive technology, simple operation, fast melting speed, low energy consumption, small machine size, low external heat storage.
It can be widely used in materials research laboratories, precious metal jewelry processing, mineral extraction, metal recovery, dental hospitals and other fields.
Configuration
| 1. Use IGPT intelligent module to drive overheat, overcurrent, water shortage protection, fast reaction speed, good stability, low failure rate; | ||
Model | NBD-P1600-0.35LCIA/LCIB | ||
Electrical Spec | AC220V 6KW/AC380V8KW | ||
Tmax | 1600℃ | ||
Heating rate | ≤100℃/min | ||
Effective furnace volume | 0.35L | ||
Graphite crucible |
| The use of high purity graphite crucible, graphite crucible is mainly used for copper, aluminum, alloy and other non-ferrous metals melting. | |
Temp Accuracy | +/- 1℃ | ||
Heating element |
| IGPT electromagnetic induction coil | |
Net weight | 12KG(without water cooling circulator) | ||
| Water cooling circulator parameters: | |||
| Electrical Spec | 220V/200V | ||
| water volume | 5.5L | ||
| water cycle | 1.2L/min | ||
| water inlet temp. | ≤ 80℃ | ||
| water outlet temp. | 35-45℃ | ||
| working power supply | Power supply from melting furnace | ||
| Boundary dimension | 345*290*720mm | ||
| Gross Weight | 28KG | ||

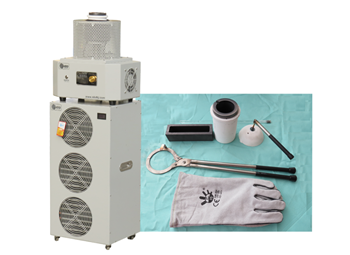

| Packing list | One melting furnace, one water cooling circulating machine, one graphite crucible, one quartz jacket, one special crucible pliers, one graphite oil tank, one pair of protective gloves, and two quartz rods. | ||
Cautions | When the furnace temperature of the equipment is more than 300 ° C, it is forbidden to open the upper cover of the furnace to avoid injury; | ||
Service | 1 year warranty with lifetime support (warranty does not include consumable parts). | ||
Disclaimer:
The product introduction content of this site (including product pictures, product descriptions, technical parameters, etc.) is for reference only. There may be some difference between the stated content and the actual situation due to the delay in updating. Please contact our customer service staff for confirmation. The information provided by this Site does not constitute any offer or acceptance. NOBODY will improve and modify any information on this site from time to time without prior notice.
