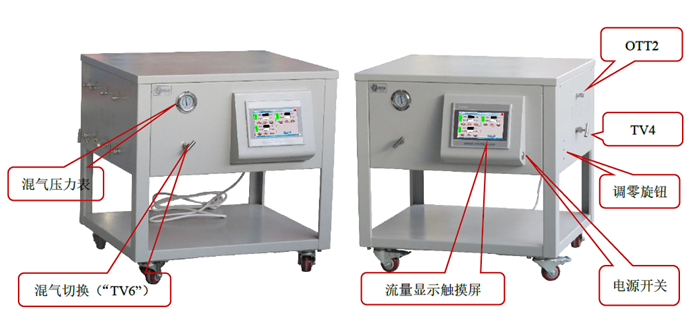

Touch screen mass flow control distribution cabinet

Release time: 2021-12-29 16:15:19  Number of views: 1267

Product features:

1. The proportioner is suitable for low pressure and small flow, a variety of gas single/mixed continuous gas supply system. It is especially convenient to switch the use of a variety of gases without causing the atmosphere to enter the heating tube;
2. Large size gas pressure and flow data can be read intuitively in the same plane, beautiful appearance, practical, easy to operate;
3. Display accurate flow rate, can effectively control gas consumption.
4. All instruments and valves are connected with loose joints for easy maintenance and disassembly.






ProductDetails
ProductVideo
MessageInquiry

Configuration

Use of touch screen:


The NBD touch screen is the integrated control terminal of the mass flow controller. It provides functions such as power supply, operation control, flow setting and flow display. Flow display instrument can be used directly with our S49 series mass flow controller (MFC) or S49 series mass flowmeter (MFM). It can also be used with other types of mass flow controllers.
The touch screen includes the following functions:
① Provide working power for mass flow controller or flow meter;
② Manual operation control, flow setting;
③ Display of gas flow;
④ Can be used with other types of mass flow controllers.

PRODUCT MODEL

NBD-2Z

NBD-3Z

NBD-4Z

Flow meter type

Mass Flow Controller

Pipeline schematic diagram

Clean and polished corrosion resistant stainless steel pipe or corrosion resistant and anti-aging polytetrafluoroethylene gas pipe (optional)

Number of intake ports (customizable for multiple channels)

2

3

4

interface size

1/4”Double card sleeve connector

measurement accuracy

±1.0%F.S

Measurement range of flowmeter

50、100200、500Sccmoptional

Pressure difference range

0.05-0.4MPa

net weight

35KG

Equipment usage precautions

1. Ensure that the pressure inside the pipeline is less than 0.15MPa;
2. After connecting the gas cylinder to the gas holder, a leak test should be conducted using soapy water;

Service Support

1-year warranty, providing lifetime support (excluding consumable parts within the warranty scope).
