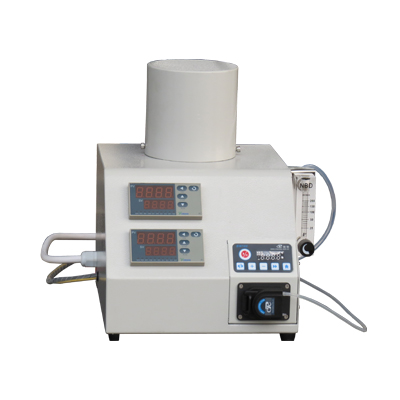

NOBODY steam generator for the majority of laboratories to provide precise quantitative supply of water vapor experimental conditions, steam flow, temperature can be accurately controlled, steam generation stable and continuous, simple and safe equipment operation.
1. Special vaporizing structure is adopted to ensure the stable generation of water vapor;

2. Adjustable gasification temperature;

3. Liquid flow is controllable;

4. Release condensation system to prevent vapor condensation reflux;

5. Automatic liquid feeding, easy installation, can be used with a variety of manufacturers tubular furnace. The steam generator produced by our company adopts a new special vaporization structure, overcoming the traditional steam generator flow instability, temperature and amount of difficult to control, incomplete vaporization, fluctuating headlamp shortcomings, for steel corrosion, fuel cell testing, catalytic hydrothermal aging, fixed-bed fluidized bed reaction, biological decomposition and synthesis and other application environment to provide precise continuous stable water vapor. This product is composed of laboratory high precision peristaltic pump, steam generator and condensation release system.

Model

NBD-WTS101

Electrical Spec

AC220V    400W

Tmax

200℃~400℃

High precision peristaltic pump

1. Speed range: 0.1·100rpm reversible reversible;

2. Speed resolution: 0.1rpm;

3. Speed regulation mode: film key;

4. Display mode: 4-bit LED displays current speed or current flow rate;

5. Strengthen PP material, corrosion resistance;

6. Flow rate: 0.04-36ml/min;

7. Equipped with full speed key to realize fast emptying and adding;

8. With power failure memory function, save running parameters in time.

Control system

1. Fuzzy PID temperature control, highlighting digital tube display;

2. Programmable multi-stage "time-temperature" curve setting;

3. It has the functions of overtemperature alarm, broken couple prompt, leakage protection and so on.

Temp Accuracy

+/- 1℃

Net weight

15KG

Service

1 year warranty with lifetime support (consumable parts not included).
