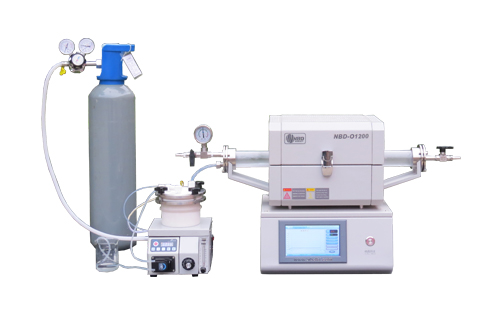

Equipment introduction： This device is an aerosol assisted vapor deposition device-AACVD (using liquid/gas aerosol precursors to grow on the substrate) for fuel cells and ZnO transparent conductive films. This instrument consists of three main modules: micro-flow liquid high-precision transmission system, ultrasonic atomization system, 1200℃ tubular furnace. This technology is suitable for the use of non-volatile precursors, and can be widely used in the preparation of nanomaterials, electrode material coating composite and so on.

Configuration

Features of equipment	1. Liquid flow control system: intermediate high precision transmission, small flow liquid high precision transmission, flow range: 0.04 ~ 36ml/min; 2. Atomizing device: Equipped with a 1.7MHz ultrasonic atomizer, which can atomize liquid into liquid particles and import them into tubular furnace; 3. Heating system (tubular furnace can be customized) : the highest temperature can reach 1200℃.
Electrical Spec	AC220V    1.2KW
Tmax	1200 °C
Max working temps.	1100℃
Heating rate	≤  20 ℃/min
Heating length	200mm
High precision peristaltic pump			1. Speed range: 0.1·100rpm reversible reversible; 2. Speed resolution: 0.1rpm; 3. Speed regulation mode: film key; 4. Display mode: 4-bit LED displays current speed or current flow rate; 5. Strengthen PP material, corrosion resistance; 6. Flow rate: 0.04-36ml/min; 7. Equipped with full speed key to realize fast emptying and adding; 8. With power failure memory function, save running parameters in time.
atomizer			1.AC220V, 1.7MHz ultrasonic atomizer; 2. The liquid tank is standard PTFE material, corrosion resistant, and sealed with silicone sealing ring; 3. Atomizing flow rate can be realized by controlling gas flowmeter; 4. Continuous operation of atomization can be realized.
Control system			1. 15 temperature curves can be pre-stored to avoid the trouble caused by repeated setting of different experimental processes; 2. The experiment process is more intuitive and the operation is more convenient; 3. Optional wireless control module to realize remote control; 4. With overtemperature alarm, broken couple prompt, leakage protection, etc.
Temp Accuracy	+/- 1 °C
加热元件			Mo掺杂的Fe-Cr-Al合金
Heating element		The standard configuration has a float flowmeter with a range of 60-600ml/min (other ranges can be customized with sales contact)
Net weight	30KG
Cautions	1. When the furnace temperature of the equipment is greater than or equal to 300℃, it is forbidden to open the furnace to avoid injury; 2. When the equipment is in use, the pressure inside the furnace shall not exceed 0.125MPa (absolute pressure) to prevent the pressure from bursting the sealing flange; 3. When used in high vacuum (10-3Pa), the operating temperature of the equipment shall not exceed 800℃.
Service	1 year limited warranty with lifetime support (warranty excludes consumable parts such as handling tubes and O-rings).
