1. Ring heater, self-cleaning cavity, avoid pre-burning trouble;

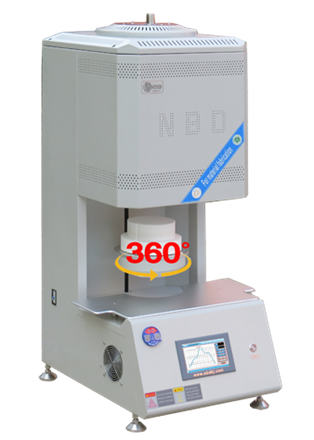

2. Electric lifting platform, material 360 degrees self-rotating design, simple and fast loading, uniform temperature field;

3. Single furnace can burn about 40~60 pieces, up to 4 layers. The material rotates while sintering;
4. Modular structure, durable and easy to maintain;
5. The top of the furnace is equipped with a blowdown hole, dry pre-burning volatiles are swept away;
6. One key operation is simple and convenient, pre-stored 15 working curves, whatever you want;
7. Real-time sintering temperature and power monitoring, safety and power saving.

Model

NBD-BCR1700-14TI

Electrical Spec

AC220V   4.5KW

Max working temps.

1650℃

Rotation speed

0.33R/min

Heating rate

≤20℃/min

Chamber size

Φ140*200mm

Control system

1. Can prestore 15 denture sintering curves of various manufacturers, call at will. Each curve can be set 30 sections of "temperature-time" axis, to avoid the trouble caused by the repeated setting of different experimental processes;

2. It has the functions of overtemperature alarm, broken couple prompt, leakage protection and so on.

Temp Accuracy

+/- 1℃

Heating element

Molybdenum disilicate special heating element

Net weight

155KG

Cautions

If you want to sinter zirconium discs soaked with dye, be sure to dry them completely before placing them in the equipment for sintering to extend the service life of the equipment.

Service

1 year warranty with lifetime support (The warranty does not include consumable parts, such as furnace tubes and sealing rings).
