Equipment features

1. Use contactless thyristor module to improve the stability of system control;
2. The chimeric gold heating wire in the furnace is distributed in a ring to ensure the temperature uniformity in the furnace;
3. The use of vacuum forming process made of refractory insulation materials, small heat loss, effectively reduce the use of equipment power;
4. Multiple electrode connectors, easy to switch;
5. The reactor is made of austenitic chromium-nickel stainless steel 310S with creep strength, which has good oxidation resistance and corrosion resistance;
6. Adopt water-cooled sealing structure; Effectively reduce the flange temperature to protect the sealing ring and ensure the sealing of the equipment during the sintering process.

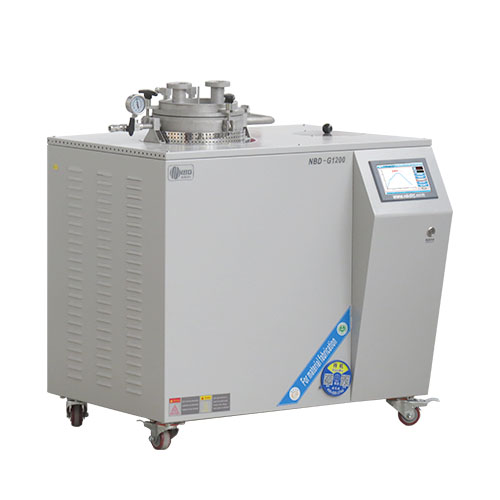

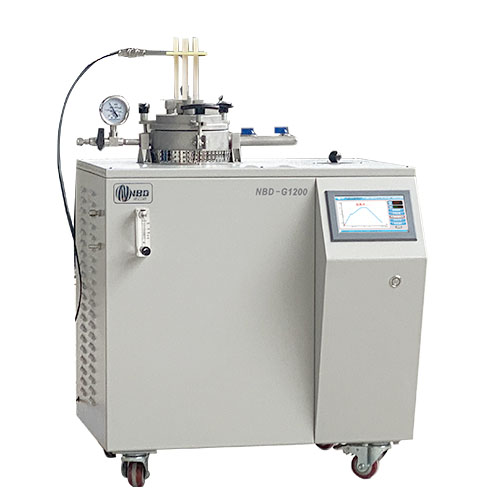

Model

NBD-G1200-10TIFR-150

Electrical Spec

AC220V    2KW

Tmax

1100℃

Heating rate

≤20℃/min

Chamber size

Φ100*200mm

control system

1. NBD-101E embedded operating system has a graphical interface for exchanging Chinese and English, a 7-inch true color touch screen input, an intelligent human-machine dialogue mode, and non-linear temperature correction;
2. 15 temperature curves can be pre stored to avoid the trouble caused by repeated settings of different experimental processes;
3. It has functions such as high temperature alarm, disconnection prompt, and leakage protection.

Temperature Accuracy

+/- 1℃

heating element

Mo doped Fe Cr Al alloy

net weight

80KG

Equipment usage precautions

Minor cracks caused by continuous use of the furnace are a normal phenomenon and do not affect the normal use of the equipment;

Service Support

1-year warranty with lifetime support (warranty does not include consumable parts such as furnace tubes and seals).
