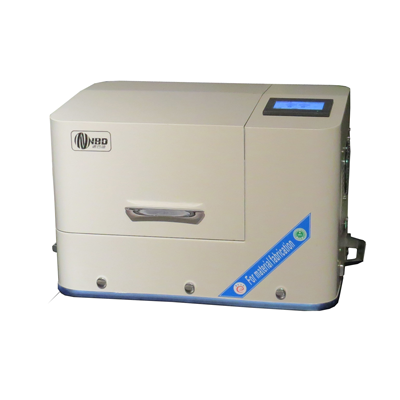

Vertical silent mixing ball mill

Release time: 2020-04-12 10:33:21  Number of views: 1937

QMJL series planetary grinding mixer is a necessary device for mixing, fine grinding, sample preparation, new product development and small batch production of high-tech materials. The equipment is small in size, full in function, high in efficiency and low in noise. It is the ideal equipment for scientific research units, colleges and universities and enterprise laboratories to obtain research samples (four samples can be obtained at the same time in each experiment).

ProductBrief
ProductDetails
ProductVideo
MessageInquiry


 Equipment introduction:

QMJL series planetary grinding mixer is a necessary device for mixing, fine grinding, sample preparation, new product development and small batch production of high-tech materials. The equipment is small in size, full in function, high in efficiency and low in noise. It is the ideal equipment for scientific research units, colleges and universities and enterprise laboratories to obtain research samples (four samples can be obtained at the same time in each experiment).



  Ø User-friendly design, simple and comfortable operation;

Ø Safety protection, the whole preparation worry-free;

Ø hydraulic push rod, easy and free;

Ø Discharge particle size, up to 0.1um;









  Main feature

Ø 3D arc design, noble and elegant;

Ø only with silent gear, the noise is reduced by 10~28 dB, and the transmission speed is stable;

Ø All adopt clean and polished stainless steel pipes, or corrosion resistance is reliable;



Configuration

Model

NBD-QMJL-104

NBD-QMJL-504

Can match ball mill tank specifications

100ml*4

500ml*4

Feed size

≤ 3mm

discharging granularity

Dry grinding: 1~2mm material →85~5um; Wet grinding: 1~2mm material →5~0.1um

rotate speed

100-650 R/min

Timing range(h)

0-72h

Electrical Spec

AC 220V   550W

AC 220V   750W

Service

1 year warranty with lifetime support (warranty does not include consumable parts)


Disclaimer:

 The product introduction content of this site (including product pictures, product descriptions, technical parameters, etc.) is for reference only. There may be some difference between the stated content and the actual situation due to the delay in updating. Please contact our customer service staff for confirmation. The information provided by this Site does not constitute any offer or acceptance. NOBODY will improve and modify any information on this site from time to time without prior notice.
