1. Use contactless thyristor module to improve the stability of system control;
2. The chimeric gold heating wire in the furnace is distributed in a ring to ensure the temperature uniformity in the furnace;
3. The use of vacuum forming process made of refractory insulation materials, small heat loss, effectively reduce the use of equipment power;
4. Modular mechanism, durable and easy to maintain;
5. Touch screen operation, intuitive display of temperature curve.

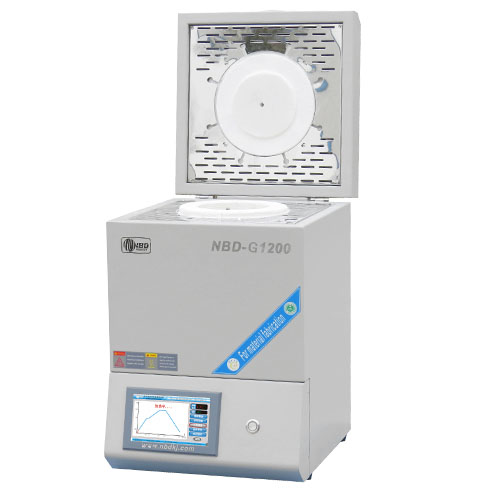

Model

NBD-G1200-15TI

NBD-G1200-24TI

Electrical Spec

AC220V 2.5KW

AC220V 4KW

Tmax

1100℃

Heating rate

≤20℃/min

Chamber size

Φ150*200mm

Φ240*240mm

Control system

1.NBD-101E embedded operating system English and Chinese interchangeable graphical interface, 7 inch true color touch screen input, intelligent man-machine dialogue mode, non-linear style temperature correction;
2. 15 temperature curves can be pre-stored to avoid the trouble caused by repeated Settings of different experimental processes;
3. With high temperature alarm, broken couple warning, leakage protection and other functions.

Temp Accuracy

+/- 1℃

Heating element

Mo-doped Fe-Cr-Al alloy

Net weight

40KG

Cautions

1. When the furnace temperature of the equipment is ≥300℃, do not open the furnace to avoid damage;
2. Slight cracks caused by continuous use of the furnace are normal and do not affect the normal use of the equipment;

Service

1 year warranty with lifetime support (warranty does not include consumable parts).
