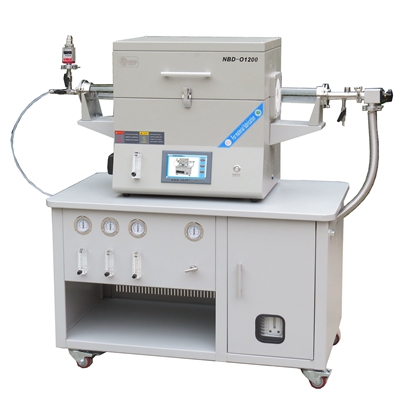

System O1200-XT22D2F
Release time: 2018-11-27 08:39:13 Number of views: 3258
Equipment Introduction: Chemical Vapor Deposition (CVD) refers to the method of synthesizing coatings or nanomaterials by the reaction of chemical gases or vapors on the substrate surface. It is a widely used technology in the semiconductor industry for depositing thin film materials, including a wide range of insulating materials, as well as most metal materials and metal alloy materials. For this purpose, we have developed a complete set of CVD coating systems suitable for material laboratories of universities, research institutes, environmental science, and other fields.
| Equipment Introduction: Chemical Vapor Deposition (CVD) refers to the method of synthesizing coatings or nanomaterials by the reaction of chemical gases or vapors on the substrate surface. It is a widely used technology in the semiconductor industry for depositing thin film materials, including a wide range of insulating materials, as well as most metal materials and metal alloy materials. For this purpose, we have developed a complete set of CVD coating systems suitable for material laboratories of universities, research institutes, environmental science, and other fields.
| ||
|
|
| |
|
| ||
配置详情
| NBD-101E embedded operating system with bilingual graphical interface, 7-inch true color touch screen input, intelligent human-computer dialogue mode, non-linear temperature correction. | ||||||||
Product Model | NBD-O1200-XT22Furnace tube diameters of 50, 60, 80, and 100 mm are available. | ||||||||
Working temperature | ≤1150℃ | ||||||||
Heating zone size | 200mm+200mm(Dual temperature dual control) | ||||||||
Heating rate | ≤20℃/min | ||||||||
Electrical specifications | AC 220V 4KW | ||||||||
Gas system (optional) | Types of flow meters | Float flow meter | Mass flow meter | ||||||
Piping diagram |
|
| |||||||
Number of intake ports | 2、3、4(Multiple options available) | ||||||||
Traffic volume range | 20-250/20-800ml/min(Multiple ranges available) | 50/100/200sccm(Multiple ranges available) | |||||||
Working pressure difference range | 0-0.15MPa | ||||||||
Low vacuum system (optional) | Vacuum pump model | NBD-1.5C | NBD-3C | NBD-4C | |||||
Pumping speed | 1L/s | 3L/s | 4L/s | ||||||
Inlet and outlet port dimensions | Φ8mmTower Fitting | Φ8mmTower connector | KF16/25 | ||||||
Ultimate Pressure | 1000Pa | 100Pa | 10Pa | ||||||
Working temperature | 5-40℃ | ||||||||
Electrical specifications | AC220V | ||||||||
High vacuum system (optional) | Vacuum pump model | NBD-103(A) | NBD-103(B) | NBD-103(C) | |||||
Pumping speed | 110L/s | 600L/s | 700L/s | ||||||
Vacuum gauge | Composite vacuum gauge | ||||||||
Extreme pressure | 10^-3Pa | 10^-4Pa | 10^-5Pa | ||||||
Working temperature | 5-40℃ | ||||||||
Electrical specifications | AC 220V | AC 220V | AC 380V | ||||||
* Supports custom orders, more models available, welcome to call for inquiries.400-000-3746 | |||||||||
Disclaimer: The product introductions on this site (including product images, descriptions, and technical parameters) are for reference only. There may be discrepancies between the stated content and the actual situation due to untimely updates, so please contact our customer service personnel for confirmation. The information provided on this site does not constitute any offer or commitment. Nobady Company reserves the right to improve and modify any information on the website from time to time without prior notice.
