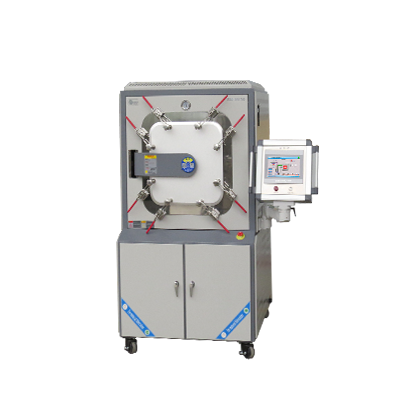

Large high temperature vacuum atmosphere muffle furnace
Release time: 2017-11-16 06:33:43 Number of views: 5994
Equipment introduction:
The vacuum atmosphere box furnace is sealed with metal shell, and the inner furnace is designed with interlayer water cooling structure. The cold vacuum degree of the equipment can reach 50Pa or less. This equipment is widely used in tungsten carbide, ceramics, powder metallurgy and other materials in the rough vacuum state, reducing atmosphere, protective atmosphere heat treatment. In addition, the touch screen control system independently developed by our company can improve work efficiency. The furnace can be customized according to the actual needs of users.
| Equipment introduction:
| ||
|
|
| |
|
|
| |
Configuration
| 1, the use of double-layer water cooling structure, greatly reduce the surface temperature of the shell; | ||||||||
Model | NBD-VA1200-20TI | NBD-VA1500-30TI | NBD-VA1700-30TI | ||||||
Electrical Spec | AC220V 4KW | AC380V 6KW | AC380V 12KW | ||||||
Max working temps. | 1100℃ | 1400℃ | 1600℃ | ||||||
Chamber size | 200*200*300mm | 300*300*400mm | 300*300*400mm | ||||||
System vacuum | ≤100 Pa | ||||||||
Heating rate | ≤20℃/min | ||||||||
Control system | 1, sintering process curve setting: dynamic display setting curve, equipment sintering can prestore multiple process curves, each process curve can be set freely; 2, can be reserved sintering, to achieve unattended sintering process curve sintering; 3, real-time display of sintering power and voltage information and record sintering data, and can be exported to achieve paperless recording; 4, with remote control, real-time observation of equipment status; 5, temperature correction: the difference between the main control temperature and the sample temperature, the whole sintering process for nonlinear correction. |
| |||||||
Temp Accuracy | +/- 1℃ | ||||||||
Heating element |
|
|
| ||||||
Excellent acid and corrosion resistance of alloy heating wire/high purity silicon carbon rod/silicon molybdenum rod heating element | |||||||||
Cautions | 1. When the furnace temperature of the equipment is ≥300℃, do not open the furnace to avoid damage; | ||||||||
Service | 1 year warranty with lifetime support (warranty does not cover consumable parts, such as seals, etc.). | ||||||||
Disclaimer:
The product introduction content of this site (including product pictures, product descriptions, technical parameters, etc.) is for reference only. There may be some difference between the stated content and the actual situation due to the delay in updating. Please contact our customer service staff for confirmation. The information provided by this Site does not constitute any offer or acceptance. NOBODY will improve and modify any information on this site from time to time without prior notice.
