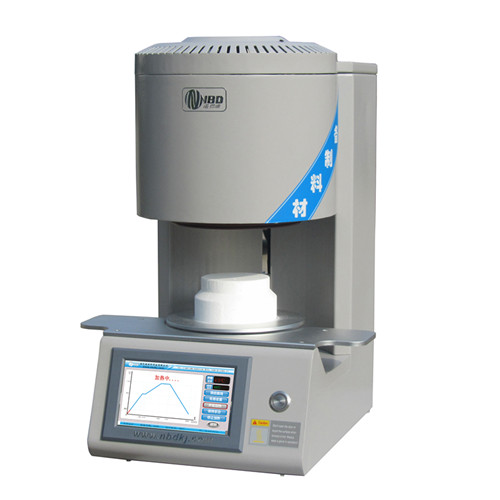

1. Silent lifting platform design, ensure the stability of lifting, avoid material tilt, easy and fast loading;

2. Perfect automatic control ensures the stability of system control and operation;

3. Touch screen operation, intuitive display of temperature curve, make the operation more simple;

Model

NBD-B1200-10TI

NBD-B1500-12TI

NBD-B1700-12TI

Electrical Spec

AC220V   1.4KW

AC220V   1.5KW

AC220V 1.8KW

Tmax

1150℃

1450℃

1650℃

Heating rate

≤20℃/min

Chamber size

Φ90*70mm

Φ100*120mm

Φ100*120mm

Control system

1.NBD-101E embedded operating system Chinese and English interchangeable graphical interface, 7 inch true color touch screen input, intelligent man-machine dialogue mode, real-time heating power display, non-linear pattern temperature correction;

2. 15 temperature curves can be pre-stored, and 30 sections of "temperature-time" axis can be set for each curve, avoiding the trouble caused by repeated setting of different experimental processes;

3. It has the functions of over-temperature alarm, broken couple warning, leakage protection and so on.

Temp Accuracy

+/- 1℃

Heating element

Molybdenum-doped Fe-cr-Al alloy heating wire

High purity silicon carbon rod

High purity silicon molybdenum rod

Net weight

30KG

55KG

75KG

Cautions

1. When sintering the sample, the stove must be placed on the tray;

2. Do not lower the whole stove when the temperature is high (if necessary, please contact the manufacturer directly).

Service

1 year warranty with lifetime support (warranty does not cover consumable components such as furnace tubes and seals).
