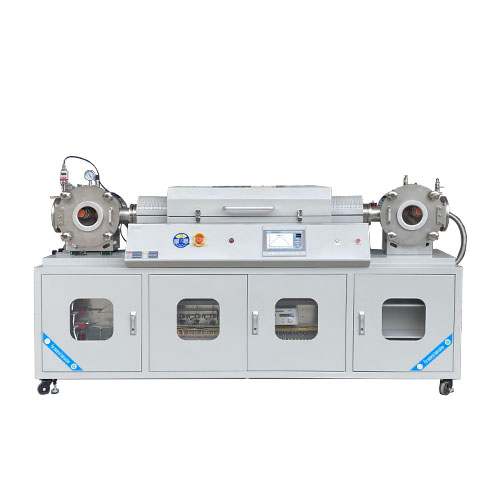

Roll to roll two-dimensional material preparation system

Release time: 2025-07-04 20:45:31  Number of views: 25

The roll to roll two-dimensional material preparation system is an advanced thin film material manufacturing equipment designed for large-scale and continuous production, specifically for efficient and controllable preparation of two-dimensional nanomaterials such as graphene, transition metal sulfides (such as MoS ₂, WS ₂), hexagonal boron nitride (h-BN), MXene, etc. This system integrates advanced flexible substrate transfer technology, high-precision deposition process, online detection and closed-loop control system, achieving a key leap from laboratory research to industrial mass production.



product details

main features
Efficient continuous production:
Realize batch and automated manufacturing, significantly improve production efficiency and capacity
Process flexibility:
Support multiple deposition techniques (CVD/PVD/ALD, etc.) and multi-step process series connection
Material diversity:
It can prepare various two-dimensional materials such as graphene, TMDs, hBN, MXene, etc. with strong compatibility and support for flexible substrates such as polymer films, metal foils, ceramic coatings, etc;
Intelligent control:
Full process PLC control, supporting remote monitoring and data traceability;
Energy conservation and environmental protection:
Accurate gas supply and exhaust gas recovery system to reduce energy consumption and pollution emissions.

Equipment name

Roll to roll two-dimensional material preparation system

Specification and model

NBD-O1200-100TP3D4ZY-N

power supply

AC380V 50/60HZ

rated power

10KW

Number of temperature zones

Three temperature and three control

precision

±1℃

heating element

Alloy heating wire

sensor type

K-type thermocouple with a diameter of 2 * 420mm

Tmax

1200℃

Long term working temperature

1100℃

Recommended heating rate

≤10℃/min

Size of furnace temperature zone

Φ150*(200+400+200)mm

Furnace tube specifications

quartz tubeΦ100*1600*3mm

Four channel proton flowmeter control system

Voltage: AC220V/50HZ
Power: 23W nitrogen calibration (automatic gas exchange)
One way, two way, three way: S500 1000SCCM with a diameter of 6.35, double card sleeve, 2-meter short wire, fluorine rubber seal, nitrogen calibration
Four way: S500 3SLM with a diameter of 6.35, double card sleeve, 2-meter short wire, fluorine rubber seal, nitrogen calibration

Low vacuum unit

Vacuum pump pumping rate: ≥ 4.4L/s
Negative pressure and constant pressure range: 13-12000pa
Ultimate vacuum degree of vacuum chamber: < 5 * 10-2 Torr (mechanically pumped for 20 minutes in cold state)

Roll to roll mechanism

A roll of copper foil weighs about 2KG, with a width of 80mm and a thickness of 0.04mm. Its moving speed is adjustable from 1-100mm/min;

Furnace body size

2700mm in length, 1400mm in height, and 900mm in depth

Furnace weight

About 530KG

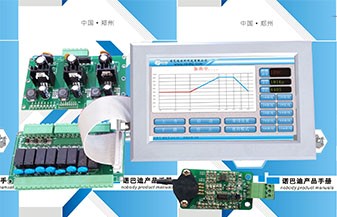

control system

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;
2. Pre order sintering is available to achieve unmanned sintering process curve sintering;
3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;
4. Capable of remote control and real-time observation of equipment status;
5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

Equipment Details


Vacuum Chamber
