Vacuum high-frequency induction melting furnace

Release time: 2025-05-29 17:54:26  Number of views: 32

This device is a streamlined high vacuum induction melting&casting furnace that can melt various alloys, with a maximum melting capacity of up to 1kg (calculated based on Fe density) and a maximum melting temperature of up to 2000 ℃. It is equipped with a secondary feeding mechanism that can perform secondary feeding in a vacuum or atmosphere protected environment. High temperature stirring mechanism can be installed to stir the melted sample at high temperature in an atmospheric environment, making the melting more uniform. The vacuum degree can reach 10-3Pa (using a molecular pump system).



product details

Equipment features:
1. Metal melting and casting can be carried out under a protective atmosphere
2. The maximum melting capacity can reach 1kg (calculated based on Fe density)
3. Equipped with manual pouring function, the sample can be poured under vacuum or atmosphere protection environment
4. Equipped with a secondary feeding mechanism, secondary feeding can be carried out under vacuum or atmospheric protectionenvironment
5. High temperature stirring mechanism can be installed to stir the melted sample at high temperature in an atmospheric environment, making the melting more uniform

Equipment model

VAHP2000-1KGTIDFY50L

Power specifications

15KW   380V

Secondary feeding mechanism

Three different materials can be sequentially added to the mother liquor

induction coil

Φ107*Φ92*84mm/Φ79*Φ62*72mm

Graphite crucible

Φ75*Φ59.5*105mm/Φ47*Φ35*88.5mm

Aluminum oxide sheath

Φ88xΦ78x105mm/Φ58xΦ50x88.5mm

Secondary feeding mechanism

Three different materials can be sequentially added to the mother liquor

induction coil

Φ107*Φ92*84mm/Φ79*Φ62*72mm

Graphite crucible

Φ75*Φ59.5*105mm

vacuum pump

VRD-8

Temperature control system (optional)

(Instrument temperature control)

Thermocouple (optional)

K-type (400-1200 degrees)/B-type (800-1600 degrees)/Φ 58x Φ 50x88.5mm/C-type (800-1600 degrees)

Mechanical mixing mechanism (including control system and BN stirring blade) (optional)

The mixing paddle can be raised and lowered up and down
Mixing blade material: BN
Speed: 0-200RPM (adjustable)

Boron nitride propeller (optional)

Water cooled copper mold (optional)

Standard specifications: Φ 25x80, Φ 30x80, 30x30x80, 50x25x80 (customizable specifications)

Water cooling equipment (optional)

CW-6200series

Vacuum system (optional)

NBD-103(B)Molecular pump system

High temperature mixing mechanism
Temperature controller
(Optional)

1. Warm stirring mechanism can stir the melted sample at high temperature in an atmospheric environment, making the melting more uniform
2. Paddle material: Boron nitride
3. Speed: 0-200rpm (adjustable)
4. Optional thermocouple embedded in graphite crucible wall for measuring and controlling melting temperature, with a maximum measurable temperature of 2000 ℃
5. Using PID method to adjust temperature, 30 temperature ranges can be set
6. Temperature rate: Room temperature~1000 ℃ (1 ℃/s) 1000-1600 ℃ (0.5 ℃/s) Temperature control accuracy can reach ± 3 ℃

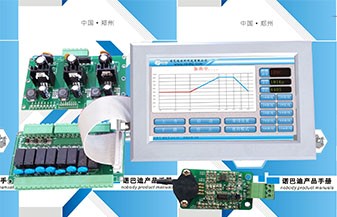

control system


1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;
2. Pre order sintering is available to achieve unmanned sintering process curve sintering;
3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;
4. Capable of remote control and real-time observation of equipment status;
5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

Atmosphere protection

1. This furnace body design can be filled with high-purity Ar gas, with a pressure of up to 0.02 MPa

The equipment is equipped with a mechanical pressure gauge with a testing range of -0.1MPa-0.15MPa

A float flowmeter (0.2-2L/min) is installed on the equipment to regulate the intake flow rate

Vacuum degree: 1Pa (using mechanical pump), 10-3Pa (using molecular pump system)

Standard configuration includes mechanical pump

water cooler

A water cooling machine with a capacity greater than 58L/min is required for water cooling in the equipment (the standard configuration does not include a water cooling machine, which can be purchased from our company)

Service and Support

One year limited warranty with lifetime support (warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below).
