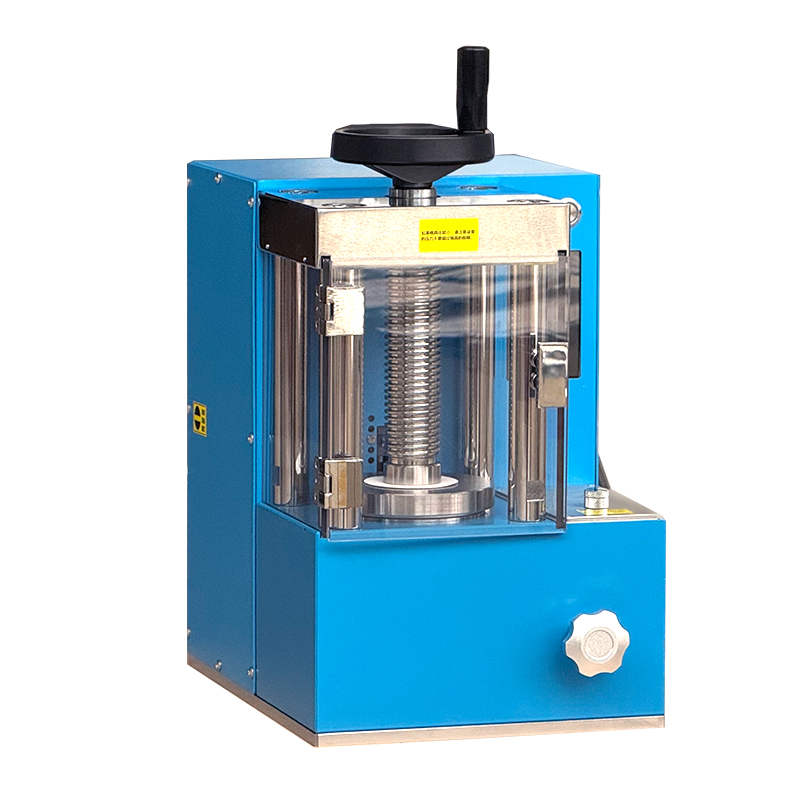

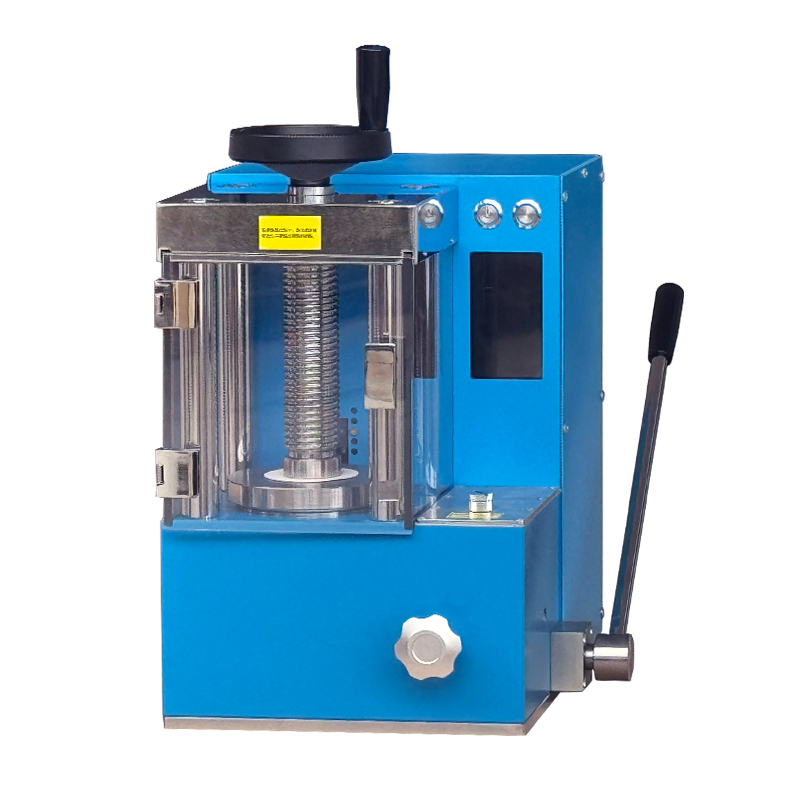

Electric/manual integrated tablet press

Release time: 2025-05-24 22:32:24  Number of views: 37

The manual and electric integrated tablet press is a multifunctional tablet press equipment that integrates both manual and electric operation modes. This design not only provides flexibility, but also enables each to leverage their respective advantages in different application scenarios, suitable for laboratory research, small-scale production, and medium-sized batch production needs. Users can choose manual mode for fine adjustment or use electric mode to improve work efficiency according to their actual needs. This device is widely used in industries such as pharmaceuticals, chemicals, food, metallurgy, etc., for compressing powder or granular substances into solid tablets. It can adapt to different pressing requirements of various materials and provide a stable and reliable operating experience-



product details

Equipment model

Pressure Range(Mpa)

workspace

Stroke(mm)

pressure stability

External dimensions

Power specifications

weight(kg)

Piston diameter/
Workbench diameter

NBD-DYPD-20

0-28

80*80*150

30

≤1Mpa/min

245*415*415

220v

58

95mm/105mm

NBD-DYPD-30

0-31.5

92*92*160

40

255*420*430

72

110mm20mm

NBD-DYPD-40

0-30

115*115*185

50

295*500*450

92

130mm/140mm

NBD-DYPD-60

0-33

185*185*250

50

405*565*470

140

150mm/160mm
