Equipment features:

1. High temperature working ability • Maximum temperature: 1700 ℃, able to meet the needs of various high-temperature heat treatments Temperature uniformity: The temperature distribution inside the furnace is uniform, ensuring that the sample can achieve consistent heat treatment effects at any position.

2. Fast heating and cooling • Fast heating speed: Using high-efficiency silicon molybdenum rods as heating elements, it can quickly heat up to the set temperature in a short time Cooling system: Equipped with an efficient cooling system that supports rapid cooling and improves production efficiency. Optional water-cooled or air-cooled system, choose the appropriate cooling method according to actual needs.

3. High precision temperature control • PID temperature control system: Adopting advanced PID temperature control system, supporting multi-stage program control, ensuring high temperature control accuracy and good repeatability Real time monitoring: equipped with high-precision thermocouples and other temperature sensors to monitor and adjust the temperature inside the furnace in real time.

4. Atmosphere control • Multiple atmosphere environments: Supports various atmosphere environments such as vacuum, inert gases (such as nitrogen, argon), reducing gases, etc Atmosphere control system: Equipped with advanced atmosphere control system, it can accurately control gas flow rate and proportion, ensuring the stability and consistency of the atmosphere environment.

5. Convenient operation • Touch screen control interface: equipped with a touch screen control interface, supporting data recording and remote monitoring, making it easy to operate and monitor the experimental process User friendly: With a user-friendly interface, it is easy to operate and maintain Program storage: Multiple experimental programs can be set and saved for easy reuse.

6. Safety design • Multiple protection measures: Built in multiple safety protection measures such as over temperature protection and over-current protection ensure safe operation Emergency stop function: It can quickly cut off the power supply in case of abnormal situations, ensuring the safety of personnel and equipment.

7. Structural design • All stainless steel structure: The furnace body is usually made of all stainless steel, with a polished or brushed surface, which is beautiful, generous, and corrosion-resistant Insulation layer: High performance insulation materials are used to effectively isolate heat, reduce energy consumption, and protect external equipment Modular design: Some models adopt modular design, which can be flexibly configured and expanded according to user needs.

8. Energy saving and environmental protection • Energy saving design: By optimizing the design of heating elements and insulation layers, energy consumption can be reduced and energy utilization efficiency can be improved.

Equipment name

High temperature vertical quenching furnace

Specification and model

1NBD-LT1700-60TI-200

Tmax

1650℃

power supply

Single phase 220V 50HZ

rated power

4.5kw

sensor type

heating rate

Furnace size

Furnace body size

control system

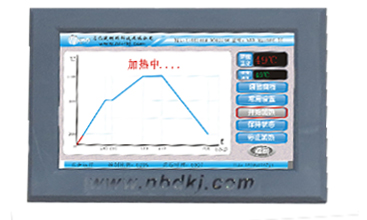

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;
2. Pre order sintering is available to achieve unmanned sintering process curve sintering;
3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;
4. Capable of remote control and real-time observation of equipment status;
5. Temperature correction: Nonlinear correction is performed throughout the sintering process based on the difference between the main control temperature and the sample temperature

温度精度

±1℃

heating element

High purity silicon molybdenum rod

Quenching jar

密封系统

1. Stainless steel flange;

2. Mechanical sealing method provides better sealing effect and is less prone to air leakage.

真空度：10Pa（机械泵）

Pressure measurement and monitoring

Gas supply system

net weight

260KG

Equipment usage precautions

Service Support

One year limited warranty, providing lifetime support (the warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below)

Equipment features:
1. Short wave infrared heating:
Efficient and energy-saving: Short wave infrared heaters can convert over 95% of electrical energy into thermal energy, far exceeding traditional resistance heating methods. Rapid heating:Short wave infrared heating has an extremely fast response speed andcan reach the set temperature in a short period of time. Local heating: Short wave infrared radiation can concentrate heating of the target area, reduce heat loss, and improve heating efficiency.

2. Twin tube design:
Double tube structure: Adopting a double tube design, two heating tubes are installed side by side to provide a more uniform heating effect. High power density: Twin tube design can providehigher power density in a smaller space, suitable for applications that require high energy input. Long lifespan: High quality quartz tube and tungsten wire materials ensure the long lifespan andstability of the heating tube.

3. Atmosphere control:
Multiple atmospheric environments: Supports vacuum, inert gases (such as nitrogen, argon), reducing gases, and other atmospheric environments. Atmosphere control system: Equipped withadvanced atmosphere control system, it can accurately control gas flow rate and proportion, ensuring the stability and consistency of the atmosphere environment.

4. Temperature control:
PID temperature control system: adopting advanced PID temperature control system, supporting multi-stage program control, ensuring high temperature control accuracy and good repeatability.Real time monitoring: equipped with high-precision thermocouples and real-time monitoring and adjustment of furnace temperature.

5. Convenient operation:
Touch screen control interface: Equipped with a touch screen control interface, it supports data recording and remote monitoring, making it easy to operate and monitor the experimental process.User friendly: With a user-friendly interface, it is easy to operate and maintain.

6. Safety design:
Multiple protection measures: Built in over temperature protection, over-current protection and other multiple safety protection measures ensure safe operation. Emergency stop function: It canquickly cut off the power supply in case of abnormal situations, ensuring the safety of personnel and equipment.

7. Efficient cooling:
Rapid cooling system: equipped with an efficient cooling system, supporting rapid cooling and improving production efficiency. Optional cooling method: Water cooling or air cooling system canbe selected according to actual needs.

Equipment name

Specification and model

NBD-HR1200-110TID4Z

power supply

Three phase 380V 50HZ

rated power

21KW

sensor type

K型

Tmax

1200℃

1150℃

φ200*276mm

Furnace body size

control system

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;
2. Pre order sintering is available to achieve unmanned sintering process curve sintering;
3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;
4. Capable of remote control and real-time observation of equipment status;
5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

Temperature Accuracy

+/- 1 °C

heating element

SEALING SYSTEM

Vacuum degree: 10Pa (mechanical pump)

Pressure measurement and monitoring

Gas supply system

net weight

162kg

Equipment usage precautions

Service Support

One year limited warranty, providing lifetime support (the warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below)

Equipment features:

1. Multi channel design

Multi channel output: capable of processing multiple liquid samples simultaneously, with each channel independently controlled, suitable for batch sample processing. High flexibility: Different numbers of channels can be configured according to experimental needs to meet diverse experimental requirements.

2. Precise control

Temperature control: Adopting a high-precision temperature control system to ensure a constant temperature of the liquid during the evaporation process Flow control: Equipped with precision flow regulating devices, it can accurately control the flow and pressure of gas phase output.

3. Efficient evaporation

High evaporation efficiency: Designed with an efficient evaporation chamber, it can quickly convert liquid into stable gas phase output. Uniform evaporation: Using special evaporation technology to ensure uniform evaporation of the liquid and avoid sample decomposition caused by local overheating.

4. Safety design

Overheating protection: Built in overheating protection device, automatically shuts off when the temperature exceeds the set value to prevent equipment damage. Leak detection: Equipped with a leak detection system, once a gas leak is detected, it will immediately sound an alarm and stop working.

5. Easy to operate

Touch screen control: equipped with a touch screen operation interface, supporting multi-stage program control, and simple and intuitive operation. Data recording: Supports data recording function, which can record key parameters such as temperature and flow rate, facilitating experimental data analysis.

6. Strong durability

Corrosion resistant materials: Made from corrosion-resistant materials, suitable for the evaporation of various chemical reagents. Easy maintenance: The design features components that are easy to disassemble and clean, making it convenient for daily maintenance and cleaning.

Equipment name

Multi channel liquid gas-phase generator

Specification and model

NBD-TS0.1LZ3

power supply

Single phase 220V 50HZ

rated power

4KW

sensor type

Tmax

Furnace size

Furnace body size

control system

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;

2. Pre order sintering is available to achieve unmanned sintering process curve sintering;

3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;

4. Capable of remote control and real-time observation of equipment status;

5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

Temperature Accuracy

±1℃

heating element

Mo doped Fe Cr Al alloy

net weight

35kg

Service Support

One year limited warranty, providing lifetime support (the warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below)

Equipment features:

1. Microwave heating technology for efficient heating: Microwave heating can quickly and uniformly transfer energy to the sample, significantly reducing heating time. Temperature uniformity: Microwave heating allows both the interior and surface of the sample to be heated simultaneously, avoiding the temperature gradient problem in traditional heating methods.

2. High temperature capability: The working temperature can reach 1550 ℃. Temperature uniformity: The temperature distribution inside the furnace is uniform, ensuring that the sample can obtain consistent heat treatment effect at any position.

3. The safety protection system includes over temperature protection, over-current protection, emergency stop function, and microwave leak detection device.

Power specifications

AC230V 50HZ

Tmax

1550℃

Rated current

10A

power

2000W

accessory

Structure Introduction

Temperature Accuracy

+/- 1 °C

Equipment usage precautions

Service Support

1-year warranty with lifetime support (warranty does not include consumable parts such as bowls and seals).

Equipment features:

1. MoSi2 heating element suspension installation, easy to replace;
2. Vacuum ceramic fiber board constitutes insulation material;
3. RHTV type tube furnace with support for vertical operation;
4. B-type thermocouple;
5. The power regulation unit is equipped with a low-voltage transformer and a thyristor regulator;
6. Temperature selection limiter, used for over temperature protection of furnaces and goods;
7. The switchgear with controller is separated from the kiln and installed in a separate vertical cabinet;
8. Electric rotary release structure, quenching is safer and the structure is more stable.

Equipment name

Specification and model

NBD-LT1700-60TI-200

Tmax

power supply

Single phase 220V 50HZ

rated power

5KW

Φ220*210mm

Furnace tube material

B-type thermocoupleΦ8*150mm

Dimensions inside the quenching tank

1℃/H-20℃/Min

Air inlet and outlet system

Furnace body size

Length 1075 * Height 1780 * Depth 610mm

control system

11. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;
2. Pre order sintering is available to achieve unmanned sintering process curve sintering;
3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;
4. Capable of remote control and real-time observation of equipment status;
5. Temperature correction: Nonlinear correction is performed throughout the sintering process based on the difference between the main control temperature and the sample temperature

Temperature Accuracy

±1℃

heating element

High purity silicon molybdenum rod

Pressure measurement and monitoring

Mechanical pressure gauges are used, and the gauge housing is of an airtight structure, which can effectively protect the internal components from environmental influences and debris intrusion. At the same time, it has strong corrosion resistance and high temperature resistance.

Gas supply system

The gas flow rate is controlled by a float flowmeter, which is integrated with the equipment and has undergone leak testing before leaving the factory.

After reaching the set temperature, the trip can be performed as needed, and the entire trip process can be clearly seen through the observation port

net weight

260kg

Equipment usage precautions

1. When the furnace temperature of the equipment is ≥ 300 ℃, it is forbidden to open the furnace to avoid injury;

2. When using the equipment, the pressure inside the furnace tube should not exceed 0.125MPa (absolute pressure) to prevent equipment damage caused by excessive pressure;

3. When used under vacuum, the operating temperature of the equipment should not exceed 800 ℃.

4. The internal pressure of the gas supply cylinder is relatively high. When introducing gas into the furnace tube, a pressure reducing valve must be installed on the cylinder. It is recommended to purchase a small pressure reducing valve for testing, with a range of 0.01MPa-0.15MPa, which will be more precise and safe to use.

5. When the temperature of the furnace body is higher than 1000 ℃, the furnace tube cannot be in a vacuum state. The pressure inside the furnace tube should be equivalent to atmospheric pressure and maintained at atmospheric pressure;

6. Long term use temperature of high-purity quartz tube ≤ 1100 ℃

7. It is not recommended to close the exhaust and intake valves at the flange end of the furnace tube during heating experiments. If it is necessary to close the gas valve to heat the sample, it is necessary to constantly monitor the reading on the pressure gauge. The absolute pressure gauge reading should not exceed 0.15 MPa, and the exhaust valve must be opened immediately to prevent accidents (such as furnace tube rupture, flange flying out, etc.).

Service Support

One year limited warranty, providing lifetime support (the warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below)

PRODUCT MODEL

NBD-G1200-26TI2F-350

Electrical specifications

three-phase380V 50HZ

Tmax

1150℃

rated power

12KW

Type of temperature measuring element

K type thermocouple420mm

Heating temperature zone size

Φ350*420mm

310sStainless steel pipe

70L

0~11 revolutions per minute

0~19 revolutions per minute

Length 1430 x Depth 1060 x Height 2560mm

Recommended heating rate

Main control interface

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;
2. Pre order sintering is available to achieve unmanned sintering process curve sintering;
3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;
4. Capable of remote control and real-time observation of equipment status;
5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

Temperature Accuracy

+/- 1 ℃

High definition quartz observation window for working cavity

Pressure measurement and monitoring

Using a mechanical pressure gauge with shock-absorbing oil to create damping during pressure fluctuations and reduce pointer oscillation back and forth.

Gas supply system

The gas flow rate is controlled by a float flowmeter, which is integrated with the equipment and has undergone leak testing before leaving the factory.

≈650KG

Equipment usage precautions

When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure;
When used under vacuum, the operating temperature of the equipment should not exceed 800 ℃.

Service Support

1-year warranty with lifetime support (warranty does not include consumable parts such as furnace tubes and sealing rings)。

Equipment features:

1. The furnace tube is made of high-purity alumina material, which has superior corrosion resistance and high temperature resistance;
2. High purity Al2O3 fiber refractory insulation material has superior insulation effect and effectively reduces equipment power consumption;
3. The furnace body adopts a double-layer air-cooled structure technology, greatly reducing the surface temperature of the shell;
4. Adopting intelligent PID fuzzy temperature control, 7-inch touch screen centralized control, can intuitively display the "time temperature" curve;

PRODUCT MODEL

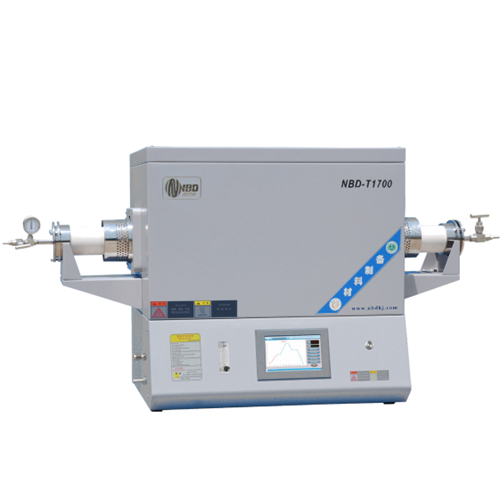

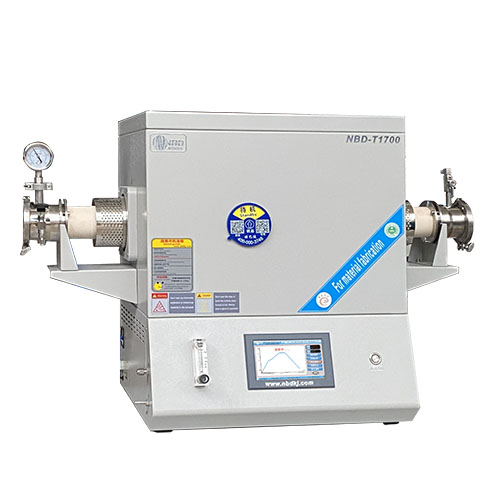

NBD-T1500-50TI

NBD-T1700-50TI

Electrical specifications

AC220V 1.5KW

AC220V 1.8KW

Reachable temperature

1500 ℃ （<1 hour）

1700 ℃ （<1 hour）

Continuous temperature

1450 ℃ （continuous）

1650 ℃ （continuous）

Achievable heating rate

≤  20 ℃/min

Heating zone length

180mm

Furnace tube size

Φ50*700mm

Temperature field distribution

As shown in the figure: This is the temperature zone curve of the 1700 ℃ equipment

control system

1. The NBD-101E embedded operating system features a graphical interface for exchanging Chinese and English, a 7-inch true color touch screen input, an intelligent human-machine dialogue mode, real-time heating power display, and non-linear temperature correction;

2. The experimental process is more intuitive and the operation is more convenient;

3. It has functions such as over temperature alarm, disconnection prompt, and leakage protection.

Temperature Accuracy

+/- 1 ℃

heating element

High purity silicon carbide rod

High purity silicon molybdenum rod

SEALING SYSTEM

Vacuum degree: ≤ 10Pa (mechanical pump)

Pressure measurement and monitoring

Using a mechanical pressure gauge with shock-absorbing oil to create damping during pressure fluctuations and reduce pointer oscillation back and forth.

Gas supply system

net weight

30KG

45KG

Equipment usage precautions

1、When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure;
2、When used under vacuum, the operating temperature of the equipment should not exceed 800 ℃.
3、Before using this device, please carefully read the precautions for using corundum products;

Service Support

1-year warranty with lifetime support (warranty does not include consumable parts such as furnace tubes and seals).

Equipment features:
1. Rotatable design
90 ° rotation: The furnace body can rotate 90 degrees along the axis, making the loading and unloading of samples more convenient and efficient.
Safety locking mechanism: equipped with a safety locking mechanism to ensure that the furnace body will not rotate accidentally during the heating process, ensuring operational safety.

2. Precise temperature control
PID regulation: Advanced PID temperature controller is used to achieve precise temperature control and ensure that the heating curve meets the preset parameters.
High precision sensor: Built in high-precision temperature sensor, real-time monitoring of temperature changes inside the furnace, ensuring stable and reliable process conditions.
Rapid heating and cooling: Optimize the layout of heating elements to achieve rapid heating and cooling, shorten the process cycle, and improve production efficiency.
3. Vacuum atmosphere control
Vacuum pump system: Equipped with an efficient vacuum pump system, it can pump the furnace to the required vacuum degree, ensuring heating treatment under anaerobic or other specific atmospheric conditions.
Atmosphere control system: Inert gases (such as argon, nitrogen, etc.) can be introduced according to process requirements to maintain a stable atmosphere and prevent sample oxidation or reaction.
4. Compact design and portability
Compact design: The overall design is compact and occupies a small area, making it very suitable for use in laboratories with limited space.
5. Efficient heating and cooling
Rapid heating and cooling: Optimize the layout of heating elements to achieve rapid heating and cooling, shorten the process cycle, and improve production efficiency.
Cooling system: Integrated water cooling or other cooling methods to accelerate the cooling process and reduce waiting time.
6. Safety protection measures
Over temperature protection: Built in over temperature protection mechanism, automatically cuts off power when abnormal temperature rise is detected to prevent equipment damage.
Emergency stop button: A clear emergency stop button should be installed outside the furnace to ensure that operators can quickly take action in case of emergencies.
7. Automation and Intelligence
Programming control: supports setting heating path, atmosphere flow rate and other parameters through computer or touch screen interface, simplifies operation process and improves automation level.
Data recording and analysis: capable of automatically recording key operational data and generating reports for subsequent analysis and improvement.
Remote monitoring: supports remote monitoring and management through the network, making it convenient for maintenance personnel to keep track of equipment status at any time.

Electrical specifications

Electrical specifications

AC220V    1.0KW

Reachable temperature

1200 ℃ （<1 hour）

rated temperature

Long term use temperature range

300~1150℃

heating rate

1℃/H-20℃/Min

Furnace tube diameter

Furnace body size

350×390×350mm

Temperature field distribution

As shown in the figure: This is the temperature zone curve of the device (constant temperature zone size: 100mm)

Temperature Accuracy

±1℃

heating element

Mo doped Fe Cr Al alloy

SEALING SYSTEM

Vacuum degree: 10Pa (mechanical pump)

Pressure measurement and monitoring

net weight

30kg

Equipment usage precautions

1. When the furnace temperature of the equipment is ≥ 300 ℃, it is forbidden to open the furnace to avoid injury;

2. When using the equipment, the pressure inside the furnace tube should not exceed 0.125MPa (absolute pressure) to prevent equipment damage caused by excessive pressure;

3. When used under vacuum, the operating temperature of the equipment shall not exceed 800 ℃;

4. The internal pressure of the gas supply cylinder is relatively high. When introducing gas into the furnace tube, a pressure reducing valve must be installed on the cylinder. It is recommended to purchase a small pressure reducing valve for testing, with a range of 0.01MPa-0.15MPa, which will be more precise and safe to use;

5. When the temperature of the furnace body is higher than 1000 ℃, the furnace tube cannot be in a vacuum state. The pressure inside the furnace tube should be equivalent to atmospheric pressure and maintained at atmospheric pressure;

6. The long-term use temperature of high-purity quartz tube is ≤ 1100 ℃;

7. It is not recommended to close the exhaust and intake valves at the flange end of the furnace tube during heating experiments. If it is necessary to close the gas valve to heat the sample, it is necessary to constantly monitor the reading on the pressure gauge. If the absolute pressure gauge reading is greater than 0.15 MPa, the exhaust valve must be immediately opened to prevent accidents (such as furnace tube rupture, flange flying out, etc.).

Service Support

One year limited warranty with lifetime support (warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below).

Equipment features

1. Efficient and energy-saving

The materials in the furnace are heated evenly and quickly, effectively shortening the production cycle and reducing energy consumption.

2. Multi functionality and high-precision temperature control:

High temperature control accuracy, maintained at ± 1 ℃, meeting the heating and processing needs of various materials. Eight samples can be placed simultaneously and subjected to heat treatment at different temperatures to improve production efficiency.

3. Easy to operate and intelligent:

The device adopts a touch screen+temperature control module, which can achieve one click heating or stopping of eight channels, and individual channels can also be controlled separately.

4. Structure and Design

The furnace body consists of 8 small tube furnaces, using high-purity quartz furnace tubes, with a compact structure and small footprint. There are 8 independent air inlets and 8 independent air outlets on both sides of the furnace body, ensuring that the samples in each channel can be heat-treated under vacuum or atmospheric protection.

Equipment name

Vertical eight channel high-throughput tube furnace

Specification and model

NBD-LT1200-LTS-MC8

Tmax

1150℃

heating rate

1℃/H-20℃/Min

rated power

power supply

Number of temperature zones

sensor type

Temperature zone size

Inner diameter * height Φ 80 * 200mm

Furnace tube size

1690*1400*700（Length * Height * Depthmm）

control system

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;

2. Pre order sintering is available to achieve unmanned sintering process curve sintering;

3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;

4. Capable of remote control and real-time observation of equipment status;

5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

Temperature Accuracy

±1℃

Equipment Details

heating element

Mo doped Fe Cr Al alloy

SEALING SYSTEM

Vacuum degree: 10Pa (mechanical pump)

Pressure measurement and monitoring

Gas supply system

net weight

260kg

Equipment usage precautions

When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure;
When used under vacuum, the operating temperature of the equipment should not exceed 800 ℃.

Service Support

One year limited warranty with lifetime support (warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below).

Equipment name

Experimental apparatus for reducing and extracting alloy preparation

power supply

Single phase 220V 50HZ

rated power

6KW (including 2KW molecular pump unit)

heating element

HRE alloy resistance wire

Furnace temperature control accuracy

±1℃

Temperature control sensor (furnace)

K-type thermocouple with a diameter of 2 * 420mm

Temperature control accuracy of reaction kettle

±5℃

Temperature sensor (reactor)

K-type right angle thermocouple with a diameter of 8mm * 100+450

Tmax

1200℃

rated temperature

1150℃

Recommended heating rate

≤20℃/min

Size of furnace temperature zone

φ240*220mm

Sintering crucible size

Outer diameter of 133mm, height of 180mm (at 1100 ℃)

Collect crucible dimensions

Outer diameter of 120, inner diameter of 34.5, height of 30 (at 200-300 ℃)

Molecular pump unit power supply

380V 50HZ

Vacuum pump model

DRV30 KF40 connector extraction speed of 8.3L/s

Molecular pump model

FF-160/620F LF interface with a pumping speed of 600L/s and a speed of 27000 r/min

Overall ultimate vacuum degree of the system

≤5.3×10^-4Pa

Furnace body size

Length 1150 * Height 1480 * Depth 700mm

Furnace weight

About 200KG

control system

heating element

Equipment name

Experimental apparatus for reducing and extracting alloy preparation

power supply

Single phase 220V 50HZ

rated power

6KW (including 2KW molecular pump unit)

heating element

HRE alloy resistance wire

Furnace temperature control accuracy

±1℃

Temperature control sensor (furnace)

K-type thermocouple with a diameter of 2 * 420mm

Temperature control accuracy of reaction kettle

±5℃

Temperature sensor (reactor)

K-type right angle thermocouple with a diameter of 8mm * 100+450

Tmax

1200℃

rated temperature

1150℃

Recommended heating rate

≤20℃/min

Size of furnace temperature zone

φ240*220mm

Sintering crucible size

Outer diameter of 133mm, height of 180mm (at 1100 ℃)

Collect crucible dimensions

Outer diameter of 120, inner diameter of 34.5, height of 30 (at 200-300 ℃)

Molecular pump unit power supply

380V 50HZ

Vacuum pump model

DRV30 KF40 connector extraction speed of 8.3L/s

Molecular pump model

FF-160/620F LF interface with a pumping speed of 600L/s and a speed of 27000 r/min

Overall ultimate vacuum degree of the system

≤5.3×10^-4Pa

Furnace body size

Length 1150 * Height 1480 * Depth 700mm

Furnace weight

About 200KG

control system

heating element

Equipment features:

1. Five sided heating design

Uniform heating: Heating the sample uniformly throughout the entire chamber by simultaneously heating five surfaces (front, back, left, right, and bottom) to reduce temperature differences.

Efficient heating element: Using high-density silicon molybdenum or resistance wire as the heating element, it can work stably at high temperatures up to 1200 ℃ and provide efficient heating performance.

2. Precise temperature control

PID temperature control system: adopting advanced PID (proportional integral derivative) controller to ensure the accuracy and stability of temperature control.

High precision sensor: Built in high-precision temperature sensor, real-time monitoring of temperature changes inside the furnace, ensuring stable and reliable process conditions.

3. High temperature resistant materials

Furnace material: High purity alumina fiber is usually used as the furnace material, which has excellent insulation performance and chemical stability, and can work stably for a long time at high temperatures.

Refractory layer: designed with multiple layers of refractory materials, effectively reducing heat loss and improving heating efficiency.

3. Automation and Intelligence

Programming control: supports setting parameters such as heating path and cooling rate through computer or touch screen interface, simplifies operation process and improves automation level.

Data recording and analysis: capable of automatically recording key operational data and generating reports for subsequent analysis and improvement.

Remote monitoring: supports remote monitoring and management through the network, making it convenient for maintenance personnel to keep track of equipment status at any time.

Specification and model

NBD-M1200-40(B)TI

precision

±1℃

Touch screen size

7.0"

rated power

380V/10.0KW

sensor type

K type thermocouple

Tmax

1200℃

rated temperature

1150℃

Recommended heating rate

≤10/min

Furnace space

L400×H400×W400mm

Net dimensions of furnace body shape

L780×H1650×W850mm

weight

≈320KG

控制系统control system

heating element

Atmosphere protection box
(Optional)

Equipment features:
1. Split design
Modular structure: The heating section, crucible section, and control system are independently designed for easy maintenance, upgrading, and customization.

2. Material mixing system
Uniform mixing: Equipped with a stirring device, the melt can be stirred during the melting process to ensure uniform distribution of components and improve alloy quality.
Adjustable speed control: According to different material characteristics and process requirements, the mixing speed can be adjusted to achieve the best mixing effect.

3. Four automatic rotating crucibles
Designed with four crucibles taking turns for feeding, melting, and casting, achieving a continuous and uninterrupted production process.
High degree of automation: automatic rotation, positioning, and casting operations of the crucible are achieved through programming control, reducing manual intervention and improving operational accuracy.

4. Efficient heating system
Heating method: Resistance wire is used as the heating element to ensure efficient energy conversion and uniform heating effect.

5. Precise temperature control and atmosphere control
PID temperature control system: using a PID controller to achieve precise temperature control, ensuring temperature stability and consistency during the melting process.
Inert gas protection: supports operation in an inert gas environment (such as argon, nitrogen) to prevent sample oxidation or other chemical reactions.

6. Safety and Maintenance
Over temperature protection: Built in over temperature protection device, automatically cuts off power when the temperature rises abnormally, preventing equipment damage.
Emergency stop button: Set up a clear emergency stop button to ensure the safety of operators.

Equipment name

Split vertical ingot melting furnace

Equipment model

NBD-PL1100-207TI5LN

power supply

Three phase 380V 50HZ

rated power

12KW

Furnace temperature control accuracy

±1℃

Temperature control sensor

K-type thermocouple with a diameter of 2 * 280mm

Tmax

800℃

Recommended heating rate

≤5℃/min

Size of furnace temperature zone

φ250*430mm

Melting crucible material and size

310S stainless steel with an inner diameter of φ 207 * 330mm and an effective volume of 5L

Pneumatic high-temperature ball valve diameter for material discharge

φ20

Pneumatic valve inlet pipe diameter

Outer diameter φ 8

Pneumatic valve working pressure

0.5-1MPa

Material mixing rotation speed

200-500r/min

Number of mixing rod blades

3个

Mixing rod lifting stroke

100mm

Quantity of feeding crucibles

4 (automatic rotating workstations)

Horizontal push-pull travel

500mm

Furnace body size

Length 1690 * Height 1770 * Depth 700mm

Furnace weight

Approximately 440KG (including control cabinet)

Equipment Details

heating element
