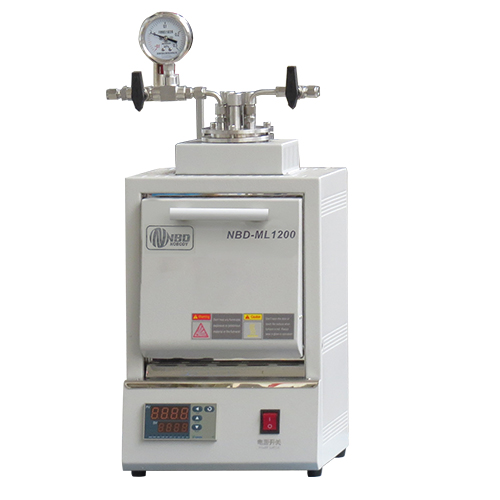

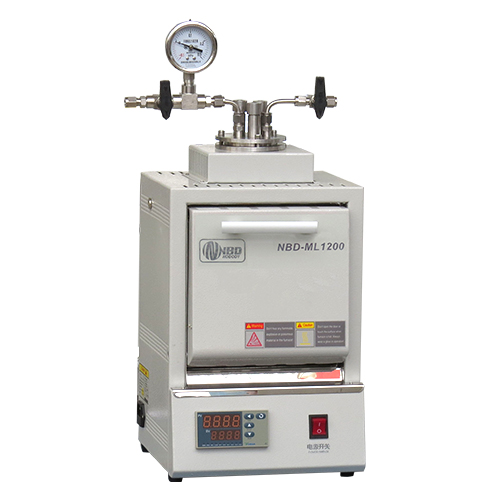

A vacuum atmosphere furnace (box and tube furnace) is an industrial equipment that uses a vacuum or controlled atmosphere environment for high-temperature heat treatment. It is equipped with a water-cooled flange design, which effectively reduces the temperature of the flange and sealing parts, ensures the sealing performance in high vacuum environments, and improves the safety and stability of the equipment. Widely used in processes such as material sintering, annealing, quenching, brazing, cry...
| Equipment characteristics: 1. The sample can be directly placed in the glove box in the large transition chamber and subjected to heat treatment under protective gas, 2. The refractory insulation material made with advanced technology has low heat loss and effectively reduces equipment power; 3. Can meet various material heat treatment sintering processes; 4. Small in size, lightweight, and does not occupy laboratory space. | ||
Specification Model | NBD-M1200-60CI | ||
heating rate | 1℃/H-20℃/Min | ||
rated power | 1.2KW | ||
sensor type | Type K thermocouple | ||
Tmax | ≤20℃/分钟 | ||
rated temperature | 1150℃ | ||
Effective space of furnace | Length 100 * Height 100 * Depth 100mm | ||
Size of sealed quartz tube | φ60*230mm | ||
Net dimensions of furnace body shape | Length 260 x Height 600 x Depth 260mm | ||
control system |
| 1. NBD-101E embedded operating system has a graphical interface for exchanging Chinese and English, a 7-inch true color touch screen input, an intelligent human-machine dialogue mode, and non-linear temperature correction; 2. 15 curves can be pre stored, and each curve can be set with 30 segments of "time temperature" nodes, saving time for repeatedly modifying curves; 3. It has functions such as over temperature alarm, disconnection prompt, and leakage protection; | |
temperature accuracy | +/- 1℃ | ||
heating element |
| Alloy resistance wire | |

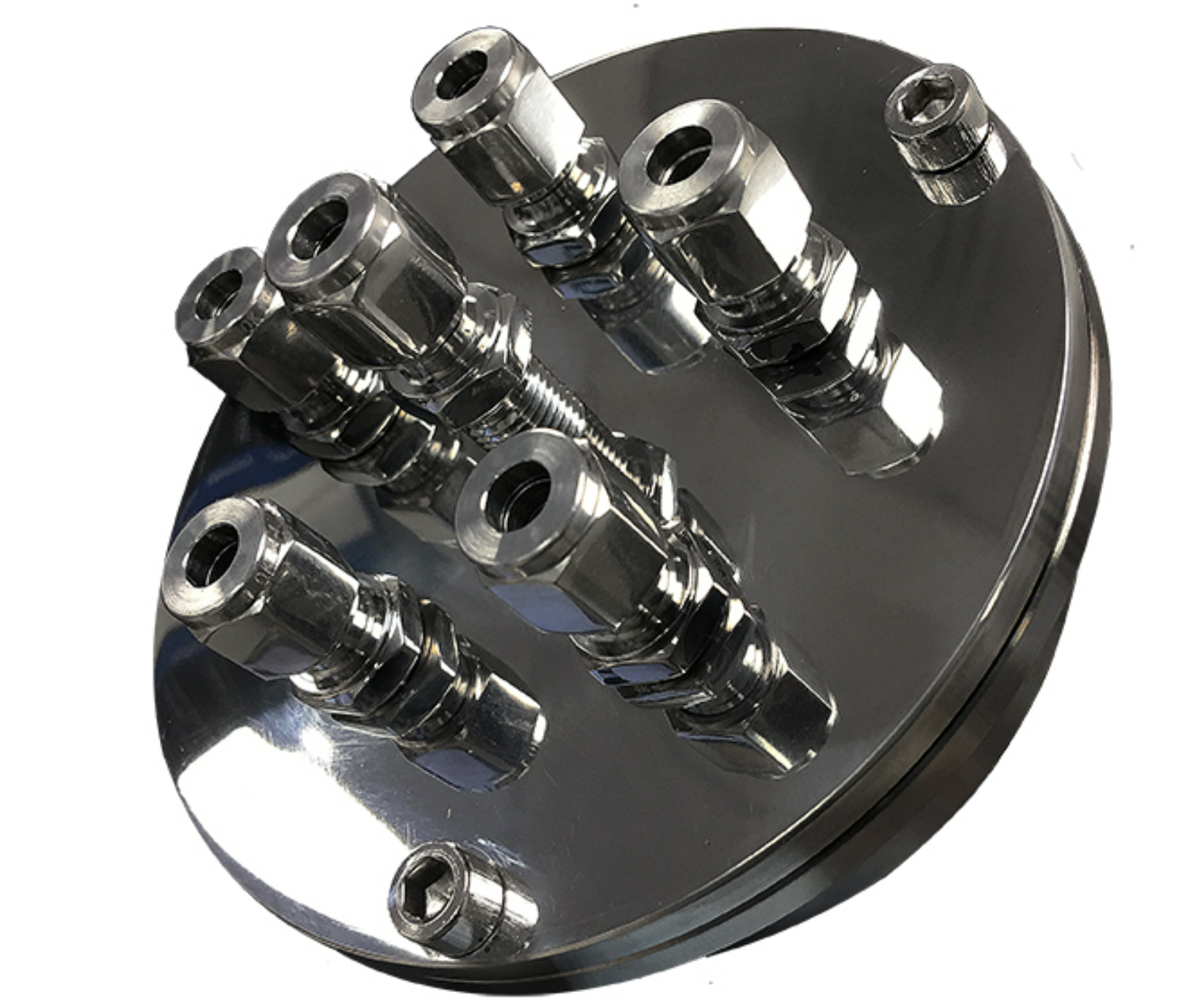

Sealed flange structure |
| Sealed with corrosion-resistant and high-temperature resistant flanges | |
Electrode customization (optional) |
| The number of electrodes and furnace tube materials can be customized according to the requirements of materials, design, and manufacturing processes | |

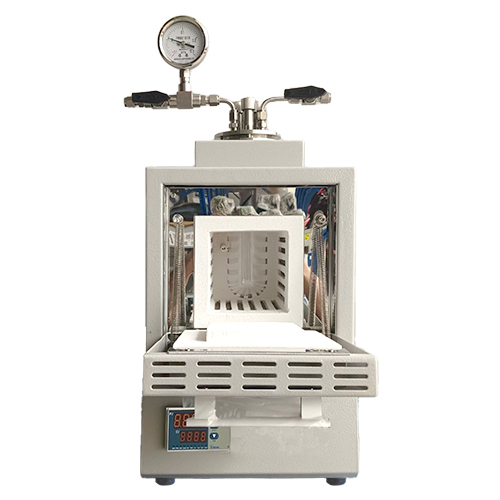

Inside the furnace |
| Using high-purity quartz material as the furnace tube, it has good high temperature resistance and corrosion resistance, suitable for heating samples in high vacuum or specific atmosphere to maintain sample purity. | |
Weakly corrosive gas preheater (optional) |
| The whole body is made of 316L material, which can be preheated for various gases and corrosive gases to meet special process requirements, with a maximum temperature of 6600℃ | |
Net weight | About 23KG | ||
Equipment usage precautions | 1.When the furnace temperature of the equipment is ≥ 300 ℃, it is forbidden to open the furnace to avoid injury; 2. Minor cracks caused by continuous use of the furnace are a normal phenomenon and do not affect the normal use of the equipment; | ||
Service Support | 1-year warranty, providing lifetime support (excluding consumable parts within the warranty scope). | ||
