Device Name

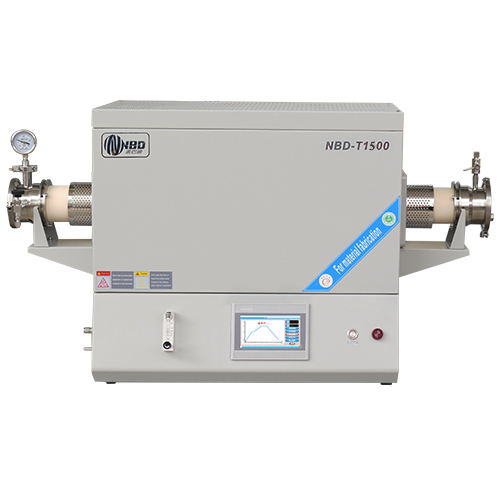

Dual temperature and dual control tube furnace

source

Single phase 220V 50HZ

Rated power

6KW

Temperature measuring element type

S-type thermocouple

Tmax

1450℃

Heating temperature zone size

First temperature zone：Φ100*225mm  Second temperature zone：Φ100*225mm

Furnace tube size

Φ100*1200mm

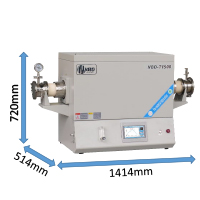

External dimensions

1414mm long x 720mm high x 514mm deep

Heating rate

1℃/H-20℃/Min

weight

350kg

control system

1. Sintering process curve setting: dynamically display the setting curve, the equipment sintering can pre store multiple process curves, and each process curve can be freely set;
2. Can schedule sintering and achieve unmanned sintering process curve sintering;
3. Real time display of sintering power and voltage information, recording sintering data, and export to achieve paperless recording;
4. Capable of remote control and real-time observation of equipment status;
5. Temperature correction: The difference between the main control temperature and the sample temperature is corrected nonlinearly throughout the sintering process

Appointment sintering

Optimize equipment utilization, ensure sintering process stability, save waiting time, and achieve efficient and orderly sample preparation

Nonlinear temperature correction

By using algorithms to nonlinearly correct the temperature deviation between the control point and the sample due to their different positions in the temperature field, the consistency between the control temperature and the sample temperature is improved, the operation is simplified, and the accuracy of experimental data is enhanced.

remote control

You can log in to the control system anytime and anywhere through computers, mobile phones, and other terminals to view the operating status of the heating furnace (temperature, pressure, heating rate, etc.), and remotely adjust parameters and start/pause programs according to experimental needs. No need to travel back and forth to the laboratory at night or on holidays to meet the parameter tuning needs during the experimental process; Real time monitoring of key experimental processes can also be achieved during cross regional business trips, significantly reducing ineffective commuting time and allowing researchers to allocate work energy more efficiently.

data storage

Ensure data security, integrity, standardized management, and efficient retrieval

Multiple sets of exclusive process programs can be pre-set

Multiple types of experiment specific temperature programs can be preset to ensure experimental repeatability and ease of operation, support process optimization and data tracing, adapt to team collaboration and technical inheritance, greatly improving experimental efficiency and design flexibility.

Heating element

High purity silicon carbon rods with superior acid and corrosion resistance

Sealing system

Vacuum degree: 10Pa (mechanical pump)

Pressure measurement and monitoring

Using a mechanical pressure gauge, the outer shell of the gauge is an airtight structure, which can effectively protect the internal components from environmental impact and debris intrusion, and has strong corrosion and high temperature resistance.

Gas supply system

The gas flow rate is controlled by a float flowmeter, which is integrated with the equipment and has undergone leak testing before leaving the factory.

Net weight

350kg

Equipment usage precautions

1. When the furnace temperature of the equipment is ≥ 300 ℃, it is prohibited to open the furnace to avoid injury;
2. The slight cracks generated by continuous use of the furnace are normal phenomena and do not affect the normal use of the equipment;

Service support

One year limited warranty with lifetime support (warranty does not include consumable parts such as handling pipes and O-rings. Please order replacement parts at the relevant product section below.)
