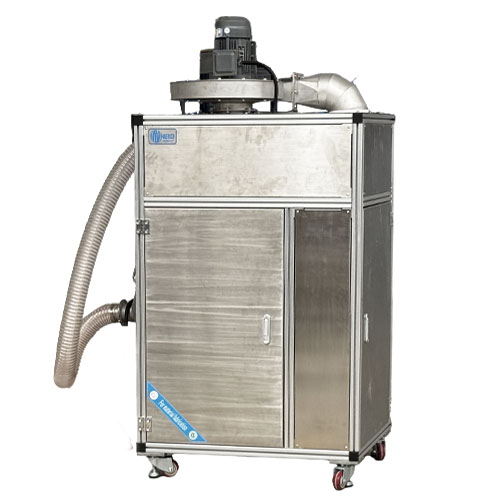

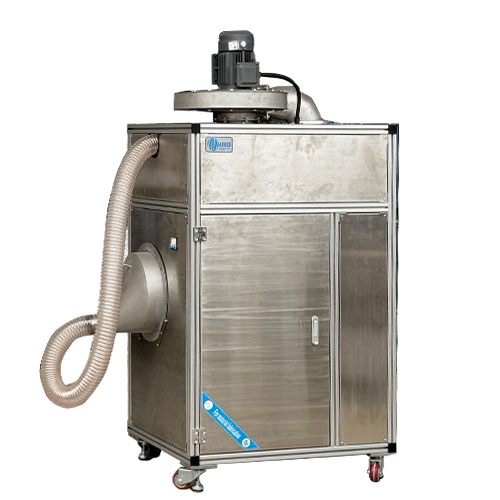

This NBD brand 304 stainless steel cyclone dust collector is an efficient centrifugal dust removal and purification equipment developed specifically for industrial dust control scenarios. It integrates three core functions: dust separation, airflow transportation, and dust collection. The core dust separation efficiency can reach 85%, and it can efficiently process various non stick solid particles such as dry dust, granular powder, and debris materials. It is widely suitable for dust removal an...
 | Equipment characteristics: 1. All stainless steel corrosion-resistant structure: The equipment body is made of 2.0mm thick 304 food grade stainless steel material, which has undergone sandblasting surface treatment and has excellent corrosion resistance, wear resistance, and easy cleaning performance. It can adapt to complex industrial conditions with high dust and certain corrosiveness, and its service life far exceeds that of ordinary carbon steel equipment. 2. Efficient centrifugal separation technology: Using the classic cyclone centrifugal separation structure, combined with the 9-19 series high-pressure centrifugal fan, it can achieve high air volume suction of 617-832m ³/h and high total pressure conveying of 2231-2017Pa. At a stable speed of 2830r/min, it can quickly separate solid particles in the dusty airflow from the air, with a separation efficiency stable at over 85%, effectively reducing the concentration of emitted dust. 3. Compact structure and convenient installation: The overall structure adopts a vertical formal installation, matched with special profile fixed brackets and external cover plates, which can be directly fixed on the ground without complex civil construction; The equipment comes standard with standardized inlet, outlet, and discharge pipeline interfaces, which can be directly connected to on-site dust removal pipelines and dust collection devices, achieving instant installation and use, and adapting to the installation needs of the vast majority of small and medium-sized industrial dust removal scenarios. 4. Stable, reliable, and low maintenance: Equipped with a 1.1KW standard three-phase 380V/50HZ industrial motor, it runs stably, has low noise, and has no complex and vulnerable parts. It only requires regular cleaning of dust and inspection of pipeline seals for daily use, with extremely low maintenance costs. | ||
Equipment characteristics: Centrifugal fan model | 9-19-3.15A | ||
| Fan flow range | 617-832m³/h | ||
| fan total pressure | 2231-2017Pa | ||
| fan speed | 2830r/min | ||
| Electrical specifications | 380V 50HZ | ||
| Power | 1.1KW | ||
| separation efficiency | 85% | ||
| Applicable Medium | Dry dust, granular powder, and debris materials | Prohibit damp and sticky wall materials | |
| total height (H) | 1294 mm | Including dust collector and fan | |
| Dust collector size | φ300*858mm | Effective diameter+height of dust collector | |
| air inlet | Outer diameter of 80mm | Inner diameter of 76mm | |
| Dust collector outlet | Outer diameter φ 146mm | Inner diameter of φ 142mm | |
| Fan outlet | Length 120 * Width 105mm | With a diameter of 150 * 1000mm cloth bag | |
| Discharge port diameter | Connection method KF100 | KF100 (standard KF100 joint with a diameter of 108) | |
| Main material | 304 stainless steel | ||
| wall thickness | 2.0mm | ||
| surface treatment | sandblasting | ||
| Installation method | Fixed profile frame with external cover plate | Vertical formal attire | |
| Furnace body size with shell support: length 940 * height 1925 * depth 720mm (with suction hood length 1350mm) | |||
