Device Name

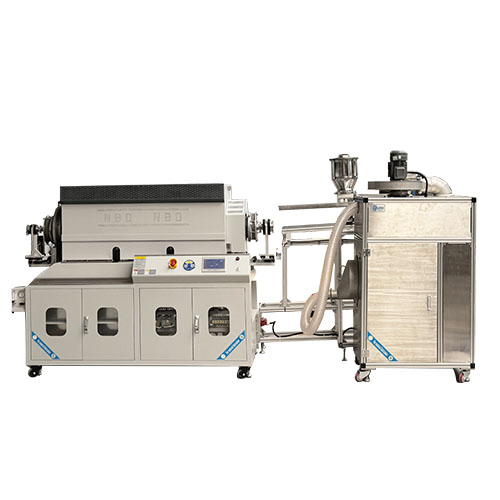

Rotating oxidation high-temperature treatment furnace

Specification Model

NBD-RT1500-200T3F-N

Power supply

Three phase 380V 50HZ

rated power

Total power: 37.1KW Heating power: 36KW

Cyclone separator power: 1.1KW

heating element

silicon molybdenum rod

sensor type

S-type thermocouple with a diameter of 8 * 170mm

Tmax

1500℃

rated temperature

≤1350℃

Recommended heating rate

≤3-5℃/min

temperature control accuracy

±1℃

Heating temperature zone size

Length 1200 * height 300 * depth 300 (single temperature and three control)

Furnace tube specifications

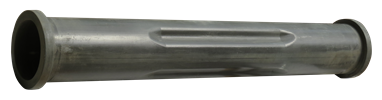

Silicon carbide tube with a diameter of 200 * 2000mm (inner diameter of 180mm, built-in with 3 protruding edges)

Furnace tube speed

1-7rpm

Furnace body oscillation angle

-10°-4°

Feeding method

Automatic feeding: rotary feeding with a screw, manual feeding: long arm half tube feeding

Capacity of the feeding tank

15L (loading ≤ 10L)

Receiving method

Suction type cyclone separation for material collection

Receiving tank

15L aluminum drum

Flow meter specifications

One way float flowmeter: 3-30L/min

gas source

Double bottle gas cabinet (1 in use and 1 backup) single pressure reducing gas supply system

Equipment air inlet

Φ 6.35mm double card sleeve joint

Equipment exhaust port

12mm pagoda head

Filter specifications

Φ 95*Φ 85*2mm (20 mesh, can be replaced as needed)

Furnace body size

Overall dimensions: length 4300 * height 1925 * depth 1520mm

Heating equipment: length 2460 * height 1675 * depth 1160mm

Feeding device: length 2060 * height 1860 * depth 700mm

Cyclone separation device: length 940 * height 1925 * depth 720mm (with suction hood length 1350mm)

Furnace weight

Total weight: approximately 1170KG Heating equipment: approximately 950KG

Feeding device: about 70KG Cyclone separation device: about 150KG

control system

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;

2. Pre order sintering is available to achieve unmanned sintering process curve sintering;

3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;

4. Capable of remote control and real-time observation of equipment status;

5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

sintering reservation

Optimize equipment utilization, ensure sintering process stability, save waiting time, and achieve efficient and orderly sample preparation.

Experimental data storage

Ensure data security, integrity, standardized management, and efficient retrieval.

Nonlinear temperature correction

By using algorithms to nonlinearly correct the temperature deviation between the control point and the sample due to their different positions in the temperature field, the consistency between the control temperature and the sample temperature is improved, the operation is simplified, and the accuracy of experimental data is enhanced.

Multiple sets of process programs can be preset

Multiple sets of experimental exclusive temperature programs can be pre-set to ensure experimental repeatability and ease of operation, support process optimization and data tracing, adapt to team collaboration and technical inheritance, greatly improving experimental efficiency and design flexibility.

remote control

You can log in to the control system anytime and anywhere through computers, mobile phones, and other terminals to view the operating status of the heating furnace (temperature, pressure, heating rate, etc.), and remotely adjust parameters and start/pause programs according to experimental needs. No need to travel back and forth to the laboratory at night or on holidays to meet the parameter tuning needs during the experimental process; Real time monitoring of key experimental processes can also be achieved during cross regional business trips, significantly reducing ineffective commuting time and allowing researchers to allocate work energy more efficiently.

Pressure measurement and monitoring

Mechanical pressure gauges are used, and the gauge housing is of an airtight structure, which can effectively protect the internal components from environmental influences and debris intrusion. At the same time, it has strong corrosion resistance and high temperature resistance.

gas supply system

Equipment usage precautions

When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure;

When used under vacuum, it is recommended that the equipment should not exceed a temperature of 800 ℃. If you have a higher temperature requirement, please contact us for consultation;

Before using this device, please carefully read the precautions for using corundum products;

Service Support

1-year warranty with lifetime support (warranty does not include consumable parts such as furnace tubes and seals).
