Device Name

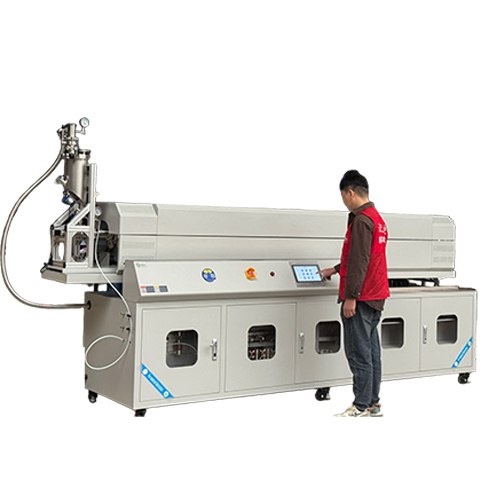

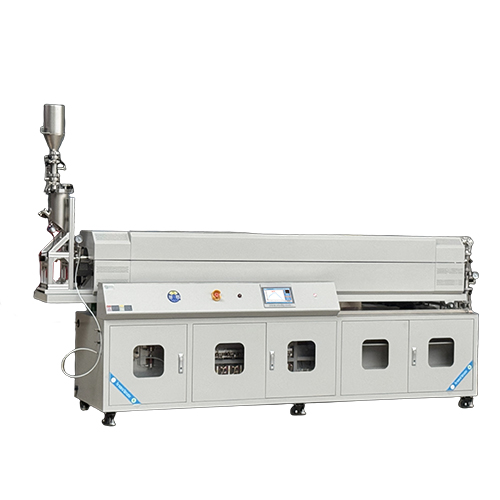

Five temperature zone automatic feeding and discharging rotary tube furnace

Specification Model

OP-1200-T5-R-BZ（5L）

power supply

AC 380V 50HZ

rated power

40KW

heating element

Alloy resistance wire

Number of temperature zones

Single temperature five control

Temperature zone size

Φ200*2000（5 400 temperature zones）mm

temperature control accuracy

±1℃

sensor type

K-type armored thermocouple with a diameter of 3 * 250+40

Tmax

1200℃

rated temperature

1150℃

Recommended heating rate

≤10℃/min

Rotating tilting mechanism

Rotation speed: adjustable from 0-20rpm

Swing angle: -3.5~25 °

Automatic feeding and unloading mechanism

Stainless steel feeding tank capacity: 5L

不锈钢收料罐容积：5L

Stainless steel transfer material tank capacity: 5L (4 pieces)

Spiral feeding rod speed: 0.1-20rpm

Feeding speed: about 3-200ml/min (dry powder)

Maximum feeding particle size: ＜ φ 0.1mm

float flow meter

Route 2: 0.3-3L/min Route 1: 0.5-8L/min

air intake

Φ 6.35mm double card sleeve

air vent

Φ 16mm Pagoda Head

vacuum port

KF25

vacuum pump

DRV16 KF25 connector

furnace body dimensions

Length 3840 * Height 2635 * Depth 1000mm

weight

About 785KG

cooling system

The cooling water circuit is equipped with a safety flow interlock sensor, low flow and over temperature warning functions, inlet/outlet pipelines and manual valves (for isolation and flow regulation), and a 20P water cooling device.

control system

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;

2. Pre order sintering is available to achieve unmanned sintering process curve sintering;

3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;

4. Capable of remote control and real-time observation of equipment status;

5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

Appointment sintering

Optimize equipment utilization, ensure sintering process stability, save waiting time, and achieve efficient and orderly sample preparation.

Experimental data storage

Ensure data security, integrity, standardized management, and efficient retrieval.

Nonlinear temperature correction

By using algorithms to nonlinearly correct the temperature deviation between the control point and the sample due to their different positions in the temperature field, the consistency between the control temperature and the sample temperature is improved, the operation is simplified, and the accuracy of experimental data is enhanced.

Multiple sets of process programs can be preset

Multiple sets of experimental exclusive temperature programs can be pre-set to ensure experimental repeatability and ease of operation, support process optimization and data tracing, adapt to team collaboration and technical inheritance, greatly improving experimental efficiency and design flexibility.

remote control

You can log in to the control system anytime and anywhere through computers, mobile phones, and other terminals to view the operating status of the heating furnace (temperature, pressure, heating rate, etc.), and remotely adjust parameters and start/pause programs according to experimental needs. No need to travel back and forth to the laboratory at night or on holidays to meet the parameter tuning needs during the experimental process; Real time monitoring of key experimental processes can also be achieved during cross regional business trips, significantly reducing ineffective commuting time and allowing researchers to allocate work energy more efficiently.

Pressure measurement and monitoring

Mechanical pressure gauges are used, and the gauge housing is of an airtight structure, which can effectively protect the internal components from environmental influences and debris intrusion. At the same time, it has strong corrosion resistance and high temperature resistance.

Equipment usage precautions

When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure;

When used under vacuum, it is recommended that the equipment should not exceed a temperature of 800 ℃. If you have a higher temperature requirement, please contact us for consultation;

Before using this device, please carefully read the precautions for using corundum products;

Service Support

1-year warranty with lifetime support (warranty does not include consumable parts such as furnace tubes and seals).
