| Equipment features:
One click automatic opening and closing flange:
Operation Revolution: By clicking a button on the system, the furnace flange cover can be instructed to automatically open or close.
Effortless and efficient: It completely replaces the heavy labor of manually tightening dozens of bolts, greatly improving the convenience and efficiency of operation, especially suitable for production or experimental environments with frequent start stop.
Excellent sealing and safety:
Uniform sealing force: Automated systems (usually electric locking mechanisms or hydraulic/pneumatic systems) can apply constant and uniform force to multiple locking points on the flange, avoiding local leakage caused by uneven force and improper sequence during manual operation.
High vacuum guarantee: Uniform and reliable sealing is the foundation for achieving and maintaining high vacuum levels (up to 10 ⁻³~10 ⁻⁵ Pa), ensuring the purity of the process environment and preventing material oxidation.
Full process automation and unmanned operation:
Seamless integration: The automatic opening and closing function is deeply linked with programmed temperature control (multi-stage temperature rise and fall), fully automatic vacuum system (vacuum pumping, leak detection), and atmosphere control system (inflation and deflation, gas switching).
Complete process chain: achieve fully closed-loop automated operation of "sample loading → automatic door closing → vacuum pumping → (optional) protective gas filling → programmed heating → insulation → programmed cooling → cooling → automatic door opening → sampling".
Unmanned operation: The entire process does not require manual intervention and can run continuously for 24 hours, significantly improving equipment utilization and production efficiency.
Intelligence and Scalability:
Data recording: Automatically record the entire process data such as temperature, pressure, time, and operation logs for easy traceability and analysis.
Remote monitoring: Supports network connection to achieve remote status monitoring and operation.
Seamless integration with automated production lines: It can perfectly match robotic arms or automatic transmission lines, serving as the core unit of smart factories or unmanned laboratories, achieving complete automation of loading and unloading, greatly improving process consistency and product yield. |

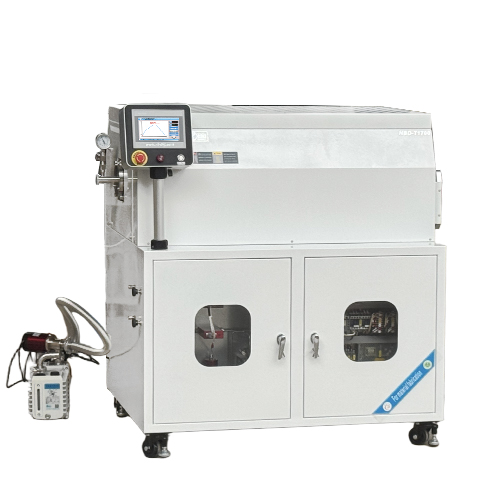

Device Name | Automated high-temperature vacuum sintering furnace |
Specification Model | NBD-T1700-100T2D2Z-110（Z） |
power supply | AC380V 50HZ |
rated power | 7KW |
temperature control accuracy | ±1℃ |
heating element | Silicon molybdenum rod |
sensor type | Temperature control: B-type thermocouple with a diameter of 8 * 150mm
Temperature measurement: B-type thermocouple with a diameter of 8 * 600mm |
Tax | 1700℃ |
Long term working temperature | 1650℃ |
Recommended heating rate | ≤10℃/min |
Number of temperature zones | Single temperature dual control |
Size of furnace temperature zone | Length 480 * Height 140 * Depth 160mm |
Furnace tube material and size | Corundum tube with a diameter of 80 * 1200mm
Slanted alumina tube with a diameter of 50 * 810mm |
Sample crucible size | Corundum crucible: 5ml (diameter 22 * 25), quantity 10 |
Two way mass flow controller | S500 500SCCM with a diameter of 6.35, double card sleeve, 2-meter short wire, fluorine rubber seal, nitrogen calibration
S500 1000SCCM with a diameter of 6.35, double card sleeve, 2-meter short wire, fluorine rubber seal, nitrogen calibration |
mobile itinerary | 800mm |
Furnace body size | Length 1600 (right push rod fully open, length 2365) * Height 1350 * Depth 890mm |
control system |
| 1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;
2. Pre order sintering is available to achieve unmanned sintering process curve sintering;
3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;
4. Capable of remote control and real-time observation of equipment status;
5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process. |
Appointment sintering
|  | Optimize equipment utilization, ensure sintering process stability, save waiting time, and achieve efficient and orderly sample preparation. |
Nonlinear temperature correction
|  | By using algorithms to nonlinearly correct the temperature deviation between the control point and the sample due to their different positions in the temperature field, the consistency between the control temperature and the sample temperature is improved, the operation is simplified, and the accuracy of experimental data is enhanced. |
remote control
|  | You can log in to the control system anytime and anywhere through computers, mobile phones, and other terminals to view the operating status of the heating furnace (temperature, pressure, heating rate, etc.), and remotely adjust parameters and start/pause programs according to experimental needs. No need to travel back and forth to the laboratory at night or on holidays to meet the parameter tuning needs during the experimental process; Real time monitoring of key experimental processes can also be achieved during cross regional business trips, significantly reducing ineffective commuting time and allowing researchers to allocate work energy more efficiently. |
data storage |  | Ensure data security, integrity, standardized management, and efficient retrieval |
Multiple sets of exclusive process programs can be pre-set
|  | Multiple types of experiment specific temperature programs can be preset to ensure experimental repeatability and ease of operation, support process optimization and data tracing, adapt to team collaboration and technical inheritance, greatly improving experimental efficiency and design flexibility. |
Match with robotic arm or automatic transmission line | | Full process automation and unmanned operation:
Seamless integration: The automatic opening and closing function is deeply linked with programmed temperature control (multi-stage temperature rise and fall), fully automatic vacuum system (vacuum pumping, leak detection), and atmosphere control system (inflation and deflation, gas switching).
Complete process chain: achieve fully closed-loop automated operation of "sample loading → automatic door closing → vacuum pumping → (optional) protective gas filling → programmed heating → insulation → programmed cooling → cooling → automatic door opening → sampling".
Unmanned operation: The entire process does not require manual intervention and can run continuously for 24 hours, significantly improving equipment utilization and production efficiency. |
temperature accuracy | +/- 1℃ |
Net weight | 约420KG |
Equipment usage precautions | When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure;
When used under vacuum, it is recommended that the equipment should not exceed a temperature of 800 ℃. If you have a higher temperature requirement, please contact us for consultation;
Before using this device, please carefully read the precautions for using corundum products; |
Service Support | One year limited warranty with lifetime support (warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below). |
