The universal testing machine is equipped with a heating furnace, which is an external high-temperature environment simulation device designed specifically for the Universal Testing Machine (UTM). Its core function is to provide a controllable high-temperature environment for the specimen, enabling the universal testing machine to perform mechanical property tests such as tensile, compressive, and bending on materials under high-temperature conditions, thereby obtaining key mechanical parameters...
| This device is a customized heating system for universal testing machines, which uses high-purity silicon carbon rods as heating elements, | |
Device Name | Open type heating furnace for 1400 ℃ universal testing machine | |
Electrical specifications | 220V 50HZ 1KW | |
heating power | 0.9KW | |

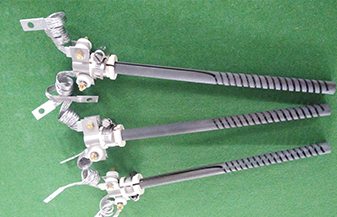

heating element | High purity double helix silicon carbon rod | |
sensor type | S-type thermocouple with a diameter of 4 * 85mm | |
Tmax | 1400℃ | |
Recommended heating rate | ≤10℃/min | |
Reaction chamber material | 800 ℃ polycrystalline fiber | |
Reaction chamber size | Length 112 * Height 28 * Depth 100mm | |
Dimensions of the upper and lower openings in the furnace | φ35mm | |
Front opening size | 8*28mm | |
Furnace body size | Length 184 * Height 65 * Depth 267mm (excluding bracket) | |
control system |
| 1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set; |
| Appointment sintering |  | Optimize equipment utilization, ensure sintering process stability, save waiting time, and achieve efficient and orderly sample preparation. |
| Nonlinear temperature correction |  | By using algorithms to nonlinearly correct the temperature deviation between the control point and the sample due to their different positions in the temperature field, the consistency between the control temperature and the sample temperature is improved, the operation is simplified, and the accuracy of experimental data is enhanced. |
| remote control |  | You can log in to the control system anytime and anywhere through computers, mobile phones, and other terminals to view the operating status of the heating furnace (temperature, pressure, heating rate, etc.), and remotely adjust parameters and start/pause programs according to experimental needs. No need to travel back and forth to the laboratory at night or on holidays to meet the parameter tuning needs during the experimental process; Real time monitoring of key experimental processes can also be achieved during cross regional business trips, significantly reducing ineffective commuting time and allowing researchers to allocate work energy more efficiently. |
| data storage |  | Ensure data security, integrity, standardized management, and efficient retrieval |
| Multiple sets of exclusive process programs can be pre-set |  | Multiple types of experiment specific temperature programs can be preset to ensure experimental repeatability and ease of operation, support process optimization and data tracing, adapt to team collaboration and technical inheritance, greatly improving experimental efficiency and design flexibility. |
temperature accuracy | +/- 1℃ | |
heating element |
| High purity double helix silicon carbon rod |
Net weight | About 14KG | |
Equipment usage precautions | 1.When the furnace temperature of the equipment is ≥ 300 ℃, it is forbidden to open the furnace to avoid injury; 2. Minor cracks caused by continuous use of the furnace are a normal phenomenon and do not affect the normal use of the equipment; | |
Service Support | One year limited warranty, providing lifetime support (the warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below) | |
