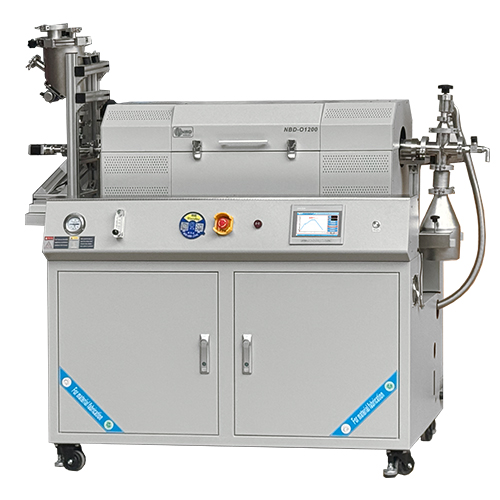

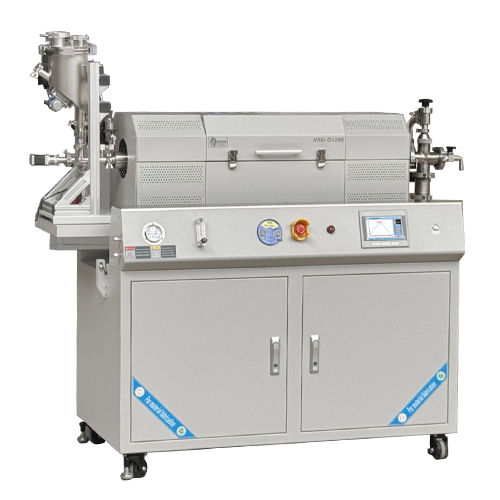

1200 ℃ Rotating Swing CVD Coating Heating Furnace

Add Time： 2025-07-22 View：657

The 1200 ℃ rotating pendulum automatic feeding and discharging CVD (chemical vapor deposition) coating heating furnace is a highly integrated advanced equipment designed specifically for high-quality material surface coating under strictly controlled conditions. This device not only has high-temperature processing capabilities, but also combines rotation, oscillation, and automatic feeding and discharging functions to ensure uniform and efficient coating, making it suitable for multiple fields s...

Product Details

Application Field

Product Video

Application Cases

	main features 1. Temperature control High temperature stability: able to maintain a stable high temperature environment of 1200 ℃, suitable for CVD processes of various materials. PID intelligent temperature control system: provides high-precision temperature control, with a typical temperature fluctuation range of ± 1 ℃. It supports multiple program heating curve settings and adapts to complex process requirements. 2. Rotation and oscillation functions Rotating motion: The sample stage or reaction chamber can rotate around the central axis to ensure uniform gas distribution and promote consistency in coating thickness. Shaking vibration: In addition to rotation, it is also equipped with a shaking device to slightly vibrate the sample in three-dimensional space, further improving the uniformity and density of the coating. 3. Automatic feeding and unloading system Automated operation: equipped with an automatic feeding and discharging system to achieve continuous feeding and discharging of materials, reduce manual intervention, and improve production efficiency. Safe and reliable: The automatic feeding and unloading system adopts advanced mechanical arm or conveyor belt technology to ensure the safety and reliability of operation. Flexibility: It can be adjusted according to the size and shape of different batches of samples to meet diverse experimental needs. 4. Atmosphere control Multiple atmosphere options: Supports various atmosphere conditions such as vacuum, inert gases (such as nitrogen and argon), reducing gases (such as hydrogen), etc., to meet the CVD needs of different materials. Optional precise flow control: By using a mass flow controller (MFC), the flow rate of the reaction gas can be precisely adjusted to ensure optimal conditions for the chemical reaction. 5. Intelligent control system Touch screen interface: an intuitive and user-friendly interface that facilitates users to input parameters, initiate testing, and view results. Data recording and analysis: Real time monitoring system, convenient for users to track the production process, and automatically record key parameters for subsequent data analysis and quality control. Remote monitoring and management: It supports remote connection and can monitor and manage equipment through the Internet to improve work efficiency. 6. Safety protection measures Over temperature protection device: When abnormal high temperature is detected, the system will automatically alarm and cut off the power supply to prevent equipment damage. Emergency stop button: Ensure the safety of the operator.
Equipment name	1200 ℃ Rotating Swing CVD Coating Heating Furnace
Specification and model	NBD-RT1200-100T2DF2LN
power supply	AC380V 50HZ
rated power	4.5KW
Number of temperature zones	Single temperature dual control
precision	±1℃
heating element	Alloy resistance wire
sensor type	K-type thermocouple with a diameter of 2 * 420mm
Tmax	1200℃
Long term working temperature	1100℃
heating rate	1℃/H-20℃/Min
Size of furnace temperature zone	Φ150*440（220+220）mm
Tilt angle of furnace body	-5-20°
Furnace tube specifications	6031000 middle 1003355/380, with 3 internal 203340 scraper blades
Furnace tube rotation speed	1-10rpm
feeding speed	1-25ml/min (powder material)
Maximum feeding particle size	＜φ0.1mm
Capacity of inlet and outlet tanks	2L
rotameter	0.1-0.8L/min
Furnace body size	Length 1763 * Height 1683 * Depth 795mm
Furnace weight	约272KG
control system		1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set; 2. Pre order sintering is available to achieve unmanned sintering process curve sintering; 3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording; 4. Capable of remote control and real-time observation of equipment status; 5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.
Appointment sintering		Optimize equipment utilization, ensure sintering process stability, save waiting time, and achieve efficient and orderly sample preparation.
Nonlinear temperature correction		By using algorithms to nonlinearly correct the temperature deviation between the control point and the sample due to their different positions in the temperature field, the consistency between the control temperature and the sample temperature is improved, the operation is simplified, and the accuracy of experimental data is enhanced
remote control		You can log in to the control system anytime and anywhere through computers, mobile phones, and other terminals to view the operating status of the heating furnace (temperature, pressure, heating rate, etc.), and remotely adjust parameters and start/pause programs according to experimental needs. No need to travel back and forth to the laboratory at night or on holidays to meet the parameter tuning needs during the experimental process; Real time monitoring of key experimental processes can also be achieved during cross regional business trips, significantly reducing ineffective commuting time and allowing researchers to allocate work energy more efficiently.
data storage		Ensure data security, integrity, standardized management, and efficient retrieval
Multiple sets of exclusive process programs can be pre-set		Multiple types of experiment specific temperature programs can be preset to ensure experimental repeatability and ease of operation, support process optimization and data tracing, adapt to team collaboration and technical inheritance, greatly improving experimental efficiency and design flexibility.

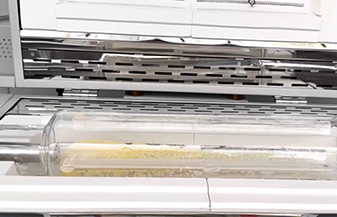

Furnace details		Variable diameter quartz tube with lifting plate
Weak pressure measurement and monitoring Corrosive gas preheater (Optional)		The whole body is made of 316L material, which can be preheated for various gases and corrosive gases to meet special process requirements, with a maximum temperature of 600 ℃.
heating element		Alloy resistance wire
Pressure measurement and monitoring		Adopting a mechanical pressure gauge, the gauge housing is of an airtight structure, which can effectively protect the internal components from environmental influences and debris intrusion, while also having strong corrosion and high temperature resistance capabilities
Gas supply system		The gas flow rate is controlled by a float flowmeter, which is integrated with the equipment and has undergone leak testing before leaving the factory.
Service and Support	One year limited warranty with lifetime support (warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below).
