Equipment name

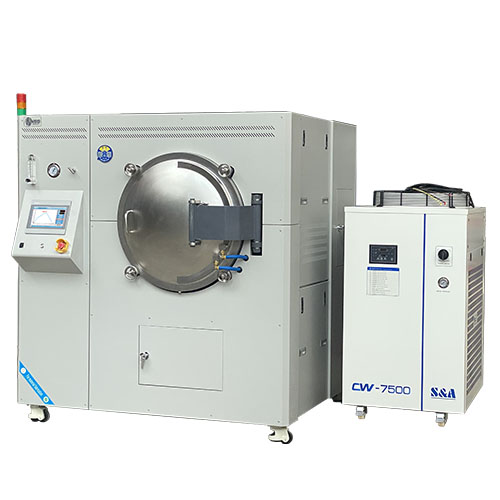

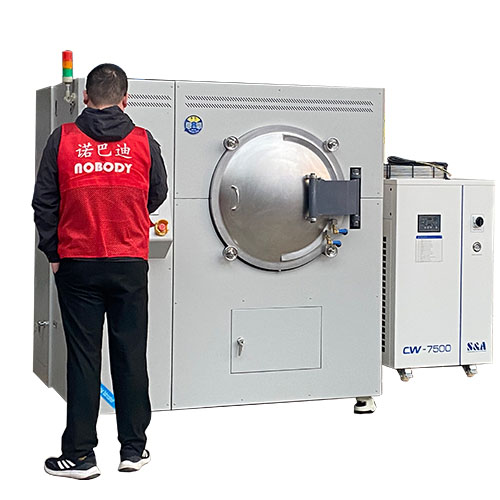

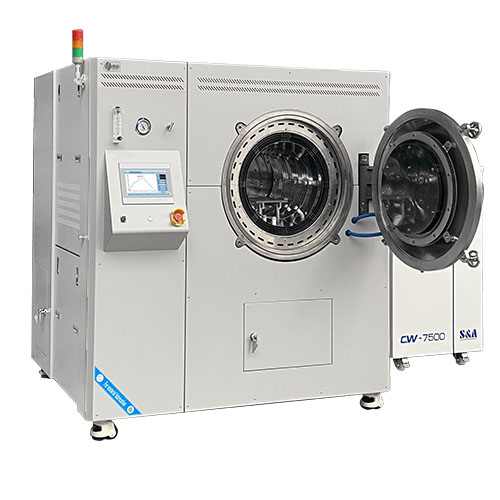

vacuum braze furnace

Specification and model

VAH1600-200TIFGY（200*200*300）

power supply

Three phase 380V 50HZ

rated power

45KW

Number of temperature zones

Single temperature and single control

sensor type

S-type thermocouple with a diameter of 8 * 300mm

rotameter

20-200L/min

Tmax

1300 ℃ (1200 ℃ at room temperature)

Furnace material

304不锈钢板+钼板

Furnace size

Φ392*410mm

Effective working size

Length 200 * Height 200 * Depth 300mm

Recommended heating rate

≤10℃/min

vacuum pump

BSV90 KF40 interface (maximum vacuum 4Pa)

molecular pump

Inlet CF200, outlet KF40 (ultimate vacuum 5 * 10 ^ ^-6Pa)

Ultimate vacuum of the whole machine

6.7*10^^-3Pa（Empty furnace, cold state）

Furnace body size

Length 1835 * Height 2040 * Depth 1625mm

Water cooling machine size

Length 706 * Height 1235 * Depth 1035mm

control system

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;

2. Pre order sintering is available to achieve unmanned sintering process curve sintering;

3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;
4. Capable of remote control and real-time observation of equipment status;

5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

Appointment sintering

Multiple sets of exclusive process programs can be pre-set

Temperature Accuracy

±1℃

heating element

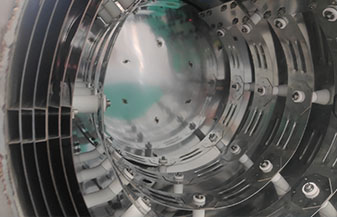

Molybdenum strip heating furnace

Pressure measurement and monitoring

Mechanical pressure gauges are used, and the gauge housing is of an airtight structure, which can effectively protect the internal components from environmental influences and debris intrusion. At the same time, it has strong corrosion resistance and high temperature resistance.

Gas supply system

The gas flow rate is controlled by a float flowmeter, which is integrated with the equipment and has undergone leak testing before leaving the factory.

net weight

About1215KG

Equipment usage precautions

When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure;
When used under vacuum, the operating temperature of the equipment should not exceed 800 ℃.

Service Support

One year limited warranty with lifetime support (warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below).
