Equipment features:  1. High purity process space;  2. Equipped with a closed sample loading fixture, it can achieve smooth control of high vacuum state during powder material sintering;  3. Design an open sample loading platform to match sintering experiments with various forms of samples;  4. Scientific and reasonable design can easily achieve high vacuum, ultra-high temperature, and low radiation of external heat.
model	NBD-G2700-80TIGF
Electrical specifications	Three phase 380V/50HZ
Heating system
Common working temperature	2650℃
Common working temperature	20KW
Furnace body size	L1000*H1270*W650mm
Main control heating rate	≤5℃/min
Heating chamber size	120*60*60mm

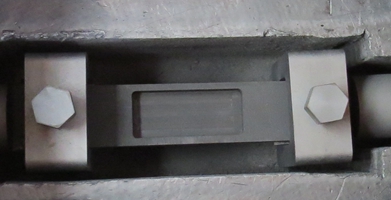

Effective volume (size) of graphite crucible	7.7ml（50*22*7mm）
Heating and sample loading area
Real time display of ultra-high temperature
Appointment sintering		Optimize equipment utilization, ensure sintering process stability, save waiting time, and achieve efficient and orderly sample preparation.
Nonlinear temperature correction		By using algorithms to nonlinearly correct the temperature deviation between the control point and the sample due to their different positions in the temperature field, the consistency between the control temperature and the sample temperature is improved, the operation is simplified, and the accuracy of experimental data is enhanced.
remote control		You can log in to the control system anytime and anywhere through computers, mobile phones, and other terminals to view the operating status of the heating furnace (temperature, pressure, heating rate, etc.), and remotely adjust parameters and start/pause programs according to experimental needs. No need to travel back and forth to the laboratory at night or on holidays to meet the parameter tuning needs during the experimental process; Real time monitoring of key experimental processes can also be achieved during cross regional business trips, significantly reducing ineffective commuting time and allowing researchers to allocate work energy more efficiently.
data storage		Ensure data security, integrity, standardized management, and efficient retrieval
Multiple sets of exclusive process programs can be pre-set		Multiple types of experiment specific temperature programs can be preset to ensure experimental repeatability and ease of operation, support process optimization and data tracing, adapt to team collaboration and technical inheritance, greatly improving experimental efficiency and design flexibility
Temperature measuring element	Dual color infrared thermometer resolution 0.1 ℃, repeatability ± 2 ℃, protection level IP65
precision	±1℃
Main control insulation material	Pressing high-purity graphite hard felt
Structural operation mode	Upper opening heating with overall sealing, double-layer water-cooled furnace body and upper cover
control system
Control mode		1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set; 2. Pre order sintering is available to achieve unmanned sintering process curve sintering; 3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording; 4. Capable of remote control and real-time observation of equipment status; 5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.
Temperature curve setting	Temperature curve setting
Temperature curve setting	The difference between the temperature controlled by the main controller and the temperature of the sample is corrected nonlinearly throughout the system (inquire with customers about commonly used temperature points for special validation)

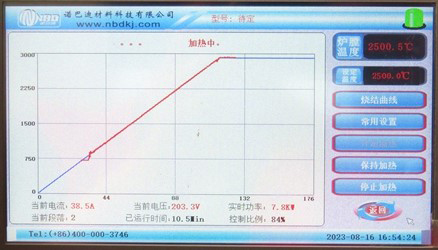

data record	Real time monitoring, dynamic and realistic display of "time temperature curve"
system protection	Overtemperature alarm, overcurrent protection, disconnection prompt
Gas supply system
Flow meter type	2-channel float flowmeter (mass flow controller can be selected according to experimental needs)
Gas pipeline core	Special stainless steel gas pipeline (1/4 ")
Type of regulating valve	Type of regulating valve
Normal condition of pipeline	normally closed
measurement accuracy	±1.0%F.S
Linearity	±0.5%F.S
repeatability	±0.2%F.S
Pressure Range	-0.1-0.15 MPa
response time	2S
Accuracy guarantee temperature	(15～35℃)
vacuum system
High vacuum system
mechanical vacuum pump	Directly connected rotary vane vacuum pump (two-stage rotary vane)
Pumping speed	(10(L/s)
Inlet and exhaust connection port	KF16/25（mm）
Oil consumption	0.6～1L
motor speed	1440（rpm）
Ambient Temperature	5～40℃
Noise (dB)	≤56
molecular pump	FJ-110molecular pump
pumping speed	100(L/s)
rated speed	4300 revolutions per minute
Cooling method	Air cooling/water cooling
other
Vacuum gauge type	Simulated vacuum gauge
Overall ultimate vacuum of the system	4.3×10-3Pa
Service Support	One year limited warranty with lifetime support (warranty does not include consumable parts)

Disclaimer: The product introduction content on this website (including product images, product descriptions, technical parameters, etc.) is for reference only. Due to delayed updates, there may be some discrepancies between the content and the actual situation. Please contact our customer service personnel for confirmation. The information provided on this website does not constitute any offer or commitment. Nuobadi Company may periodically improve and modify any information on the website without prior notice.

1. High temperature treatment of carbon materials (core application)

High temperature annealing and purification of graphene, carbon nanotubes and carbon gas gel

High temperature graphitization of carbon fiber, carbon felt, and graphite electrodes

C/C composite materials, high-temperature densification of pyrolytic carbon, heat treatment

Removal, purification, and high-temperature shaping of graphite products

2. Powder metallurgy and hard alloys

Hard alloy (tungsten steel) vacuum sintering, low-pressure sintering

Sintering of refractory metals such as tungsten, molybdenum, tantalum, niobium, etc

High entropy alloys and intermetallic compounds sintered at high temperatures

Diamond tools, diamond composite brazing and heat treatment

3. Ceramics and advanced structural materials

Sintering of non oxide ceramics such as silicon carbide (SiC), silicon nitride (Si ∝ N ₄), zirconium boride (ZrB ₂), etc

High temperature heat treatment of ceramic matrix composites (CMC)

Pressure free sintering of high-purity ceramics such as zirconia and alumina

4. Semiconductor and Electronic Packaging Materials

High temperature annealing and defect repair of SiC and GaN substrates

Processing of graphite boats, graphite fixtures, and graphite heaters

Electronic ceramics, LTCC/HTCC high-temperature sintering

Bonding materials, metal packaging shell heat treatment

5. Rare earth permanent magnets and magnetic materials

Vacuum sintering and aging treatment of neodymium iron boron permanent magnets

High temperature sintering of samarium cobalt magnets and ferrites

Grain control and performance optimization of magnetic materials

6. Sapphire, Crystals, and Optical Materials

Sapphire crystal growth, annealing, and stress relief

High temperature heat treatment of laser crystals, scintillators, and oxide crystals

Degassing and annealing of quartz glass and optical glass

7. Vacuum heat treatment of metals and alloys

High temperature alloys, titanium alloys, nickel based alloys vacuum annealing, solid solution, aging

Mold steel, high-speed steel vacuum quenching, tempering

Metal degassing, dehydrogenation, purification, and anti oxidation heat treatment

8. New energy and functional materials

Lithium battery negative electrode material (natural/artificial graphite) high-temperature graphitization

High temperature sintering of solid electrolytes and new positive electrode materials

High temperature treatment of hydrogen storage materials and superconducting materials

9. Research institutes and new material research and development

High temperature physical property testing and thermal stability evaluation

Small and medium scale testing of new ultra-high temperature materials

Preparation of high-purity materials and non oxidative synthesis experiments
