Electrical specifications

NBD-O1200-50TIR

Electrical specifications

AC220V    1.0KW

Reachable temperature

1200 ℃ （<1 hour）

rated temperature

1150℃

Long term use temperature range

300~1150℃

heating rate

1℃/H-20℃/Min

Furnace tube diameter

50mm

Furnace body size

350×390×350mm

Temperature field distribution

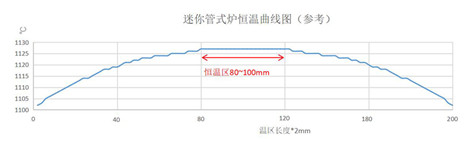

As shown in the figure: This is the temperature zone curve of the device (constant temperature zone size: 100mm)

Temperature Accuracy

±1℃

heating element

Mo doped Fe Cr Al alloy

control system

1. 15 temperature curves can be pre stored to avoid the trouble caused by repeated

settings of different experimental processes;

2. The experimental process is more intuitive and the operation is more convenient;

3. The NBD-101E embedded operating system has a graphical interface for exchanging

Chinese and English,7-inch true color touch screen input, intelligent human-machine

dialogue mode, non-linear style temperature correction;

4. It has functions such as over temperature alarm, disconnection prompt, and leakage protection.

SEALING SYSTEM

Vacuum degree: 10Pa (mechanical pump)

Pressure measurement and monitoring

Mechanical pressure gauges are used, and the gauge housing is of an airtight structure, which can

effectively protect the internal components from environmental influences and debris intrusion.

At the same time, it has strong corrosion resistance and high temperature resistance.

Appointment sintering

onlinear temperature correction

net weight

30kg

Equipment usage precautions

1. When the furnace temperature of the equipment is ≥ 300 ℃, it is forbidden to open the furnace to avoid injury;

2. When using the equipment, the pressure inside the furnace tube should not exceed 0.125MPa (absolute pressure)

to prevent equipment damage caused by excessive pressure;

3. When used under vacuum, the operating temperature of the equipment shall not exceed 800 ℃;

4. The internal pressure of the gas supply cylinder is relatively high. When introducing gas into the furnace tube,

a pressure reducing valve must be installed on the cylinder. It is recommended to purchase a small pressure reducing valve

for testing, with a range of 0.01MPa-0.15MPa, which will be more precise and safe to use;

5. When the temperature of the furnace body is higher than 1000 ℃, the furnace tube cannot be in a vacuum state.

The pressure inside the furnace tube should be equivalent to atmospheric pressure and maintained at atmospheric pressure;

6. The long-term use temperature of high-purity quartz tube is ≤ 1100 ℃;

7. It is not recommended to close the exhaust and intake valves at the flange end of the furnace tube during heating

experiments. If it is necessary to close the gas valve to heat the sample, it is necessary to constantly monitor the

reading on the pressure gauge. If the absolute pressure gauge reading is greater than 0.15 MPa, the exhaust valve

must be immediately opened to prevent accidents (such as furnace tube rupture, flange flying out, etc.).

Service Support

One year limited warranty with lifetime support (warranty does not include consumable parts such as processing tubes

and O-rings, please order replacement parts at the relevant product below).
