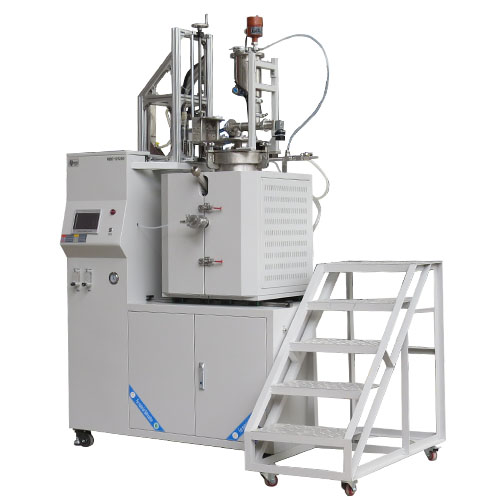

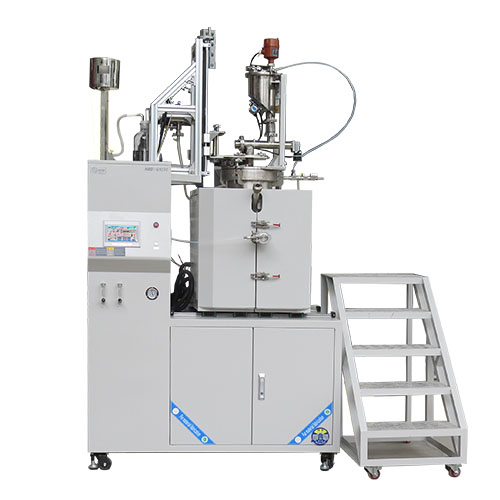

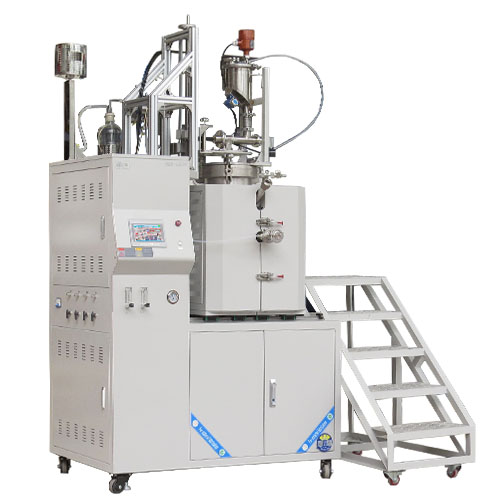

Vertical homogenization melting furnace

Add Time： 2025-02-06 View：733

Equipment Introduction:This equipment is equipped with an automatic feeding system, where materials are melted in a vacuum, inert gas protection, or reactive gas environment. The sealed rotating hoisting mechanism completes the automatic feeding, melting, chemical reaction, homogenization, and other processes of the materials under the coordination of pulse gas. At the same time, the high-purity quartz observation window can observe the material status in real time. The 7-inch full touch screen ...

Product Details

Application Field

Product Video

Application Cases

	Equipment features: 1. The collection device is equipped with a double-layer water cooling system, which can greatly improve the cooling and collection efficiency of materials; 2. The control system adopts advanced PLC+touch screen control system, which makes the operation simpler and more convenient. The control mathematical model adopts advanced PID self-learning fuzzy control to maintain the temperature control accuracy at ± 1 ℃; 3. The furnace body adopts a double-layer air-cooled structure technology, which helps to reduce the surface temperature of the shell; 4. High purity Al2O3 fiber refractory insulation material has superior insulation effect and effectively reduces equipment power consumption; 5. The heating elements are distributed in a circular shape inside the furnace, surrounding the furnace tube 360 degrees to improve the temperature uniformity inside the furnace.
Product model	NBD-G1200-26TI2F-350
Electrical specifications	Three phase 380V 50HZ
Maximum operating temperature	1150℃
rated power	12KW
Type of temperature measuring element	K-type thermocouple 420mm
Heating temperature zone size	φ350*420mm
Furnace tube material	310s stainless steel pipe
Effective volume of furnace tube	70L
Mixing motor speed	0~11 revolutions per minute
Cutting motor speed	0~19 revolutions per minute
Furnace body size	Length 1430 x Depth 1060 x Height 2560mm
Recommended heating rate	10℃/min

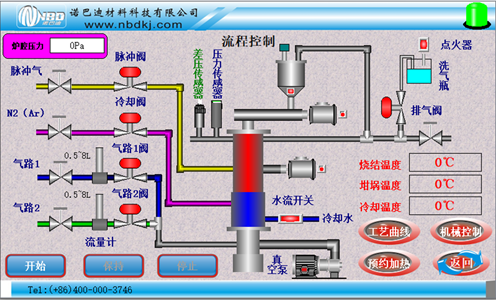

Main control interface
Touch screen control system		1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set; 2. Pre order sintering is available to achieve unmanned sintering process curve sintering; 3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording; 4. Capable of remote control and real-time observation of equipment status; 5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.
pneumatic system
precision	±1 ℃
High definition quartz observation window for working cavity
Pressure Measurement and Monitoring			Using a mechanical pressure gauge with shock-absorbing oil to create damping during pressure fluctuations and reduce pointer oscillation back and forth.

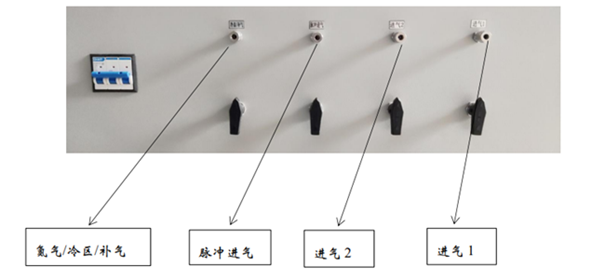

gas supply system			The gas flow rate is controlled by a float flowmeter, which is integrated with the equipment and has undergone leak testing before leaving the factory.
weight	About 650KG
Equipment usage precautions	When using the equipment, the absolute pressure gauge reading should not exceed 0.15MPa to prevent equipment damage caused by excessive pressure; When used under vacuum, the operating temperature of the equipment should not exceed 800 ℃.
Service Support	1-year warranty with lifetime support (warranty does not include consumable parts such as furnace tubes and seals, etc.)）

Disclaimer: The product descriptions on this site (including product images, descriptions, technical specifications, etc.) are for reference only. Due to potential delays in updates, there may be discrepancies between the stated content and actual conditions. Please contact our customer service for confirmation. The information provided does not constitute any offer or commitment. Nobadi reserves the right to modify or improve any information on the website without prior notice.
