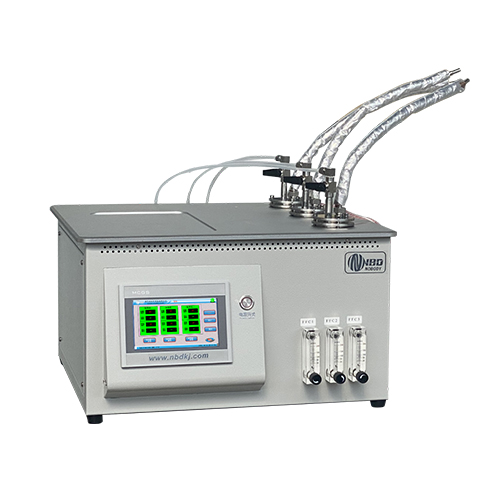

Multi channel liquid gas-phase generator

Add Time： 2024-10-31 View：1091

Equipment Introduction: A multi-channel liquid gas phase generator is a device used to convert liquid into gas phase, capable of processing multiple liquid samples simultaneously. Each channel is independently controlled and suitable for batch sample processing. Widely used in various fields such as chemical analysis, environmental monitoring, pharmaceutical industry, materials science, etc. This device converts liquid samples into stable gas phase output by precisely controlling the evaporation...

Product Details

Application Field

Product Video

Application Cases

	Equipment features: 1. Multi channel design • Independent control: Each channel can independently set temperature, pressure, and flow rate to ensure that each liquid can be converted into gas under optimal conditions. Flexible configuration: Customize different numbers of channels (such as 2, 4, 6, etc.) according to user needs to meet diverse application requirements. Modular structure: adopting modular design, easy to expand and maintain, supporting quick replacement and upgrade of various components. 2. High precision control • Temperature control: Adopting advanced PID temperature control system, supporting multi-stage program control, ensuring high temperature control accuracy and good repeatability. Pressure regulation: Equipped with precision pressure regulation devices, it can monitor and adjust the pressure inside the system in real time to ensure a stable gasification process. Flow control: Use high-quality float flow meters to control the flow of various liquids and ensure the stability of gas output. 3. Easy to operate • Touch screen control interface: equipped with a touch screen control interface, supporting data recording and remote monitoring, easy to operate. User friendly: With a user-friendly interface, it is easy to operate andmaintain. • Preset program: Provides multiple preset work programs to facilitate users in selecting appropriate process parameters based on specific needs.
Equipment name	Liquid gas phase generator
Specification and model	NBD-TS0.1LZ3
power supply	Single phase 220V 50HZ
rated power	4KW
sensor type	K-type thermocouple with a diameter of 1*350mm
Tmax	400℃
Furnace size	φ90*100mm
Furnace body size	L605H500W570mm
control system		1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set; 2. Pre order sintering is available to achieve unmanned sintering process curve sintering; 3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording; 4. Capable of remote control and real-time observation of equipment status; 5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.
Temperature Accuracy	±1℃
heating element		Mo doped Fe Cr Al alloy
Gas supply system		The gas flow rate is controlled by a float flowmeter, which is integrated with the equipment for easy control, and a leak test has been conducted before leaving the factory.
net weight	35KG
Equipment usage precautions	★ Users are not allowed to modify the device without authorization; ★ Do not click on the touch screen with sharp objects to avoid damaging the screen; Under high temperature conditions (≥ 200 ℃), it is forbidden to open the upper furnace, otherwise there is a risk of burns; ★ This product should avoid liquids and oil stains, and cannot be used in liquid media. It can only be used in gas working media. The gas must be clean, dry, and free of particles and moisture. Otherwise, filters, dryers, etc. must be installed in the air circuit.
Service Support	One year limited warranty, providing lifetime support (the warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below)
