Add Time： 2024-07-05 View：421

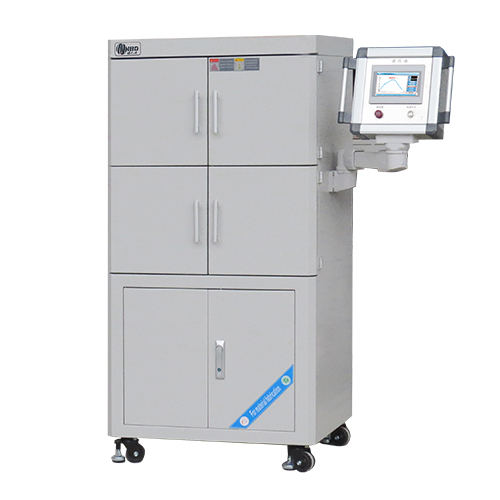

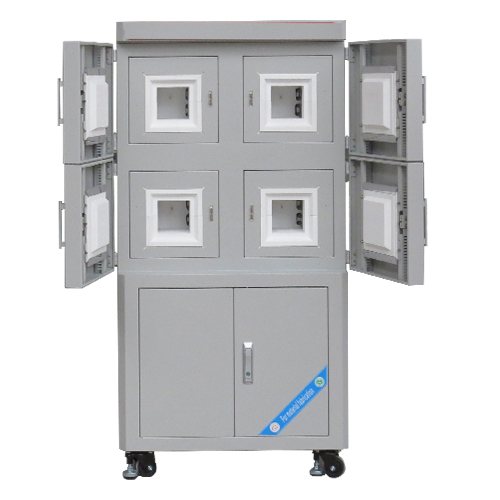

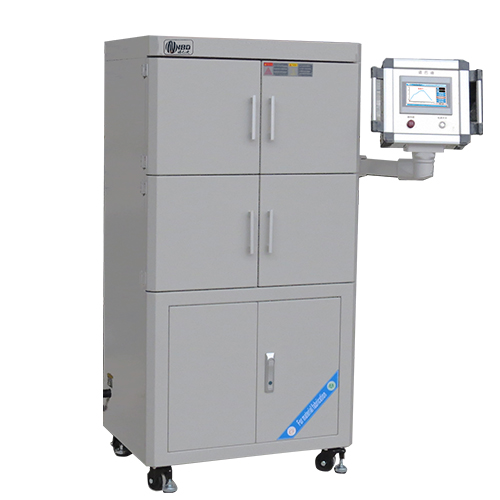

Equipment Overview:This equipment a 1500 ℃ four-channel high-throughput chamber furnace, can be used for heat treatment of multiple samples using high-throughput methods, each heating module is controlled by an independent temperature control system, and can be put 4 samples at the same time to process samples at different temperatures.It is a special equipment developed for colleges and universities, scientific research institutes and industrial and mining enterprises for sintering ﹑ chemical v...
| main features 1. Operating temperature Up to 1500 ° C: High quality refractories such as silicon molybdenum rods or graphite heating elements are used to ensure stable operation in extreme high temperatures. Fast temperature rise and insulation performance: the optimized heating system can realize fast temperature rise and maintain stable high temperature state to meet the requirements of long-time experiment or production. Four-channel design Independent temperature control channel: Each channel is equipped with an independent PID temperature control system, which can set different temperature curves and process parameters respectively to realize true multitasking parallel processing. Large capacity processing: each channel provides sufficient space, suitable for processing a variety of different types of samples, and improves experimental efficiency. Precise temperature control PID intelligent temperature control system: each channel adopts advanced PID controller to ensure the temperature control accuracy reaches ± 1 ° C and meet the process requirements sensitive to temperature. Real-time monitoring: built-in high-precision temperature sensor monitors the temperature change in each channel in real time to ensure the consistency of process conditions. Various atmospheres Vacuum and Atmosphere Protection: Supports operation in vacuum or inert gases (e.g. nitrogen, argon), reducing gases (e.g. hydrogen) to prevent sample oxidation or other chemical reactions. Safety and Maintenance Over-temperature protection: built-in over-temperature protection device can automatically cut off the power supply in case of abnormal temperature rise to prevent equipment damage. Emergency stop button: set obvious emergency stop button to ensure the safety of operators. Regular maintenance reminder: the system can set regular maintenance reminders to help users maintain equipment in time and prolong the service life. Humanistic design Double-layer thermal insulation structure: high-efficiency thermal insulation materials are used for the outer layer to reduce heat loss, reduce shell temperature and guarantee operation safety. Convenient operation interface: touch screen or computer interface, convenient for user to input parameters, start test and view results. | ||
Equipment name | High flux box furnace | ||
Specification and model | NBD-M1500-MGI-4 | ||
Power supply | Three phase 380V/50HZ | ||
Rated power | 10KW | ||
control accuracy | ±1℃ | ||
Type of temperature measuring element | Type S thermocouple 220mm | ||
Tmax | 1450℃ | ||
Recommended heating rate | 5℃/min | ||
Size of heating temperature zone | 120*120*120mm | ||
Furnace body size | Length 850mm (excluding cantilever box)*height 1580mm*depth 600mm | ||
weight | Approximately 280KG | ||
|

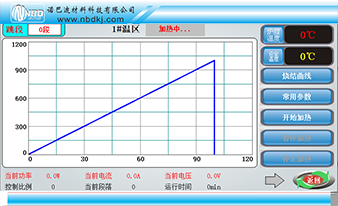

| 1. Sintering process curve setting: the setting curve is displayed dynamically, multiple process curves can be pre-stored for equipment sintering, and each process curve can be set freely; 2. Sintering can be reserved to realize unattended sintering process curve sintering; 3. Display sintering power voltage and other information in real time, record sintering data and export paperless records; 4. Remote control and real-time observation of equipment status; 5. Temperature correction: the difference between the main control temperature and the sample temperature, and nonlinear correction shall be carried out throughout the sintering process. | |

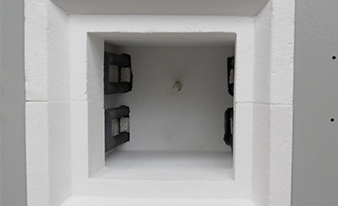

FURNACE DETAILS |
| ||

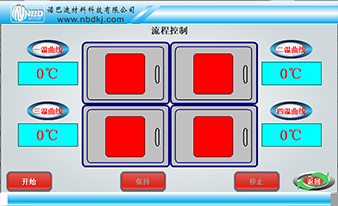

Process&Mechanical Control Interface |
| ||

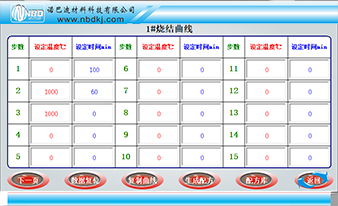

Process&Recipe Library Interface |
| ||
Service and Support | One year limited warranty with lifetime support (the warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts from the relevant products below). | ||
Disclaimer: the product introduction of the station (including product pictures, product descriptions, technical parameters, etc.) is for reference only. Due to untimely update, there may be some difference between the contents and the actual situation. Please contact our customer service personnel for confirmation. The information provided by this website does not constitute an offer or commitment, and NuCompany will improve and modify any information on the website from time to time without notice.
Material Science Research
Synthesis of new materials: studying the synthesis process and physical and chemical properties of new materials by accurately controlling the temperature gradient and atmosphere conditions.
Metal heat treatment: carry out heat treatment processes such as annealing and quenching for metal materials to improve their physical properties.
Chemical engineering (CE)
Catalyst preparation: prepare the high-performance catalyst by using the multi-temperature zone gradient heating technology, and optimize its catalytic activity and selectivity.
Chemical reaction research: studying the chemical reaction kinetics and mechanism under high temperature, especially in corrosive gas environment.
Electronic and Semiconductor
Wafer processing: annealing, oxide growth and other process steps of semiconductor wafer to improve device performance.
Electronic component packaging: remove the flux residue after welding the electronic component to ensure the product quality.
Energy sector
Battery material preparation: high-performance battery materials (such as lithium ion battery positive and negative electrode materials) shall be produced, and high temperature treatment shall be carried out in an oxygen free environment.
Metallurgical industry
Metal smelting: It is used in small-scale metal smelting experiments to explore new alloy formulas and their properties.
Refining and purification: refining the metal under high temperature and specific atmosphere to remove impurities and improve purity.
